At its core, Android Architecture is the structured design that allows the operating system and apps to work together such that the device using it runs smoothly. It defines how the different components of Android Architecture interact with each other and with the hardware, ensuring performance, stability, and scalability across millions of devices.
This focuses on how individual apps are structured on top of the operating system. App architecture guides developers in organizing code, managing data, and creating user interfaces that are maintainable, scalable, and easy to test. It makes the app features even easier to update and extend without breaking existing features. Popular patterns such as MVC, MVP, and MVVM are commonly used to ensure clean separation of concerns within apps.
Understanding both OS and app architecture provides a complete view of how Android supports billions of devices while enabling developers to create high-performing and reliable applications.
Android OS architecture is more than just a technical plan for the system. It directly affects how well apps work, how easily they can grow, and how safe they are.

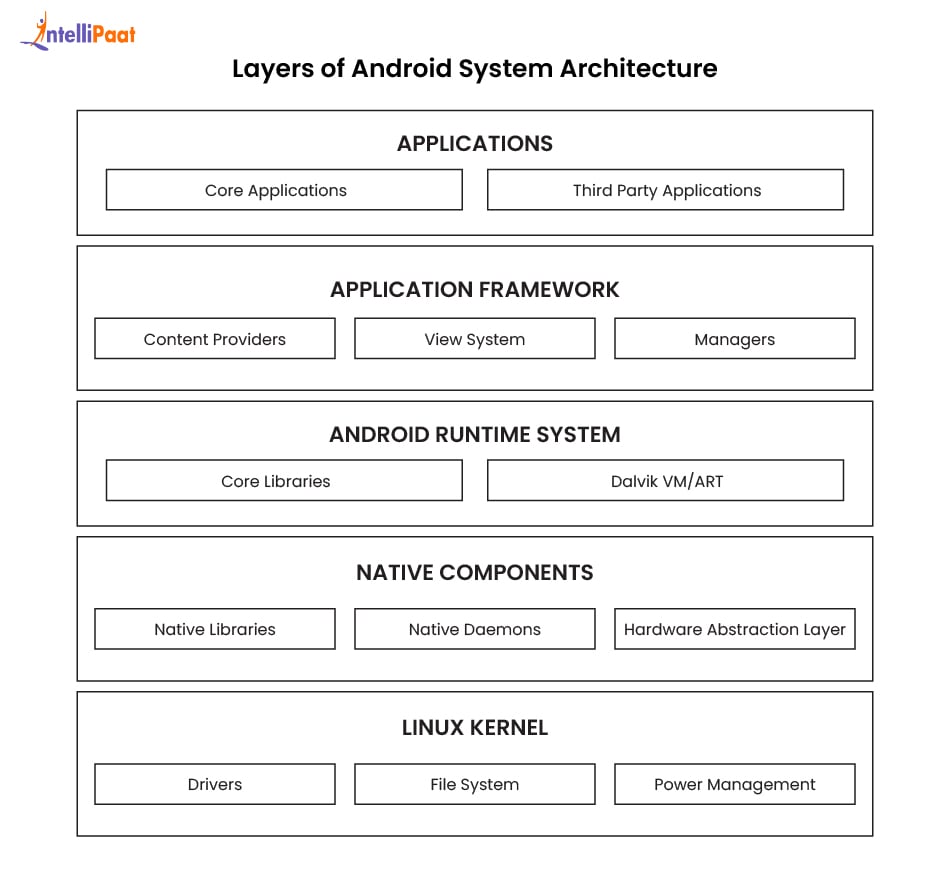

Layers of Android System Architecture

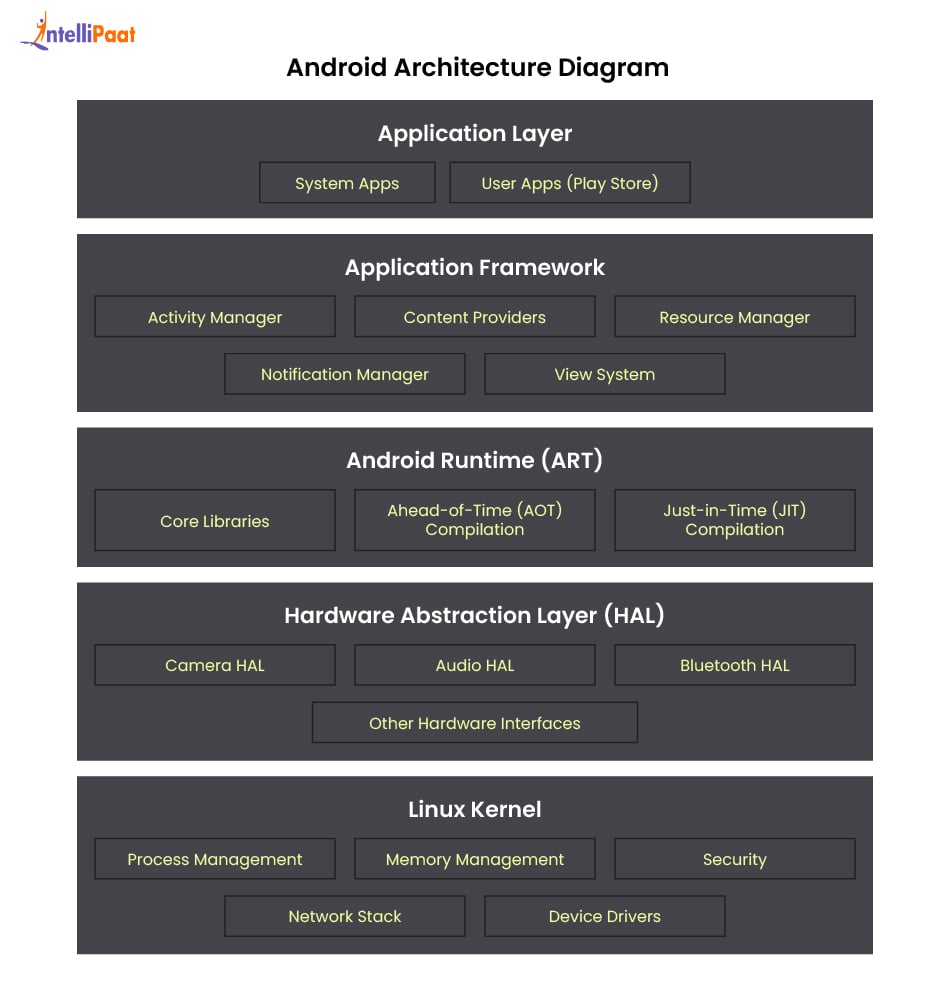

Android Architecture is built in layers that work together to make your apps run smoothly and efficiently on millions of devices. Each layer has a specific role, from managing hardware to displaying content on your screen. Let’s break down the architecture and working of android:

1. Linux Kernel
At the bottom of this Architecture is the Linux Kernel, the foundation of the Android operating system. It handles essential tasks like memory management, process management, security, and multitasking. The kernel also manages device drivers for hardware like cameras, displays, audio, Bluetooth, and more.
The Linux Kernel ensures that all higher layers can work without interfering with each other. Over the years, Android has evolved alongside the Linux Kernel, with versions improving performance and security.
Key Features:
- Memory management for efficient app performance
- Process management for multitasking
- Network stack for smooth connectivity
- Security to protect apps and user data
2. Hardware Abstraction Layer (HAL)
Above the Linux Kernel is the Hardware Abstraction Layer (HAL). HAL acts as a bridge between the Android system and the device hardware. It allows the Android Framework to communicate with hardware drivers without worrying about the hardware details.
By using HAL, Android developers can create apps that work across multiple devices without rewriting code for each type of hardware.
3. Android Runtime (ART)
The Android Runtime (ART) is where Android applications actually run. ART replaced the older Dalvik Virtual Machine (DVM) to improve performance, battery life, and memory efficiency.
ART converts app code into a format that your device’s processor can read quickly, using Ahead-of-Time (AOT) compilation. It also works with core libraries that give developers tools to create apps in Java or Kotlin.
Why ART matters:
- Runs apps efficiently across devices
- Reduces memory use and improves speed
- Handles multiple app processes without slowing down the device
4. Application Framework
On top of the runtime is the Application Framework, which provides developers with APIs and services to build powerful Android apps. This layer includes tools to manage app resources, notifications, and the user interface.
Important components include:
- Activity Manager: Controls app lifecycle and navigation
- Content Providers: Share data between apps securely
- Resource Manager: Access layout, images, and strings
- Notification Manager: Alerts users about app events
- View System: Base for UI components like buttons, lists, and menus
The framework also includes HAL support, letting apps interact with hardware safely and efficiently.
5. Application Layer
At the top is the Application Layer, where all your apps live. This includes both pre-installed apps like Contacts, Clock, and Camera, as well as apps downloaded from the Play Store.
Applications use the Android Framework and Runtime to perform tasks like making calls, browsing the web, or playing media. By following good Android App Architecture patterns like MVC, MVP, or MVVM, developers create apps that are scalable, maintainable, and secure.
Examples of apps in this layer:
- SMS and Dialer apps
- Web browsers and Media players
- Games and Social apps
- Productivity tools like Calculators and Notes
Why These Layers Matter
The layered structure of this architecture allows apps to perform well on different devices and screen sizes. It makes maintenance easier, lets developers scale apps without breaking them, and keeps apps secure and stable.
By understanding these layers, you get a clear picture of how Android Architecture works, from the Linux Kernel up to user-facing applications.
How the Android Runtime (ART) Boosts Performance
The Android Runtime (ART) is a core part of the Android Platform Architecture that makes apps run faster and smoother. It replaced the older Dalvik Virtual Machine (DVM) to improve performance, battery life, and memory usage. ART works closely with the Linux Kernel and Android Framework to execute apps efficiently across all devices. Understanding ART is key for developers aiming to create apps that take full advantage of Android’s layered architecture, from the Linux Kernel to the Application Layer.
AOT vs. JIT Compilation
ART uses two types of compilation to run Android apps:
Ahead-of-Time (AOT) Compilation
ART converts the app’s bytecode into native machine code when the app is installed. This means the app is ready to run directly on the device’s processor without waiting for on-the-fly compilation. The result is faster app startup, smoother performance, and lower battery consumption.
Just-in-Time (JIT) Compilation
ART can also compile parts of the code while the app is running. This helps apps adapt to how users interact with them and allows dynamic optimization for frequently used features.
By combining AOT and JIT, ART achieves a balance between speed, efficiency, and flexibility in Android apps.
Why ART Replaced Dalvik
Dalvik worked well in early Android devices but had limitations in modern smartphones:
- Slower app startup
- Higher memory usage
- Limited support for multiple app instances
ART solved these problems by precompiling code and using optimized core libraries. Today, ART supports all Android applications, letting developers focus on building scalable and maintainable apps without worrying about performance issues.
Benefits of ART in Android Architecture
- Faster app launch and smooth operation
- Better battery management
- Reduced memory usage
- Reliable performance across devices
Core Framework Components Explained
The Application Framework is a key layer in Android Architecture that sits above the Android Runtime (ART) and platform libraries. It provides Android developers with ready-to-use tools, classes, and services to build apps that are scalable, maintainable, and efficient. By using this framework, developers do not need to handle low-level system details, letting them focus on creating smooth user experiences.
Here’s a closer look at the core components of the Android Application Framework:
Activities and Services
Activities are the building blocks of any Android app interface. Each screen in an app is usually represented by an activity. It manages user interactions, displays UI elements, and communicates with other components.
Services run in the background without a user interface. They handle tasks like playing music, syncing data, or processing notifications, ensuring apps continue to function even when the user switches screens.
Content Providers and Broadcast Receivers
Content Providers allow apps to share data securely between each other. For example, a contacts app can share contact information with a messaging app through a content provider.
Broadcast Receivers let apps listen for system-wide or app-specific messages. They can respond to events like device charging, network connectivity changes, or incoming messages, making apps more interactive and responsive.
UI Elements and Managers
The View System manages all the visual components of an app, including buttons, text fields, images, and lists. It ensures user interactions are captured and handled smoothly.
Other managers in the framework include:
- Activity Manager – Controls the lifecycle of activities and app states.
- Notification Manager – Handles notifications and alerts to keep users informed.
- Resource Manager – Provides access to non-code assets like layouts, strings, and images.
- Window Manager – Manages how content is displayed on the screen and handles overlays.
Together, these components form the backbone of Android Application Architecture, making it easier to develop high-quality, reliable apps that work across millions of devices.

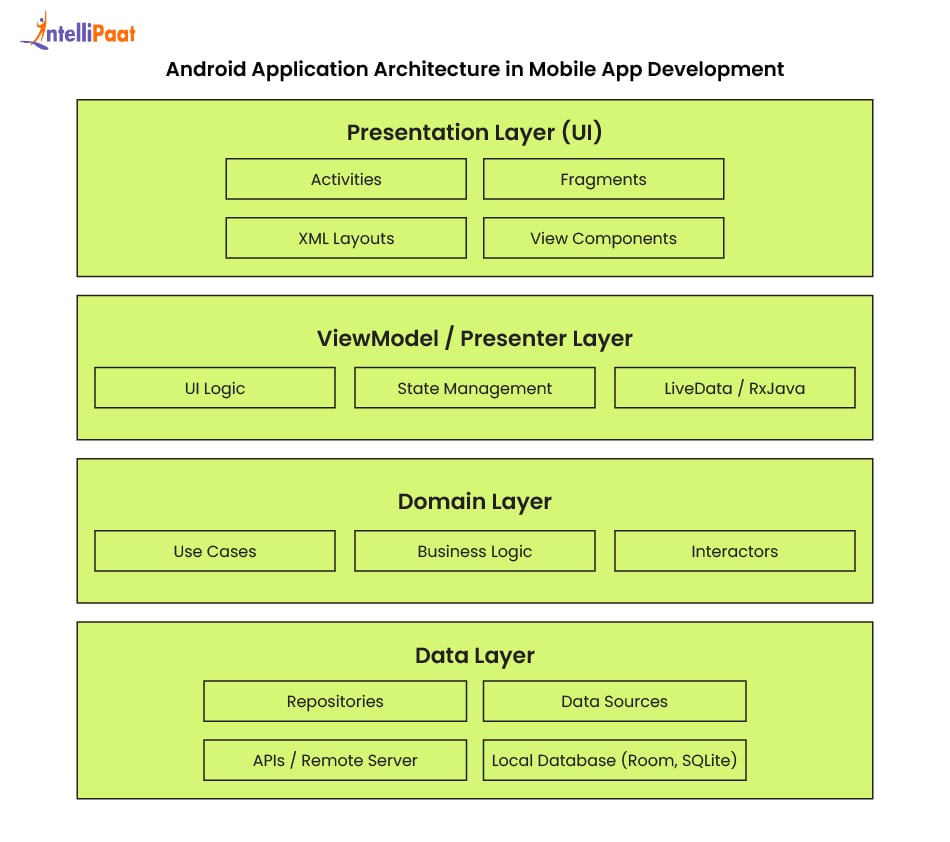

App Architecture Patterns for Developers
When building Android applications, the way you structure your code is just as important as the features your app offers. A well-organized Android application architecture helps developers manage complexity, reduce bugs, and implement updates faster. It also makes applications easier to scale, maintain, and test.
In Android development, responsibilities are often separated between the UI layer, business logic, and data layer. This separation ensures the app runs smoothly and changes in one part do not break other sections. Following a proper app architecture also improves performance, maintainability, and scalability.
Developers commonly use patterns like MVC, MVP, MVVM, and Clean Architecture to achieve this.
- MVC (Model-View-Controller) splits an app into three parts. The model handles data and logic, the view manages the user interface, and the controller processes input. While this pattern is simple, Android activities and fragments sometimes mix responsibilities, which can make code harder to manage in larger projects.
- MVP (Model-View-Presenter) moves app logic into a presenter. The view focuses on displaying information, while the presenter updates the UI and interacts with the model. This makes Android apps more testable, maintainable, and easier to update.
- MVVM (Model-View-ViewModel) adds a ViewModel layer between the UI and data. The ViewModel holds UI-related data and logic, letting the view focus on presentation. This pattern works well with LiveData and data binding, creating more reactive and error-resistant applications.
- Clean Architecture separates applications into layers such as presentation, domain, and data. Each layer operates independently, so changes in one layer do not affect others. This approach is ideal for large projects that require scalable and maintainable Android apps.
Choosing the right architecture pattern helps developers create Android applications that are efficient, reliable, and easy to maintain. It also supports Android software stack design best practices and helps deliver high-quality mobile experiences.
Conclusion
Android architecture is the backbone of the operating system and apps. From the Linux Kernel to ART, platform libraries, application framework, and applications, each layer keeps the system stable, fast, and secure.
Knowing Android architecture components and using good app architecture patterns like MVC, MVP, MVVM, or Clean Architecture helps developers build apps that are easy to maintain, update, and scale.
