A data dictionary in software engineering is an important tool that is used to define, organize, and manage the data elements in a system or a database. It works as a central repository that has detailed information about each data element. Whether you are designing a new application or just maintaining an already existing system, a data dictionary helps you to keep the system updated, consistent, efficient, and accurate. This article will help you understand what a data dictionary in software engineering is, its components, types, uses, benefits, limits, best practices, and how to create a data dictionary.
Table of Contents:
What is a Data Dictionary in Software Engineering?

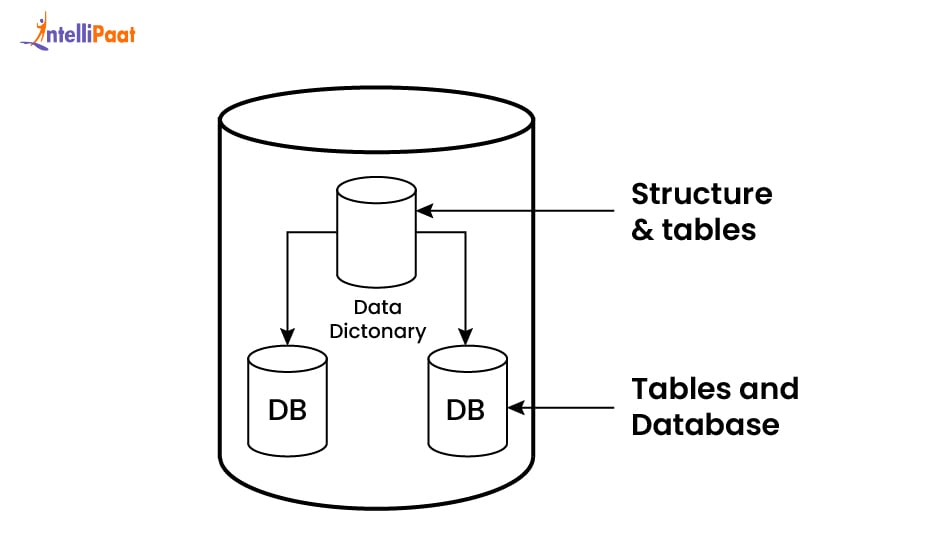

A data dictionary in software engineering is a central repository that stores detailed information about the data that is collected, used, or created by a system, database, or application. It basically provides detailed information to us about the data elements, such as data name, type, formats, default values, and relationships between them. It makes sure that the data is accurate, complete, consistent, efficient, and up-to-date in a database or system.
A data dictionary is a tool for data governance, data quality, a tool for software engineering, and communication. It can be documented manually or generated automatically from the database management system.
Components of Data Dictionary in Software Engineering
The components of a data dictionary in software engineering describe the structure and attributes of specific data elements used in a system. The components help ensure consistency, clarity, and accuracy during the process of developing software. Let us now discuss each of the components in detail.
- Data Elements: This component includes the basic attributes of each data item, such as its name, description, data type, length, default value, and any applicable constraints that define how the data should be stored.
- Data Structure: It refers to how the data elements are organized in the system, including the definition of tables, fields, primary and foreign keys, and indexes that are used to improve the query performance.
- Relationships: This component describes the connections and dependencies between different data elements or tables, such as one-to-one or many-to-many relationships and referential integrity rules.
- Usage and Access: This provides the details on how and where the data is used, who has access to it, the types of permissions, and how frequently the data is updated.
- Data Quality Metrics: It records the reliability and fitness of the data, such as measures of accuracy, completeness, consistency, and timeliness, to ensure data can be trusted for decision-making.
- Data Lineage: The data lineage tracks the end-to-end flow of data from its original source (where the data came from), through any changes made, and into its final destination or output. Data lineage provides context as to how data has evolved over time.
- Versioning and History: This discusses what version each data element definition is at and contains a history log telling what changed and who changed it, making this relevant for tracing and auditing purposes.
- Technical Metadata: The technical metadata tells us this type of information that would be system-related as follows: where the data resides, the format of the data (e.g., CSV, JSON, SQL, etc.), and the details associated with the database schema, etc.
- Business Metadata: The business metadata describes the business meaning and context of data as follows: business rules, business definitions, and how the data is incorporated through the relevant business processes, and reports.
Get Certified in Software Engineering and Boost Your Career.
Enroll for Online Certification Now!
Data Dictionary Notation Tables
In software engineering, a data dictionary notation table used by many users is a clear and effective means to document data elements. To provide clarity and understanding of the data elements, data dictionary notation tables should be used in a structured and readable manner. Data dictionary notation tables can be used in all stages of system analysis and design to describe and explain data elements. Here are some of the common notation tables in a data dictionary:
| Notation |
Meaning |
| X = a + b |
Data element X is composed of both “a” and b (both are required). |
| X = [a / b] |
Data element X contains either “a” or “b”, but not both. |
| X = [a] |
Data element “a” is optional within X (may appear zero or one time). |
| X = y[a] |
Data element “a” appears y or more times in X. |
| X = [a]z |
Data element “a” appears up to z times in X. |
| X = y[a]z |
Data element “a” appears between y and z times in X. |
| X = {a} |
Data element “a” can repeat zero or more times within X. |
| X = (a) |
Data element “a” is mandatory and must occur at least once in X. |
| X = [a] |
Data element “a” is optional and may occur zero or one time in X. |
| X = a* |
Data element “a” occurs zero or more times (same as {a}). |
| X = a+ |
Data element “a” occurs one or more times in X. |
Types of Data Dictionaries in Software Engineering

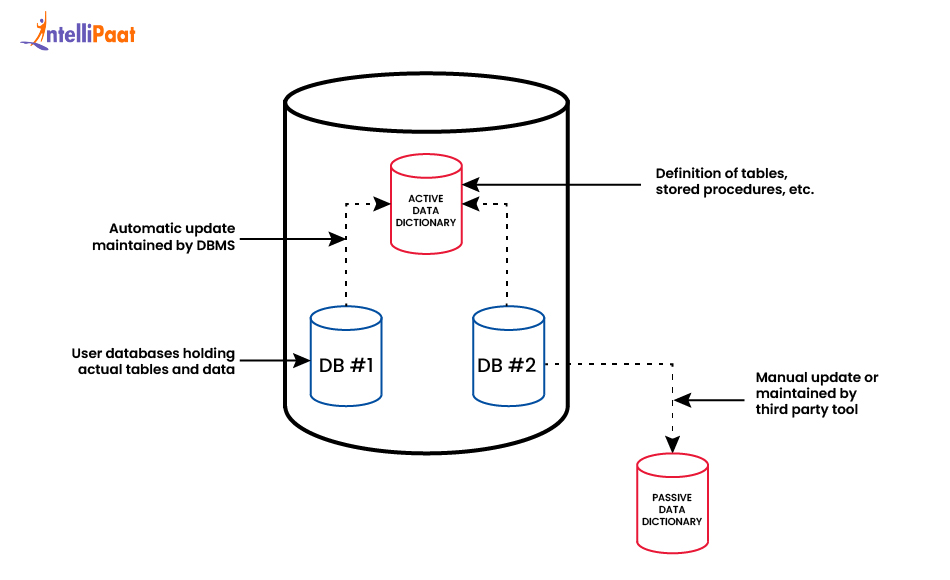

In general, the data dictionary in software engineering is categorized into two types: active and passive. Let’s discuss both in more detail.
1. Active Data Dictionary
An active data dictionary is a part of the database management system (DBMS) that is included with the DBMS and actively updates itself during changes to the database structure. An active data dictionary stores metadata, for example, table names, data types, constraints, and relationships. It updates the metadata at the same time as the changes are made, and in this way, the active data dictionary always reflects the current state of the database, which helps enforce rules, improve data integrity, and automate the system. An active data dictionary can be used by both the database developers and those who administer the system for accurate and up-to-date information because it is a true part of the DBMS and does not require any separate updating.
Example: In Oracle, MySQL, or SQL Server, when you create a new table or alter a column, the DBMS automatically updates its internal metadata tables (data dictionary), which makes it active.
2. Passive Data Dictionary
A passive data dictionary is a metadata repository that is maintained manually or updated through batch processes, rather than being automatically synced with the database system. It is used mainly for documentation and reference purposes. Unlike an active dictionary, it does not show the real-time changes that are made to the database schema. A passive dictionary is often created using external tools like spreadsheets or documents. It needs regular updates to stay accurate and up-to-date, and if it is neglected can become outdated.
Example: An Excel sheet or Word document listing table names, column names, data types, and descriptions for use in a system design document or data governance report
How to Create a Data Dictionary?
To create a data dictionary, you have to follow these steps, which include identifying, organizing, and documenting all the important elements used in a system.
Step 1: Define the Scope
At first, you must decide which system, database, or module will be used to create a dictionary.
Step 2: Identify the Data Elements
Then, you should make lists of the data elements from your system or database, and collect the information about them in detail. This means that you have to identify their name, data type, source, and other important information.
Now, you have to document the information using a spreadsheet or a tool to organize the data elements row-wise with attribute columns.
Step 4: Review and Validate
After the documentation, make sure that the information is reviewed by the stakeholders, developers, and analysts for accuracy and completeness.
Step 5: Update Regularly
Now, your dictionary is created, and you have to keep it up-to-date as the system or database changes.
Get 100% Hike!
Master Most in Demand Skills Now!
Uses of Data Dictionary in Software Engineering
- A data dictionary is used for the centralized documentation of all the data elements that are used in the system.
- It is used to improve the communication between developers, analysts, testers, and stakeholders.
- It is used in defining the structure, entities, and relationships at the time of system modeling.
- A data dictionary is used to promote a uniform naming convention and usage of data across the modules to maintain data consistency.
- It is also used in designing the database by creating normalized tables, keys, and data relationships accurately.
- A data dictionary serves as a tool for data governance, quality assurance, software engineering, and effective communication.
- It simplifies future modifications by providing a clear reference to the existing data elements.
Benefits of Using a Data Dictionary in Software Engineering
- Improves the Understanding of Data: A data dictionary provides clear context for each data element, which makes it easier for the stakeholders to understand.
- Maintains the Consistency of Data: It uses the data naming convention, types, and formats across the system to reduce errors, so that the data can be consistent.
- Improves the Communication: It helps to improve the communication between developers, analysts, testers, and stakeholders for accuracy.
- Helps to Enhance the System Design: A data dictionary also helps in planning and designing better databases.
- Facilitates Data Quality: It documents the important constraints and rules to maintain the accuracy, completeness, and integrity of the data.
- Provides Reusability: The data dictionary also helps to reuse the data elements across multiple systems and modules.
- Speeds Up the Development: It provides a quick reference for data-related questions by reducing the development and debugging time.
Limitations of Data Dictionary in Software Engineering
- Implementation and Maintenance Cost: Creating and maintaining a data dictionary is costly because it needs significant time, money, and effort.
- Can Get Outdated: If the data dictionary is not maintained or updated regularly, it will become outdated.
- High Initial Setup Time: It is very time-consuming to create a complete data dictionary from scratch.
- Can be Complex: A highly technical dictionary can be complex and very difficult to understand for non-technical users.
- Needs Governance: It needs proper data management policies to ensure accuracy and relevance over time.
Best Practices for Maintaining a Data Dictionary
- Keep the data dictionary updated regularly after any schema, field, or rule change.
- Always use consistent and meaningful names for data elements across the system.
- You should store the data dictionary in a shared and accessible location.
- Always include the important metadata such as name, type, length, source, and usage.
- Collaborate with the developers and stakeholders to make sure that there is both business relevance and technical accuracy.
- You must conduct regular reviews to make sure that the dictionary remains aligned with the current system architecture.
- Use simple language and clear formatting to make the dictionary understandable for all users.
Conclusion
A data dictionary in software engineering is an important tool that provides detailed information about all the data elements that are used in the system. A data dictionary has a number of benefits, such as improving communication, ensuring consistency, enhancing data quality, and supporting efficient development and maintenance. Also, it needs to keep the data dictionary updated by following the best practices, so that it works efficiently for both technical and business teams through the software development lifecycle.
Data Dictionaries in Software Engineering – FAQs
Q1. What is a data dictionary in software engineering?
A data dictionary in software engineering is a centralized repository that describes data elements, their attributes, and relationships used within a system or database.
Q2. What are the types of data dictionaries?
The two main types are Active (automatically updated by the DBMS) and Passive (manually maintained).
Q3. Why is a data dictionary important?
A data dictionary ensures data consistency, improves communication among teams, and supports system design and documentation.
Q4. What are the common components of a data dictionary?
The common components of a data dictionary include data element names, types, lengths, descriptions, constraints, relationships, and data lineage.
Q5. How do I maintain a data dictionary effectively?
To maintain a data dictionary, you should use standardized naming, keep it updated, connect with both technical and business users, and automate updates where possible.
