Are you preparing for a digital electronics interview? Expect questions from number systems and logic gates to flip-flops, multiplexers, and timing constraints. Recruiters are looking for someone who understands the fundamentals of digital systems and how they can put that understanding to work on practical problems.
In this blog, we will analyse 50 of the most crucial and commonly asked digital electronics interview questions, categorised by beginner, intermediate, and advanced levels.
Table of Content
Foundational Digital Electronics Interview Questions
These digital electronics interview questions are critical for any interview as they focus on testing your understanding of fundamentals like number systems, logic gates, Boolean algebra, K-maps and circuit design. If you are starting out or preparing for a junior position, consider these a must. Ensuring their mastery will enable you to take on more advanced topics with confidence. Let’s go through them one after the other.
1. What is the difference between analog and digital electronics?
Analog electronics focus on continuous signals that can have any value within a specific range, such as audio waveforms or temperature sensors that change gradually over time.
Digital electronics work with discrete signals, most commonly in binary, 0s and 1s. These are recommended in computers and logic circuits because they are more resistant to interference, easier to store, and more straightforward to design with complex logic gates.
2. Explain binary, octal, decimal, and hexadecimal number systems with examples.
- Digits 0 through 1 make up binary, or base 2. Example: 1011₂ = 11 in decimal.
- Digits 0 through 7 make up octal, or base 8. Example: 17₈ = 15 in decimal.
- Decimal base 10 is the standard human counting system using digits 0-9.
- Hexadecimal, or base 16, uses 0-9 and letters A-F. Example: 1A₁₆ = 26 in decimal.
In digital electronics, these systems are important because computers speak in binary. Moreover, octal and hexadecimal simplify long binary strings.
3. What are logic gates? Describe AND, OR, and NOT gates with truth tables.
The building blocks of digital circuits are logic gates. They use logic rules to convert binary inputs into binary outputs.
- AND gate: When both inputs are 1, the output is only 1.
A |
B |
A AND B |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
0 |
0 |
1 |
1 |
1 |
- OR gate: When at least one input is 1, the output is 1.
A |
B |
A OR B |
0 |
0 |
0 |
0 |
1 |
1 |
1 |
0 |
1 |
1 |
1 |
1 |
- NOT gate: Output is the inverse of the input.
4. What are universal gates? Why are NAND and NOR called universal gates?
All other basic gates (AND, OR, NOT) can be created using universal gates, which are logic gates. Both NAND and NOR gates are considered universal because:
- You can construct NOT, AND, OR, XOR, and XNOR using just NAND gates or NOR gates.
- They’re popular for integrated circuit production because of their flexibility and low cost.
For instance, NOT gates can be built by coupling the inputs of NAND gates.
5. Define Boolean algebra and list its basic laws.
Boolean algebra is a mathematical framework designed to study and streamline digital systems. It uses binary values and operations such as AND (·), OR (+), and NOT (‾) symbols.
Basic Laws:
- Identity Laws: A + 0 = A, A · 1 = A
- Null Laws: A + 1 = 1, A · 0 = 0
- Idempotent Laws: A + A = A, A · A = A
- Complement Laws: A + A‾ = 1, A · A‾ = 0
- Commutative Laws: A + B = B + A, A · B = B · A
- Associative Laws: (A + B) + C = A + (B + C)
- Distributive Laws: A · (B + C) = A · B + A · C
These principles help simplify the complicated Boolean expressions alongside optimising digital designs.
6. What is a Karnaugh Map (K-Map) and why is it used?
A Karnaugh Map simplifies Boolean expressions visually. It organises the values of a truth table in a grid format to reveal certain patterns, for example, clusters of 1s that indicate simplified expressions.
What makes it especially helpful:
- The logic functions can be simplified without applying Boolean algebra laws.
- They improve circuit performance by lowering the gate count.
- Most beneficial with 2 to 5 variables; after that, the Quine-McCluskey method or dedicated software becomes preferable.
7. Define minterms and maxterms with an example.
- Minterm: Each variable of a function appears in true or complemented form. A product (AND) of all variables is 1 for one specific combination of inputs.
Example: For A, B → minterm m₁ = A‾B.
- Maxterm: A sum (OR) of all variables. It is 0 for one specific input combination.
Example: For A, B → maxterm M₁ = A + B‾.
8. What is the difference between a half adder and a full adder?
A half adder sums two bits and generates carry and sum outputs, but it does not consider any carried values from previous operations.
- Inputs: A, B
- Outputs: Sum = A ⊕ B, Carry = A · B
A full adder processes three bits (A, B, Cin) and generates Sum and Carry-out outputs.
- Sum = A ⊕ B ⊕ Cin
- Carry = (A · B) + (Cin · (A ⊕ B))
To construct multi-bit binary adders, full adders are employed.
9. Explain the concept of combinational circuits with examples.
Combinational circuits are logic circuits where the outputs depend solely on current inputs, with no regard for past inputs or states.
Examples:
- Adders (half, full)
- Multiplexers
- Encoders/Decoders
- Comparators
These circuits do not contain memory elements, which sets them apart from sequential circuits. They measure speed and simplicity and are best for arithmetic or decision-making logic.
10. What is the significance of fan-in and fan-out in digital circuits?
- Fan-in refers to the maximum inputs a logic gate can accommodate. A 3-input AND gate illustrates this with a fan-in of 3.
- Fan-out defines the maximum number of gate inputs that can be driven by a single output without affecting the performance.
Significance:
- High fan-in gates can experience slowdown due to increased capacitance.
- Beyond the fan-out limits, signal levels may deteriorate, compromising timing and logic precision.
Designing dependable circuits that don’t deteriorate under load is made easier with an understanding of them.
Digital Electronics Basics Interview Questions
This section is already more than just definitions. These are the questions where most technical interviews begin to get intense. You should expect to be questioned on your understanding of memory, timing, and control logic in digital systems. So, let’s take them one at a time.
11. What is the difference between combinational and sequential circuits?
Combinational circuits only use the current inputs to determine their outputs. There is no memory required because the output changes quickly as the input is changed.
Adders, multiplexers, encoders, and logic gates are a few examples.
Both current inputs and previous states are used by sequential circuits to generate their outputs. They consist of memory components such as flip-flops and latches. A clock is used to synchronise the system’s state changes. Counters, shift registers, and flip-flops are a few examples.
To summarise:
- Combinational = stateless logic
- Sequential = logic + memory + timing
12. What are latches? How do they differ from flip-flops?
Latches are level-triggered memory devices where the enable signal is active and permits a response. While active, its output can change many times.
A flip-flop is edge-triggered, which means it captures the input only at the rising or falling edge of the clock, making it more stable and reliable in synchronous systems.
Feature |
Latch |
Flip-Flop |
Trigger type |
Level-sensitive |
Edge-sensitive |
Control line |
Enable |
Clock |
Stability |
May change frequently |
Changes only at the clock edge |
Flip-flops are preferred by designers in timed systems in order to prevent timing problems and glitches.
13. Describe the working of SR flip-flop.
Basic memory components, such as an SR flip-flop or a Set-Reset flip-flop, are used to store single bits of data.
It has two inputs: S and R.
- Set (S) gives the output Q equal to 1
- Reset (R) makes Q equal to 0
Truth table:
S |
R |
Q (next state) |
0 |
0 |
No change |
0 |
1 |
0 |
1 |
0 |
1 |
1 |
1 |
Invalid state |
Uncertainty results from the invalid state (both set and reset active). Because of this, SR flip-flops are frequently converted into D or JK flip-flops rather than being utilised in isolation.
14. What is a D flip-flop, and how is it used?
A D (Data) flip-flop is a clocked memory element that transfers the D (Data) input to the Q output on a specified clock edge (either rising or falling).
How it functions:
- For each clock trigger, the output Q matches the input D.
- Data is “latched”, or captured, and retained until the subsequent clock edge.
Truth table:
Clock Edge |
D |
Q (next) |
↑ |
0 |
0 |
↑ |
1 |
1 |
Applications:
- Registers
- Shift registers
- Data synchronization
- Debouncing mechanical switches
15. Explain setup time and hold time with diagrams.
The following aspects are essential during the design of digital circuits:
- Set-up time: The time that the data input should be stable before the active clock edge.
- Hold time: The time the data input should stabilise after the clock edge has passed.
Failure to follow these policies and the flip-flop may lead to a metastable state, operating in an undefined state, and producing unstable output. Now, picture a timeline where the data input remains steady before the clock edge strikes and continues to do so afterwards.

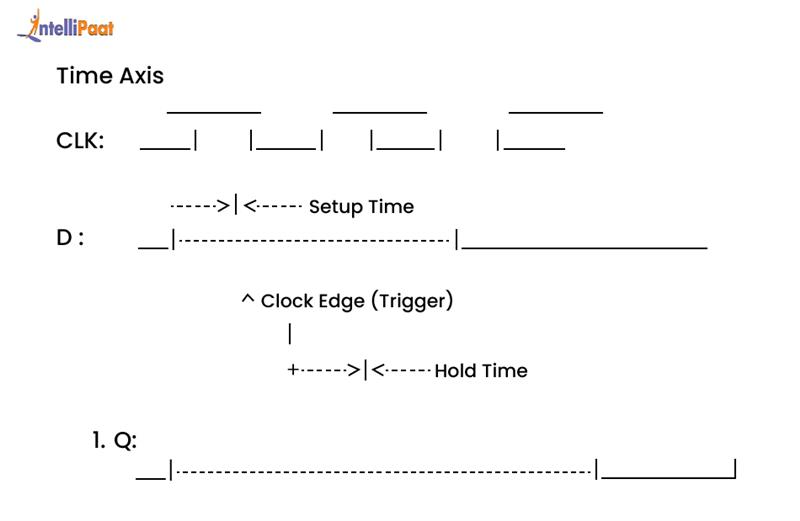

Diagram: Setup Time and Hold Time
In the above diagram:
- A rise in the clock (CLK) occurs at the trigger edge.
- Setup time is the least amount of time that Data (D) must remain stable before the clock edge.
- Hold Time is the minimal amount of time that Data (D) must remain stable following the clock edge.
- The data is captured by Q (output), which stays constant.
16. What is a race-around condition? How is it avoided?
A race-around condition occurs in a JK flip-flop with both inputs set to one if the clock pulse lasts too long. The output toggles rapidly within the duration of the pulse.
This is observed because the feedback output continuously alters the input.
How can it be avoided?
- Replace level-triggered JK flip-flops with edge-triggered ones.
- Employ a master-slave JK flip-flop configuration in which the first stage captures information while the second stage refreshes the output.
- Replace with T flip-flops to ensure expected toggling.
17. Describe synchronous and asynchronous counters.
A counter is a sequential circuit used to count pulses.
- Synchronous Counter: All flip-flops share a common clock signal that triggers them simultaneously. Each stage’s output is in unison. It is fast and reliable.
- Asynchronous Counter or Ripple Counter: One flip-flop’s output serves as the clock input for the subsequent flip-flop. It is slow due to the accumulation of propagation delays.
Type |
Speed |
Complexity |
Delay |
Synchronous |
High |
More logic |
Minimal |
Asynchronous |
Low |
Simple |
Significant |
In precision-timed systems, synchronous counters are favoured.
18. What is the use of a multiplexer in digital systems?
A multiplexer (MUX) operates similarly to a digital switch. It chooses one among numerous inputs to forward to the output based on the selected lines.
For instance, a 4:1 MUX has 4 inputs (D0–D3), 2 select lines (S0 and S1), and 1 output.
Why it’s important
- Reduces the number of wires
- Allows effective data routing
- Used in ALUs, CPUs, during memory accesses, and in control units.
In logic design, MUXes can also be employed to realise a Boolean expression.
19. What’s the difference between an encoder and a decoder?
Both have applications in data representation and control:
- Encoder: Converts 2ⁿ inputs to n-bit output. Compresses multiple input lines into fewer bits.
Example: 8-to-3 encoder
- Decoder: Converts n input bits to 2ⁿ outputs. Expands binary codes to select one output line from many.
Example: 3-to-8 decoder Use cases:
- Encoders: Detecting keys on keyboards, compressing signals.
- Decoders: Decoding memory addresses, controlling 7-segment displays.
20. Define active high and active low signals with examples.
The following concepts explain how a circuit reacts to a control signal:
- Active High: When the control signal is logic 1 (HIGH), the circuit comes on.
For instance, when the input equals 1, an LED illuminates.
- Active Low: When the control signal is logic 0 (LOW), the circuit comes on.
Frequently symbolised by a bar above the name (such as RESET).
21. How is a 4:1 multiplexer implemented using logic gates?
A 4:1 multiplexer uses two select lines (S₀, S₁) to transmit one of the four input lines (D₀ to D₃) to a single output.
Implementation Logic: Y = D₀·S̅₁·S̅₀ + D₁·S̅₁·S₀ + D₂·S₁·S̅₀ + D₃·S₁·S₀
Use of logic gates:
- 4 AND gates, one for every condition in the input
- 2 NOT gates (to create complements of select lines)
- To merge the outputs, use 1 OR gate.
Use case: Data signal routing in memory systems, CPUs, and ALUs.
22. What is a demultiplexer? Where is it used?
A demultiplexer (DEMUX) serves as the reverse function of a multiplexer. It has a single data input, which it channels to one out of several outputs as dictated by selector lines.
A 1-to-4 DEMUX uses:
- 1 input line (D)
- 2 selector lines (S₀, S₁)
- 4 output lines (Y₀ to Y₃)
Use cases:
- Decoding memory addresses
- Distributing data
- Converting serial data to parallel form
23. Explain the working of a full adder circuit with its truth table.
Adding three 1-bit inputs, A, B, and Carry-in (Cin), is done by a full adder.
It outputs:
Logic expressions:
- Sum = A ⊕ B ⊕ Cin
- Cout = (A·B) + (Cin·(A ⊕ B))
Truth table:
A |
B |
Cin |
Sum |
Cout |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
1 |
0 |
0 |
1 |
0 |
1 |
0 |
0 |
1 |
1 |
0 |
1 |
1 |
0 |
0 |
1 |
0 |
1 |
0 |
1 |
0 |
1 |
1 |
1 |
0 |
0 |
1 |
1 |
1 |
1 |
1 |
1 |
24. What are digital IC characteristics like propagation delay, rise time, and fall time?
The efficiency with which a digital IC operates is determined by speed and reliability. These three traits define compute speed and trust in a digital integrated circuit:
- Propagation delay (tpd): Time for a change in input to show at output; lower is better.
- Rise time (tr): Duration for a signal to transition from LOW to HIGH (10% to 90% voltage).
- Fall time (tf): Duration for a signal to drop from HIGH (90%) to LOW (10%) voltage.
They affect:
- Maximum clock frequency
- Timing margins
- Signal synchronization in dependencies of time-critical systems, for example, VLSI, microcontrollers
25. Compare TTL and CMOS logic families.
Parameter |
TTL |
CMOS |
Full Form |
Transistor-Transistor Logic |
Complementary MOSFET |
Technology |
Bipolar Junction Transistors |
NMOS and PMOS transistors |
Power Usage |
Higher |
Lower (especially when idle) |
Speed |
High |
Moderate (modern CMOS = fast) |
Noise Immunity |
Low |
Moderate (modern CMOS = fast) |
Operating Range |
Fixed (5V) |
Flexible (3V to 15V) |
TTL technology performs better in durability and responsiveness but has increased power use.
CMOS technology is preferred in systems where the power supply is a battery and in systems with dense configurations.
26. What are tri-state buffers and where are they used?
A tri-state buffer is a logic device that has three states:
- Logic High (1)
- Logic Low (0)
- High Impedance (Z)
Why are they used?
- To permit unhindered sharing of a common bus by several devices
- The bus is only driven by one device at a time; the others stay in high-Z
Examples of use:
- Microprocessor data buses
- Memory interfaces
- Peripheral control systems
27. What’s the significance of the fan-out of a logic gate?
Fan-out measures the maximum number of inputs that a logic gate’s output can drive without degrading signal integrity. For instance, a gate with a fan-out of 10 is capable of driving 10 gate inputs. Exceeding fan-out:
- Reduces signal change speed
- Leads to the distortion of logic levels
- Increases energy consumption
Designers use buffers or repeaters when fan-out limitations are surpassed.
28. How is parity checking performed in digital systems?
A straightforward error-detection method used in memory and transmission is parity checking.
Even parity: Adds a parity bit so the total number of 1s is even.
Odd parity: Adds a parity bit so the total number of 1s is odd.
Example:
- Data = 1010 (two 1s)
- Even parity bit = 0 → 10100
- Odd parity bit = 1 → 10101
Used in:
- Identification of RAM errors (parity RAM)
- Data transfer via serial (UART)
- Protocols for networks
29. What is meant by the term “don’t care” condition in K-Maps?
A don’t care condition occurs when a certain input combination:
- It is impossible, given the constraints of a real-world system
- Or affecting a result whose final output is predetermined.
Karnaugh Maps mark them with X. By enabling more adaptable groupings to reduce Boolean formulations, they aid in the simplification of logic.
30. Explain the importance of clock signals in sequential circuits.
The clock signal acts like a metronome for digital circuits.
Key roles:
- Controls data flow timing
- Make sure state changes happen simultaneously across all parts
- Prevents glitches or other erratic outputs
Clock design matters in:
- CPU pipelines
- Memory timing
- Synchronous counters
- VLSI chip design
Parameters of the clock, such as duty cycle, frequency, jitter, and skew, need to be calibrated tightly together for dependable behaviour of the circuit.
Digital Electronics Intermediate Interview Questions
These questions examine knowledge of timing relationships, signal stability, and sequential control in a digital system. They often come up as system-level questions.
31. What is the function of a shift register? Describe its types.
A shift register is a data storage device that stores data and can shift the data left or right one bit for each clock pulse. A series of flip-flops connected in sequence form a shift register.
Function: Data storage, transfer, and manipulation.
Types:
- Serial-In Serial-Out (SISO) – Input and output one bit at a time.
- Serial-In Parallel-Out (SIPO) – Input one bit at a time, output all bits at once.
- Parallel-In Serial-Out (PISO) – Load all bits at once; shift out one by one.
- Parallel-In Parallel-Out (PIPO) – Input and output all bits together.
Applications include data buffering, serial-to-parallel conversion, counters, and I/O expansion.
32. Explain the difference between edge-triggered and level-triggered flip-flops.
Edge-triggered flip-flops will only change output on the rising or falling edge of a clock signal.
Level-triggered flip-flops (latches) operate as long as the clock (or enable) signal is at a certain level (HIGH or LOW) continuously.
Feature |
Edge-Triggered |
Level-Triggered |
Trigger Type |
Clock edge (↑ or ↓) |
Clock level (HIGH/LOW) |
Timing Sensitivity |
Precise |
Continuous |
Stability |
Higher |
Lower (glitches possible) |
33. What is a JK flip-flop? Explain its truth table and excitation table.
An SR flip-flop is improved with the JK flip-flop because it removes the undefined state that comes into play when both inputs are high.
Inputs: J (Set), K (Reset), Clock
Outputs: Q, Q̅
Truth Table:
J |
K |
CLK Edge |
Q(next) |
0 |
0 |
↑ |
No Change |
0 |
1 |
↑ |
0 |
1 |
0 |
↑ |
1 |
1 |
1 |
↑ |
Toggle |
The Excitation Table shows what J-K inputs are needed to move from Q (present) to Q (next):
Q (present) |
Q (next) |
J |
K |
0 |
0 |
0 |
X |
0 |
1 |
1 |
X |
1 |
0 |
X |
1 |
1 |
1 |
X |
0 |
34. Compare Mealy and Moore machines with examples.
There are two types of Finite State Machines (FSMs).
- Moore Machine: Output only relies on the present state.
- Mealy Machine: Output relies on the present state and input.
Feature |
Moore |
Mealy |
Output Change |
On state change |
Immediately with input |
Output Timing |
Synchronised |
Can be faster (more reactive) |
Complexity |
Simpler states |
Fewer states, complex logic |
Example:
Moore – Traffic light controller
Mealy – Keyboard debouncer (output is dependent on the current input)
35. What is metastability in flip-flops? How can it be avoided?
Metastability occurs when the setup or hold time is violated, causing the flip-flop to remain in an unstable state between logic 0 and 1.
Real-world example: Clock domain crossing (CDC) where signals from different clock domains arrive too close to the clock edge.
Ways to avoid metastability:
- Implement synchroniser chains (2 or more flip-flops in series).
- Use Gray code counters to limit multiple bit transitions.
- Extend clock-to-data margin.
While systems cannot completely avoid metastability, they can reduce the risk to near zero with effective design.
36. What is a ring counter? How is it implemented?
The output of the last flip-flop is connected to the first in a ring counter, a kind of circular shift register. In a ring counter with four bits:
- Begin with a 1000
- The 1:1000 → 0100 → 0010 → 0001 → 1000 is moved by clock cycles.
Execution:
- 4D flip-flops
- Set one bit to 1 and the others to 0.
- Data rotation is triggered by the clock.
Used in:
- Sequence Generators
- Timers
- Signals for control in digital systems
37. Explain how a digital comparator works.
Binary numbers A and B are compared using a digital comparator to confirm their equality or magnitude.
Outputs:
- A > B → High
- A < B → High
- A = B → High
For a 1-bit comparator:
- A = B → A̅·B̅ + A·B
- A > B → A·B̅
- A < B → A̅·B
Used in:
- Logic sorting
- Resolution of priorities
- Decoding memory addresses
- Multiple 1-bit comparators are stacked to create multi-bit comparators.
38. Describe the working of a priority encoder.
A priority encoder processes multiple inputs and generates a binary output corresponding to the highest-priority active input.
For instance, in a 4-input priority encoder, if both D₂ and D₀ are high, the output will indicate D₂, assuming D₂ takes precedence.
Output:
- The most active input represented in binary
- A “Valid” signal enabling flag is set when any input signal is active.
Use case:
- Deciding which request to serve first
- Data compression
- Resource arbitration
39. What are Schmitt triggers? Where are they used in digital circuits?
A Schmitt Trigger is a special type of comparator circuit with hysteresis. It has two distinct threshold voltages for rising and falling edges.
Why it matters:
- Removes noise and signal bouncing from inputs that change slowly or have an analog feel.
- Generates crisp digital pulses from noisy analog signals.
Used in:
- Signal conditioning
- Switch debouncing
- Pulse shaping
- Oscillator circuits
40. What is clock skew, and how does it affect digital circuit performance?
Clock skew is the difference in arrival time of a clock signal at different components, such as flip-flops, in a synchronous circuit. While the objective of the clock is to trigger all components at once, physical factors, such as wire length and routing delay, lead to timing errors.
Types:
- Positive Skew: Clock reaches A before B.
- Negative Skew: Clock reaches A after B.
Why it matters:
- Can result in setup or hold time violations
- Can result in inaccurate data latching
- Especially important in high-speed VLSI and processor design
Solutions:
- Balance paths with clock buffers and clock trees
- Perform timing analysis during circuit design
Digital Electronics Advanced Interview Questions
This part of the interview will require you to demonstrate your critical thinking and application skills as a digital designer. In addition, your understanding of digital logic will need to be exhibited in relation to how systems are integrated, considering timing, layout, noise, and circuit behavior.
41. What is setup and hold time violation? How is it resolved?
Setup and hold time violations occur when data is unstable, either too early or too late, around the clock edge in flip-flops.
Effects:
- Leads to metastable states
- Yields unpredictable output signals
- Can disrupt data streams and control logic
Solutions:
- Add delay buffers to fix timing misalignment
- Adjust clock skew
- Implement synchronizer flip-flops for asynchronous inputs
42. Explain the concept of clock gating and its role in power optimisation.
Clock gating turns off clock signals to particular sections of circuitry that are inactive. It is a dynamic power-saving mechanism. Instead of having to waste energy switching certain flip-flops on or off, gating logic halts clock transitions.
Used in:
- Microcontrollers
- System-on-Chips (SoCs)
- Low-power embedded systems
Warning: Ineffective circuit turn-off may result in clock glitches. Synthesis tools often manage this with verification.
43. What is a glitch in digital circuits, and how is it avoided?
A glitch is an unwanted brief interruption defined as a short pulse created by varying delays within combinational logic. Outputs may change temporarily, even if the inputs are correct logically, because of timing mismatches within signals.
Causes:
- Logic race conditions
- Bias in logic lines
Solutions:
- Implement synchronous logic.
- Introduce buffers or delay equalisation.
- Avoid logic hazards through appropriate K-map minimisation.
In precision-driven systems, even nanosecond intervals can lead to errors or false activations.
44. How are digital signals affected by crosstalk? How is it minimised?
Crosstalk refers to the undesirable coupling of signals between wires or traces that are adjacent to each other, particularly in high-speed PCBs and integrated circuits (IC) layouts. They induce voltage spikes or timing errors as a result of electromagnetic interference.
Minimisation techniques:
- Increase spacing between traces
- Ground shielding and guard traces can be implemented
- Routing signals through multiple layers
- Differential pair usage for specific signals (clock lines, etc.)
Crosstalk remains one of the most important issues in modern VLSI design, routing DDR memories, and high-speed data buses.
45. What are asynchronous FIFO buffers and where are they used?
An asynchronous FIFO (First-In, First-Out) buffer permits data exchange between two interfaces operating with distinct clock frequencies.
Problem: Metastability and data loss whilst moving between clock domains.
Proposed solutions:
- Employ dual-port RAM
- Use gray code counters for pointer management
- Synchronizers on control lines
Found in:
- Network interfaces
- SoC interconnects
- Systems with embedded components that operate on separate clocks
46. What is the difference between a PLA and a PAL?
Both PLA (Programmable Logic Array) and PAL (Programmable Array Logic) belong to a broader category of programmable logic devices.
Feature |
PLA |
PAL |
Programmable |
AND & OR arrays |
Only AND array |
Flexibility |
More flexible |
Faster, less flexible |
Cost |
Higher |
Lower |
Use: PLAs are employed in applications needing intensive logic customisation. PALs are better where time and expense are factors, as they are quicker and cheaper for predetermined logic structures.
47. What is a debounce circuit? Why is it required?
Mechanical switches are incapable of clean transitions and result in astonishingly poor performance. For example, mechanical switches take a few milliseconds to bounce when pressed, resulting in multiple digital system triggers.
To clean up this signal, a debounce circuit uses:
- SR latches
- Monostable multivibrators
- RC filters + Schmitt triggers
Used in:
- Keyboards
- User input buttons
- Industrial control panels
48. How does a barrel shifter work, and where is it used?
A barrel shifter is an example of a combinational circuit that can shift or rotate data bits in a single clock cycle.
It accomplishes the following using a cascade of multiplexers:
- Left and right logical shifts
- Arithmetic shifts
- Circular rotates
Used in:
- ALUs in processors
- Hardware for cryptography
- Floating-point processes
49. What is dynamic hazard, and how does it differ from static hazard?
- Static Hazard: Output changing briefly while idle is known as static change.
- Dynamic Hazard: Output changing too many times before coming to rest is known as dynamic change.
Static or dynamic change during a high-frequency cycle occurs when multiple logic propagation delays are present due to the circuitry’s speed.
Prevention:
- Balance gate paths
- Apply Karnaugh Map optimisation
- Implement asynchronous designs where possible
50. What is a carry lookahead adder, and why is it faster than a ripple carry adder?
In a ripple carry adder, the delay grows with the number of bits, as each bit has to wait for the carry signal to propagate (O(n) delay).
A carry lookahead adder improves the speed of addition by calculating the carry signals in parallel using generate (G) and propagate (P) logic.
Key formulas:
- Generate (G) = A · B
- Propagate (P) = A ⊕ B
- Carry-out = G + (P · Carry-in)
Used in: Advanced ALUs, CPUs, DSPs This approach minimises delay to O(log n) and enables faster operations.
Conclusion
Memorising formulas will not crack digital electronics interviews; logic puzzles under time constraints, timing orchestration, and applying fundamentals to designs take centre stage. For VLSI, embedded systems, or core electronics roles, these 50 questions will enable you to speak about digital systems fluently and confidently.
Intellipaat has a detailed guide for encoders in digital electronics. Diagrams, use cases, and real-world examples strengthen your concepts.
Keep learning. Keep building. The logic is yours to master
