JMeter Tutorial for Beginners


Ever wondered how apps like Flipkart are able to handle millions of users clicking “Buy now” during a Big Billion Day sale? This isn’t magic; it’s the benefits of performance testing in action. Without performance testing, even the most well-built applications can come crashing down when put under stress.

Now let’s get to the how of performance testing, i.e., Apache JMeter. Apache JMeter is a free, open-source, and beginner-friendly tool that allows QA testers to simulate real-world traffic scenarios, test system stability, and overall performance before the production build is shipped out to the end user.

In this JMeter tutorial, we’ll walk through how Apache JMeter works in practice: setting it up, building test plans, analyzing results, and even running distributed or CI/CD-based tests. Whether you’re just getting started with performance testing or refining your QA toolkit, this guide will help you get comfortable using Apache JMeter in real-world scenarios.

Table of Contents:

What is Performance Testing?

Performance testing helps you ensure that your application behaves as expected with more than one user. It goes well beyond simply verifying that your code runs; it quantifies both the stability and scalability of your application to ensure that the application does not experience crashes or unintended behavior (usually referred to as performance degradation) once deployed to the end user.

Key Metrics of Performance Testing:

  • Speed: What is the response time to the user?
  • Stability: Is it reliable with multiple users using it at the same time?
  • Scalability: Can it handle an increasing number of users when demand requires it?

One common mistake that most newbies make is waiting to perform performance testing until the end of the software development lifecycle. By then, the core problems in your code may be expensive, time-consuming, and even impossible to resolve. The worst-case scenario is that your application works perfectly fine for one user, but crashes and slows down when more users start to make requests. Now that you have an idea about what performance testing is and why we do it,  let’s explore Apache JMeter as a performance testing tool.

What is JMeter?

Apache JMeter is an open-source Java application created for testing the performance, load, and scalability of web applications, APIs, databases, and other services. It can create simulated conditions where many users access the same application at the same time. This will allow developers and QA engineers to collect information on response time, throughput, and server behavior under several conditions.

Originally built by Stefano Mazzocchi at the Apache Software Foundation, JMeter has become one of the most widely used performance testing tools in the world. JMeter has a quick learning curve, is flexible, and can be scaled for anything, from a small test to an enterprise application.

Some key features of JMeter:

  • Cross-platform: Operates on Windows or macOS / Linux
  • Easy-to-use GUI: For most tests, programming is not needed.
  • Extensible: Can be enhanced with plugins, custom scripts, and run in distributed mode.
  • Open-source: Whether you are an individual, a startup, or an enterprise, it is free to use.

Key Features of JMeter:

  • Simulate multiple user activities and high loads to verify scalability.
  • Monitor performance metrics like response time, throughput, and error rate.
  • Create complex test scenarios with thread groups, samplers, and assertions.
  • Create graphs and reports for visual analysis of system performance.
  • Add functionality through plug-ins and scripts to meet advanced needs.

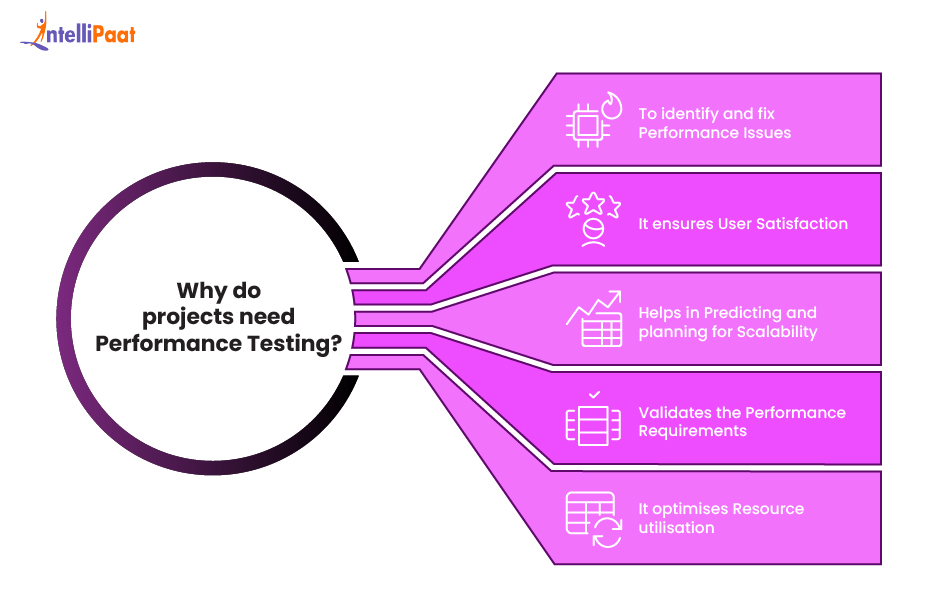

The Importance of Apache JMeter in Performance Testing:

In the current world of software development, performance issues can cost time, money, and damage reputations. JMeter helps teams:

  • Keep the system reliable and scalable across multiple platforms.
  • Discover performance bottlenecks before the application is deployed to the end-users.
  • Check whether a server has capacity and can handle the load.
  • Simulate realistic user traffic in staging or test environments.
why-do-we-need-performance-testing

Setting Up JMeter on Your System

Before running any test plans, you’ll need to install two things:

  1. Java – because JMeter runs on it
  2. Apache JMeter – the actual testing tool

Setting up JMeter is surprisingly straightforward if you’re using macOS or a Unix-based system. Here’s a walkthrough based on the exact steps I followed while installing it on my system, including a couple of practical shortcuts.

If you’re on Windows, we’ve already covered a detailed setup guide. You can follow it here:
👉 How to Download JMeter for Windows

How to Install JMeter on macOS and Linux (Step-by-Step)

If you’re using macOS or Linux, setting up JMeter takes just a few steps. Here’s how to do it cleanly, starting from Java, all the way to launching the JMeter GUI.

Step 1:  Install Java

JMeter requires Java to run.

  • macOS:
  • Linux (Debian/Ubuntu):

    Open Terminal and run:
sudo apt update
sudo apt install openjdk-11-jdk

Step 2. Verify Java Installation

After installing, check if Java is available:

java -version

You should see a version number. If not, restart your terminal or check your system’s PATH.

Step 3. Download and Extract JMeter

  • Visit Apache JMeter Downloads
  • Download the latest ZIP (macOS) or TGZ (Linux) archive
  • Extract it to a location like ~/JMeter/

    Linux example:
tar -xvzf apache-jmeter-x.x.tgz

Step 4. Launch JMeter

In your terminal, navigate to the bin folder inside the JMeter directory:

cd ~/JMeter/apache-jmeter-x.x/bin
./jmeter.sh

On macOS, you can also drag the jmeter.sh file into the terminal and press Enter.

*This works on macOS Finder if Terminal is already open

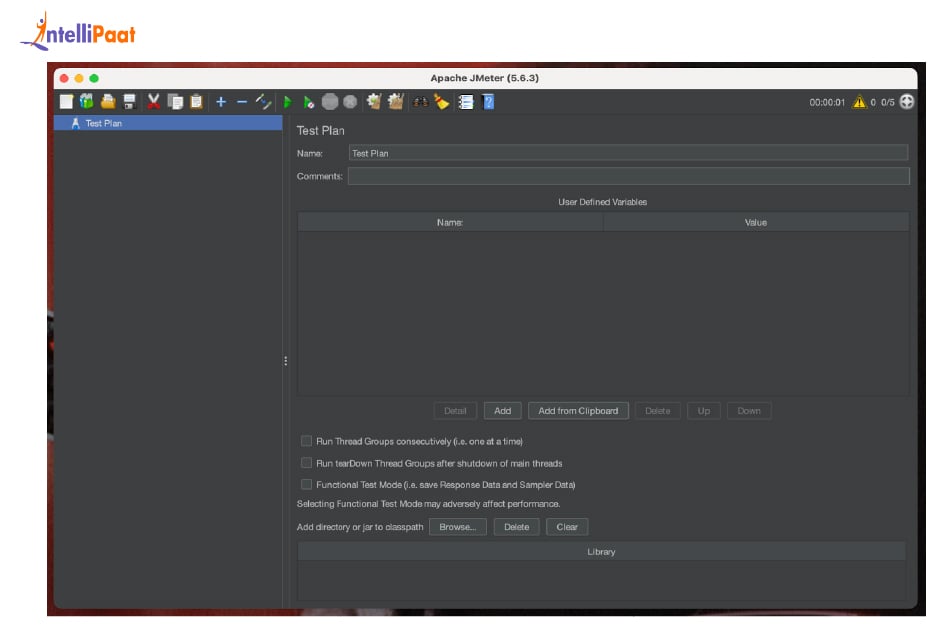

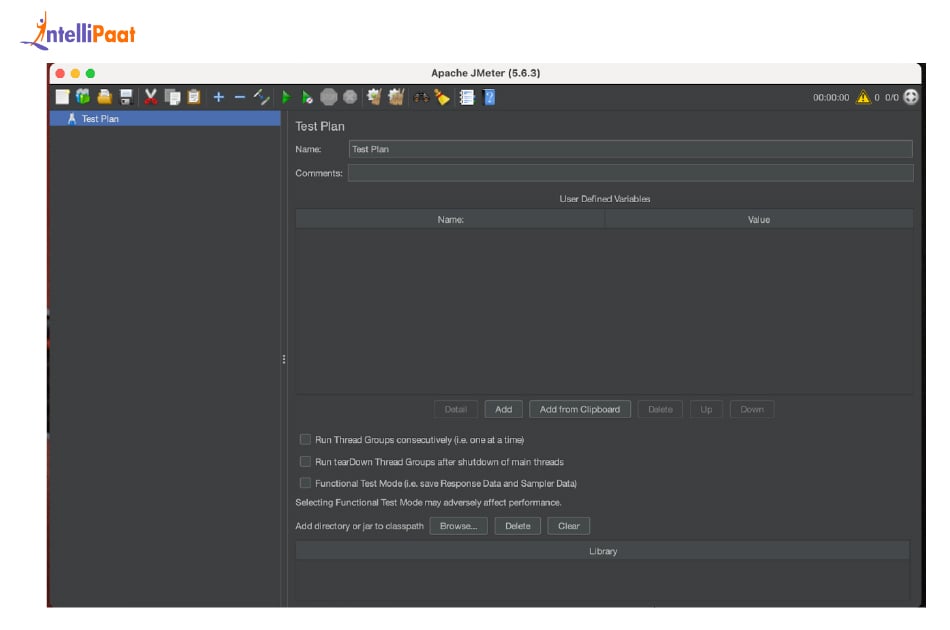

If everything’s installed properly, the JMeter GUI will launch.

If everything goes smoothly, you’ll be greeted with the JMeter GUI; something like this:

j-meter-gui

Apache JMeter Components Explained for Beginners

When you open JMeter, it may feel overwhelming, especially if you are a beginner. It can feel like a lot to take in at once, so we will focus on the main components you will need to confidently create and run your first test plan.

Every component has a purpose, and knowing and understanding the components will get you on the path of writing tests that work well, are dependable, and allow for growth. Let’s dive a little deeper.

1. JMeter Test Plans

The Test Plan is the core element of any JMeter project. Think of the Test Plan as your blueprint; it holds all your test items: users, requests, logic, and results.

  • Purpose: The purpose of the Test Plan is to hold everything you add, including users, requests, configurations, and results.
  • Think of it as: You can think of the Test Plan as the folder where all test components are kept.
  • Pro Tip: Be sure to save your Test Plan before running larger tests so that you can recover any lost data.

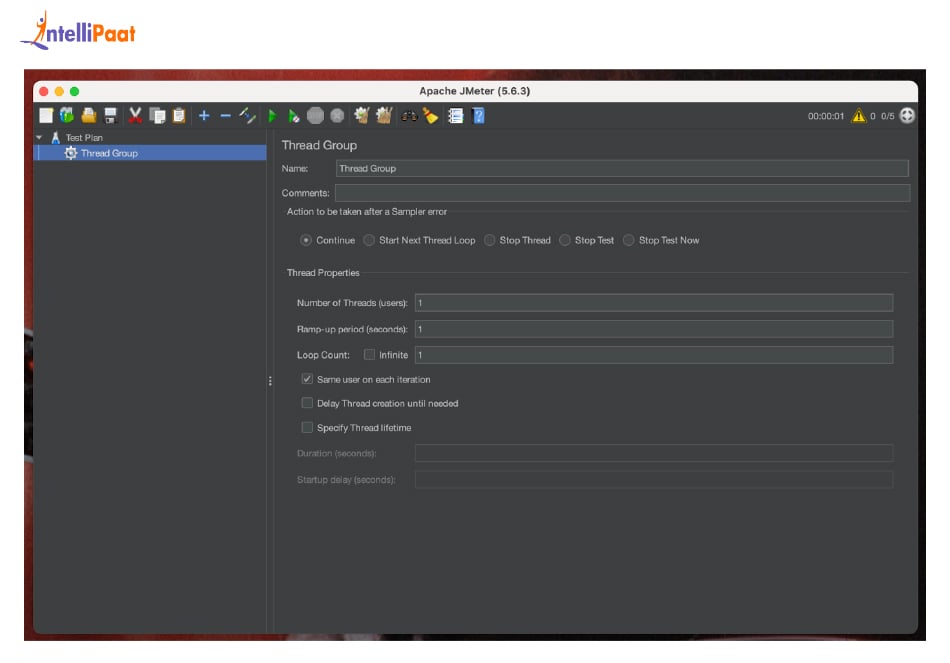

2. JMeter Thread Groups

JMeter Thread Groups are where you define how many virtual users are to be created, and how they act and/or run your tests, within your Test Plan.

Key configurations of Thread Groups in JMeter:

  • Number of Users: This sets how many independent virtual users to simulate.
  • Loop Count: This sets how many times each virtual user repeats the test.
  • Ramp-up Time: This sets how quickly the users start sending the requests, and how long it takes.

Example: Simulate 10 users sending requests 3 times with a 5-second ramp-up.

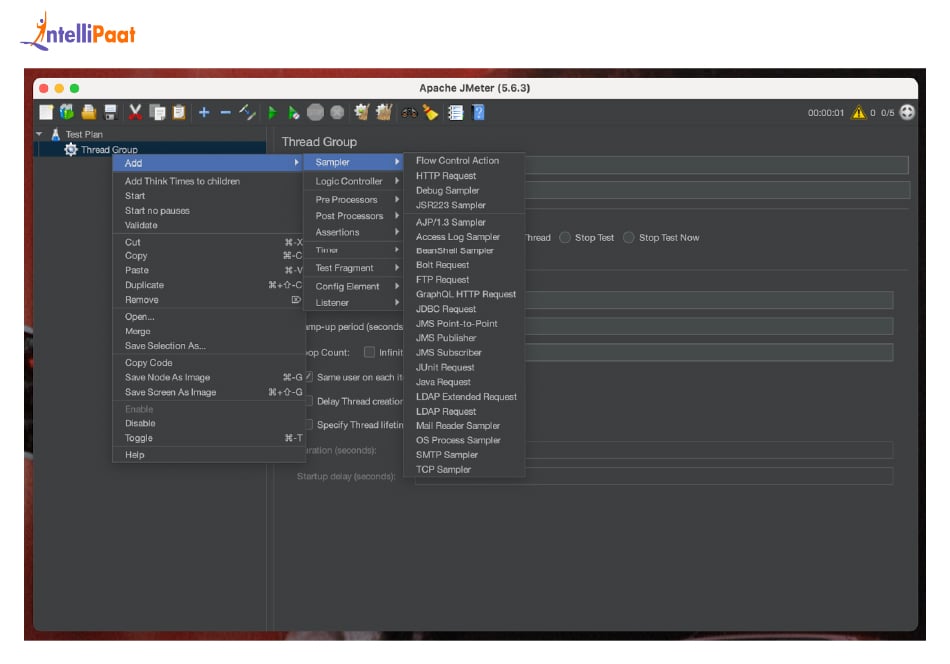

3. JMeter Samplers

JMeter Samplers essentially specify what actions your virtual users will perform. The most commonly used action is HTTP Requests, but there are other options available, including FTP, JDBC, SMTP, SOAP, etc.

Key configuration of Samplers in JMeter:

  • Server Name/IP: Target website or API.
  • Path: Specific page or endpoint.
  • Method: GET, POST, etc.

4. JMeter Listeners

JMeter Listeners display the results of your test. The listeners do not interact with execution, but they assist in the analysis of performance and statistical inferences from data.

  • View Results Tree: Displays responses for each individual request.
  • Summary Report: Shows response times and errors of requests.
  • Graphs: Displays trends for multiple users.

You may wish to add additional listeners based on the feedback you want.

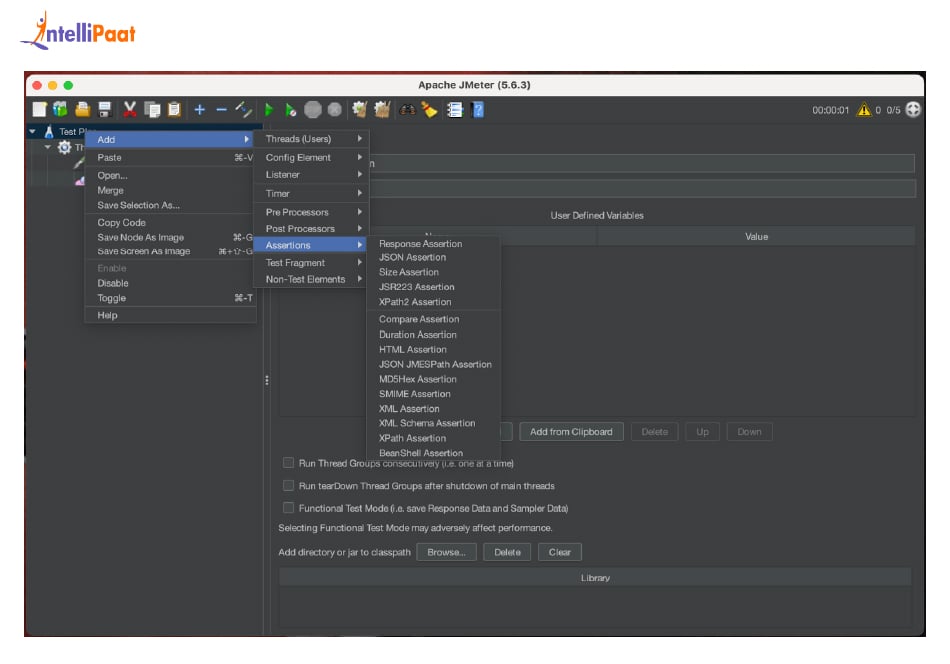

5. JMeter Assertions

JMeter Assertions confirm that the system is providing correct responses rather than simply fast responses.

  • Check if the server is returning the expected content (“Welcome” or HTTP 200 OK, for example).
  • Also verify that responses are not empty.
  • If the response times exceed specified thresholds, indicate that the test has failed.

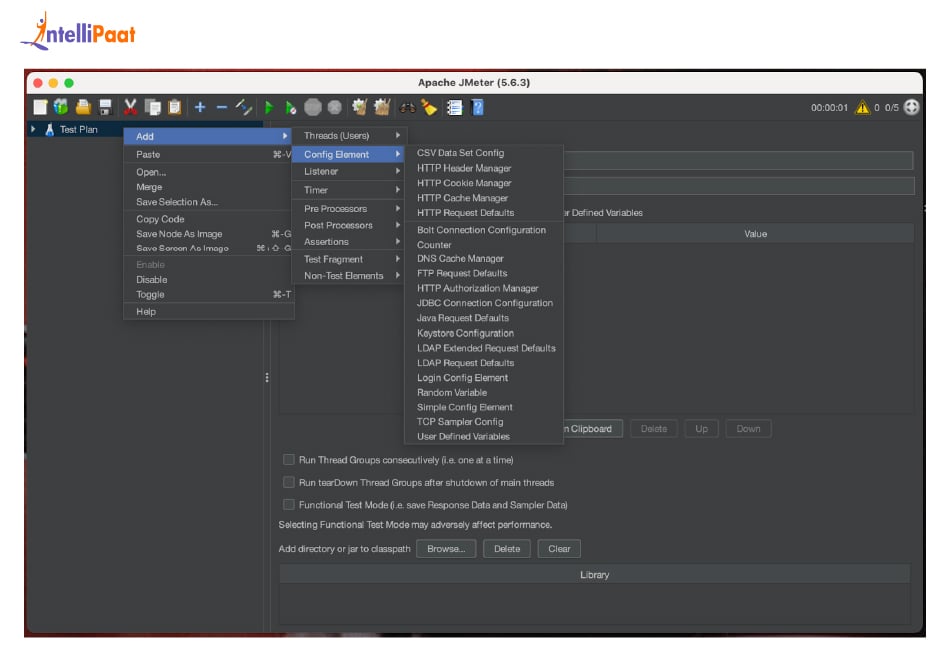

6. JMeter Configuration Elements

These are helper components designed to streamline test management, especially when parameters are repeated.

Common examples include the following:

  • HTTP Request Defaults – Set your base URLs once instead of making the same configuration for each request.
  • JMeter CSV Data Set Config – You can utilize CSV files to automatically test various inputs.

Config Elements simplify large or complex Test Plans.

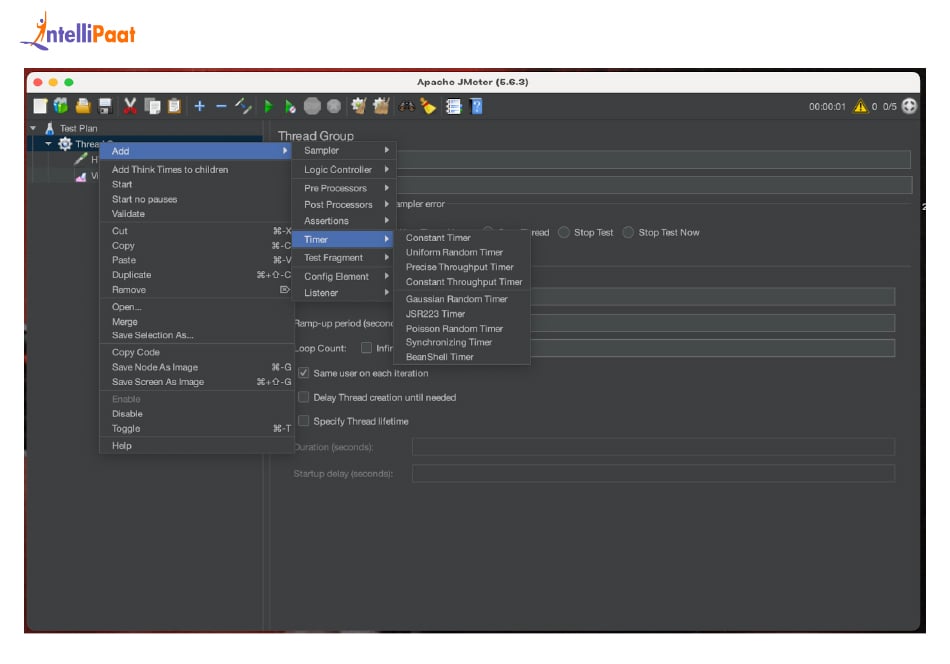

7. JMeter Timers

JMeter Timers introduce a time delay between requests in order to simulate the behavior of a real user.

  • Constant Timer: Adds a fixed wait time (e.g., 3 seconds)
  • Random Timer: Wait time varies to simulate “natural traffic”

Timers are optional but recommended for realistic load tests.

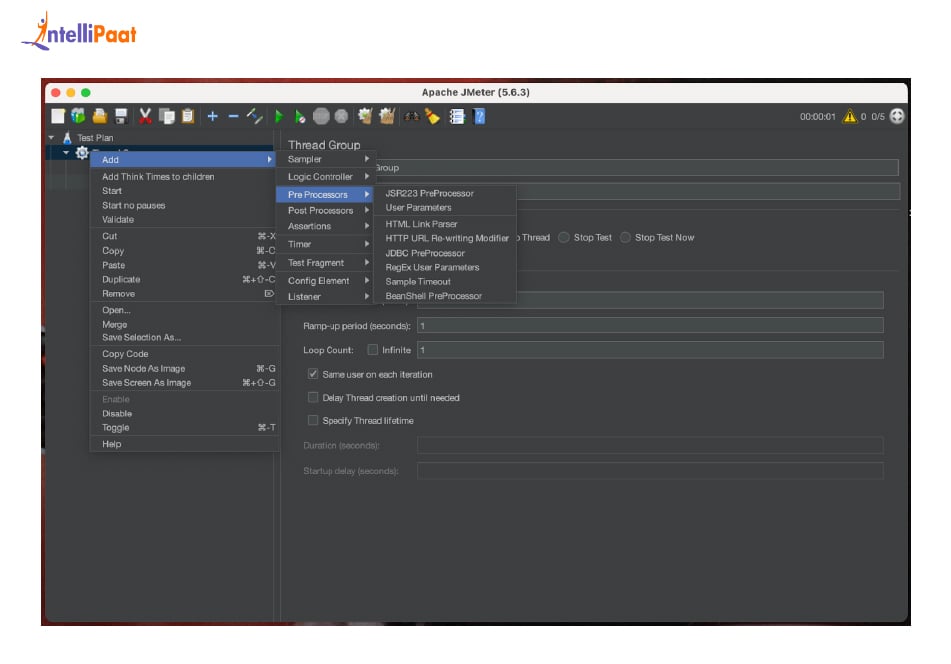

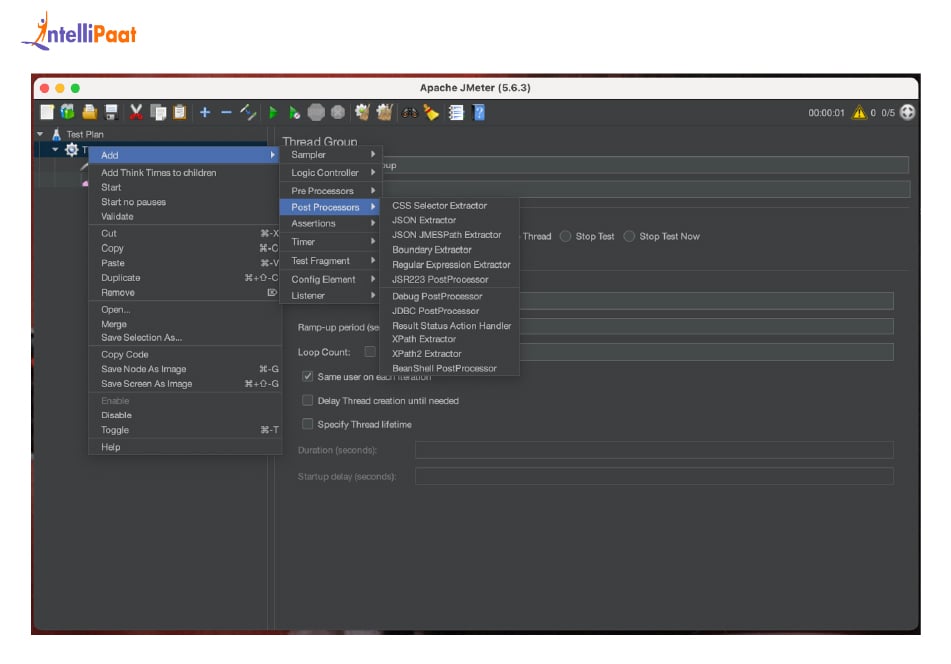

8. JMeter Pre-Processors and Post-Processors

Advanced yet helpful elements for dynamic testing:

  • Pre-Processors: Executes prior to a request (for example, attaching headers or creating dynamic data)
  • Post-Processors: Executes after a request (for example, extracting a token from the response to use in the next request)

These are essential for chained actions, like login → profile access → checkout.

JMeter Components Quick Reference

Component Purpose
Test Plan Container for your test script
Thread Group Defines users and test execution pattern
Samplers Sends requests to servers or APIs
Listeners Shows test results
Assertions Verifies response correctness
Config Elements Sets common values and test data
Timers Adds delays between actions
Pre/Post-Processors Logic before/after requests

Performing Hands-On Tests with Apache JMeter

Now that you have set up your JMeter environment and also familiarized yourself with the primary components of JMeter, you are ready to run some tests! In this section of our JMeter tutorial, you will explore Load Testing, Performance Testing, and API Testing, all carried out with a practical example. So let’s get into it.

Quick Setup Before Testing

Before we start testing, let’s quickly set up a base environment that you can reuse across the different JMeter tutorials.

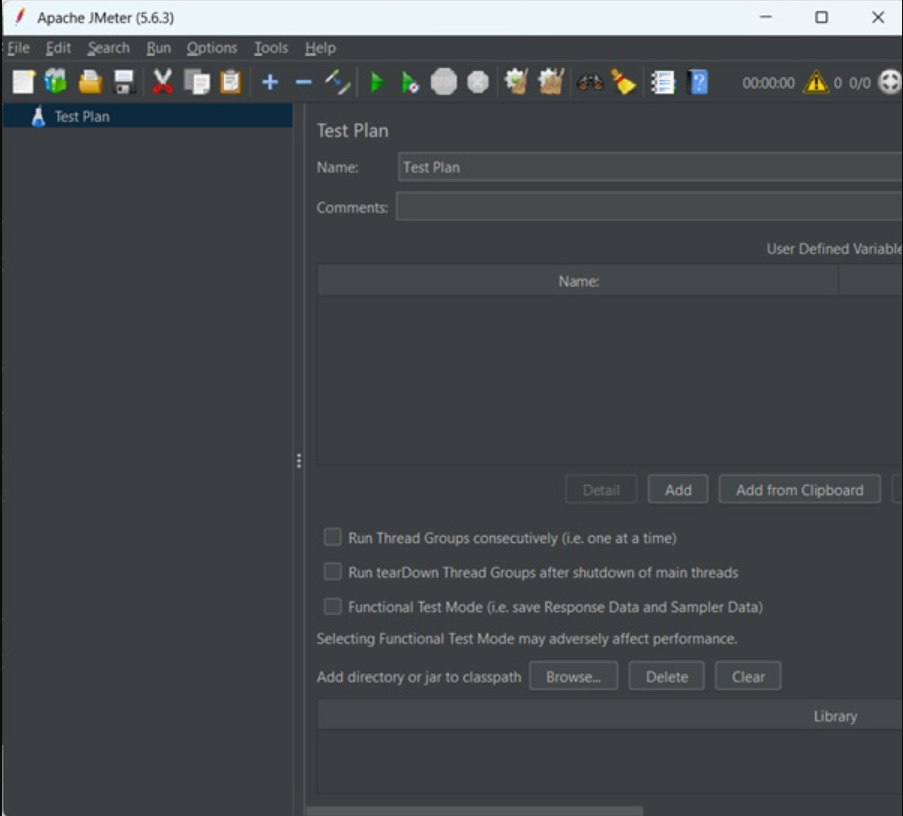

1. Launch Apache JMeter

Go to the bin folder in your JMeter directory.

Then execute:

  • Windows: jmeter.bat
  • macOS/Linux: ./jmeter.sh

This will launch the Apache JMeter GUI with an empty Test Plan.

image 29

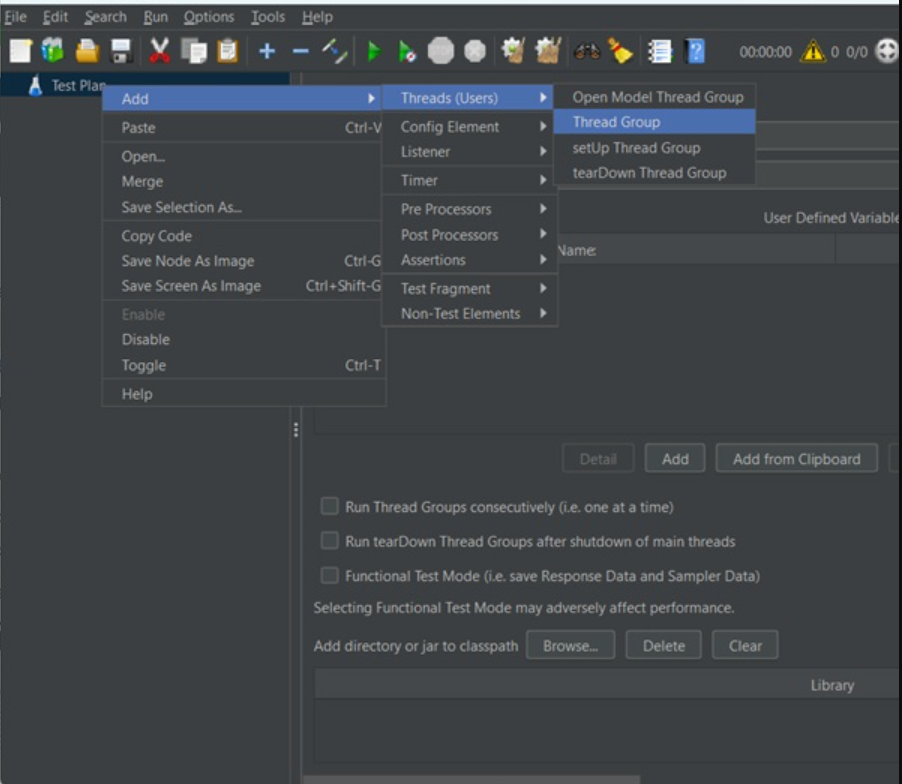

2. Create a Test Plan

Right click on Test Plan → Add → Threads (Users) → Thread Group

Give the thread group your own descriptive name, ie, My Test Plan.

image 34

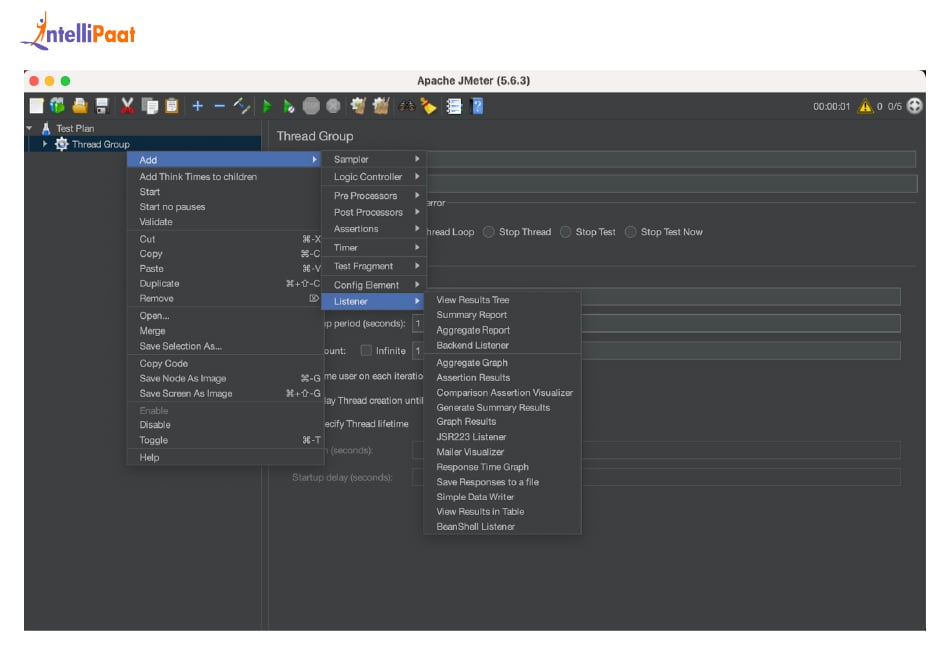

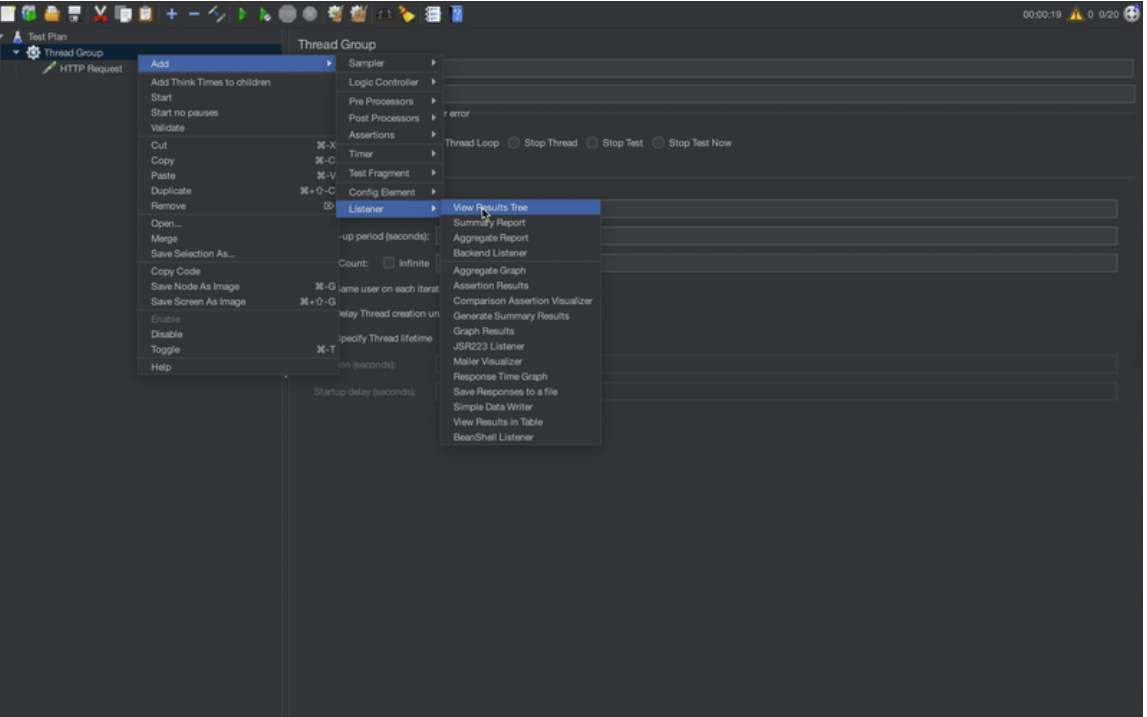

3. Add JMeter Listeners

Right Click on Thread Group → Add → Listener → Choose:

  • View Results Tree (to debug your tests)
  • Summary Report (to get metrics)
  • Graph Results (to visualize)
image 28

3. Optional Options

  • Timers: Add more realistic traffic by including delays in between requests
  • HTTP Request Defaults: avoid repeating the same server URL over and over
  • CSV Data Set Config: feed multiple users, or data input.

Load Testing in JMeter Tutorial

Since Load Testing using JMeter is its most common use case, let’s begin with it. The goal is to simulate many users hitting your application simultaneously, in order to determine how your application performs when placed under stress. Let’s get started.

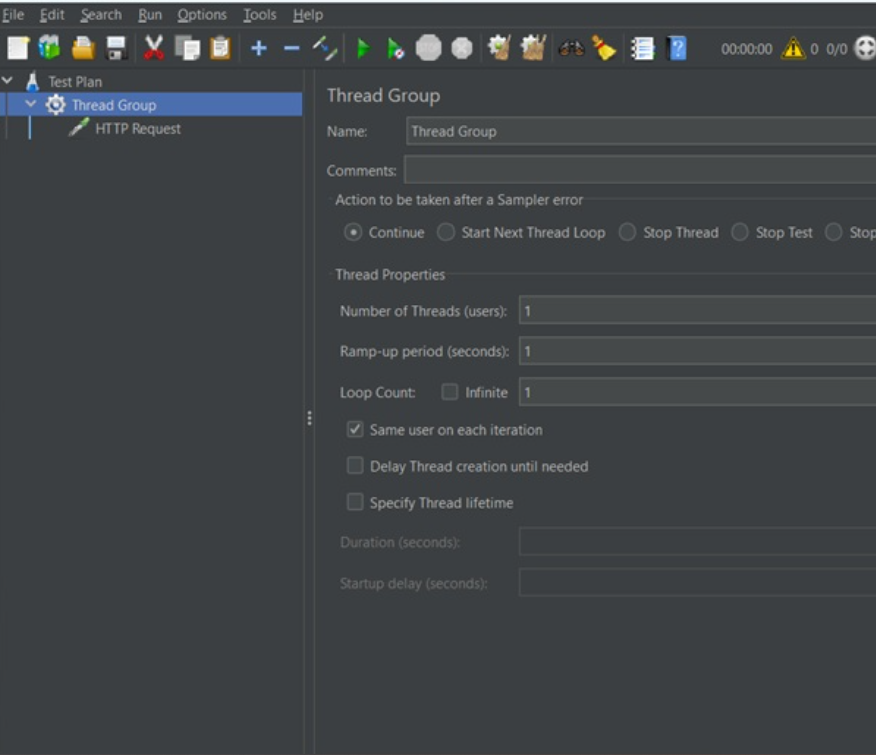

Step 1: Configure Thread Group

  • In the left panel, right-click on Test Plan → Add → Threads (Users) → Thread Group.
  • Once created, it will be labeled New Thread Group. Click on it in the left panel to see its configuration displayed in the right panel.
  • Configure the following settings:
Setting What to enter Explanation
Number of Threads (users) 10 Simulates 10 virtual users visiting your site at the same time
Ramp-Up Period (seconds) 10 Staggers user start over 10 seconds so not all users hit at once
Loop Count 2 Each user repeats the scenario 2 times

Tip: Ramp-Up helps mimic real user traffic gradually, while Loop Count ensures each simulated user performs the actions multiple times.

image 30

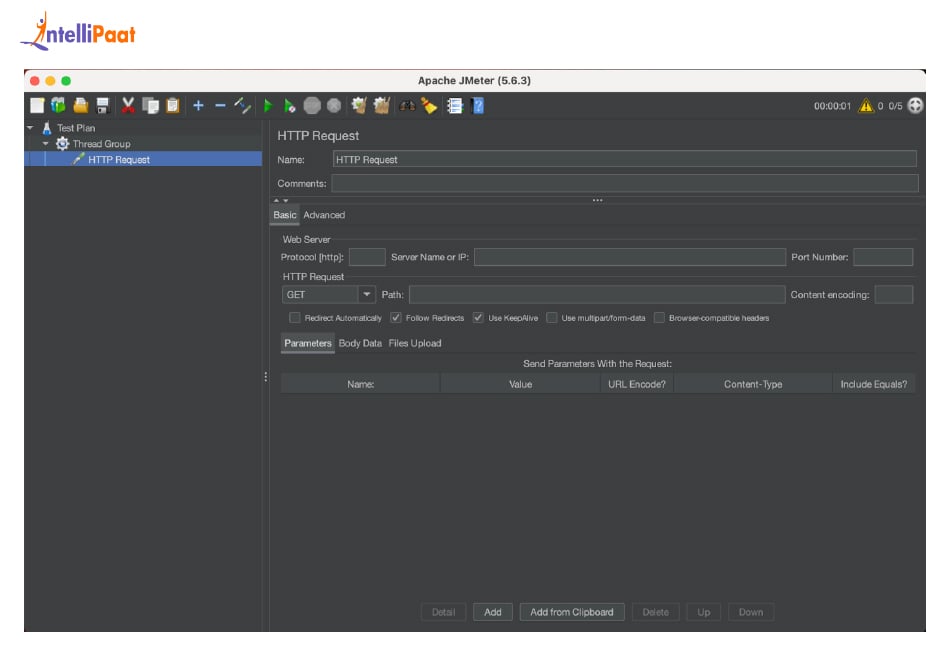

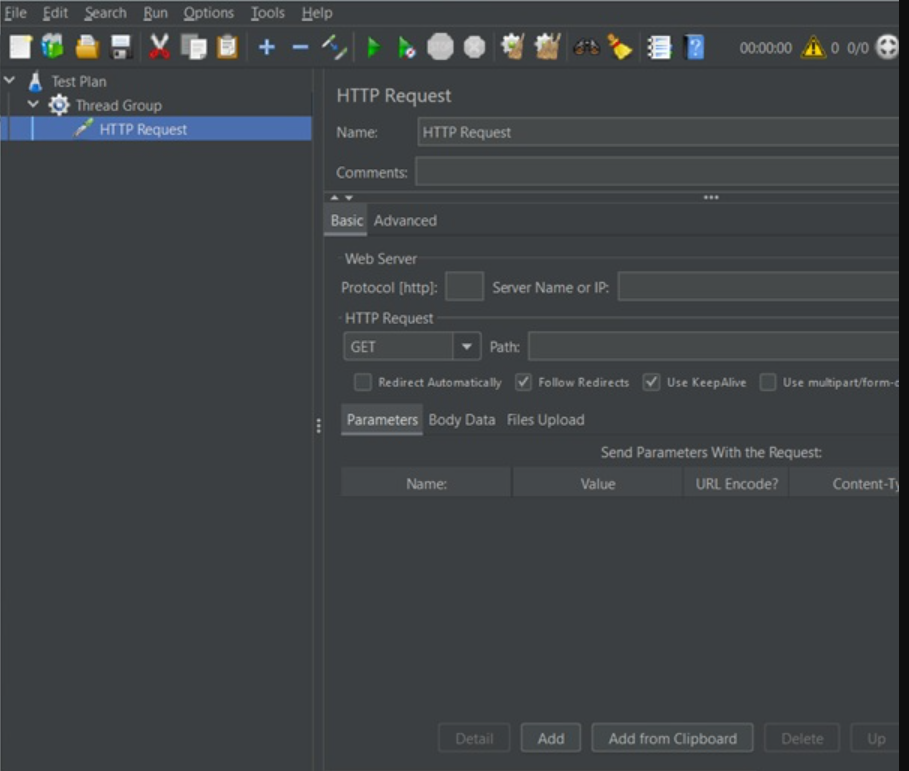

Step 2: Add an HTTP Request Sampler

  1. Perform a right click on the Thread Group → Add → Sampler → HTTP Request.
  2. Next, click the newly added HTTP Request in the left-hand panel to expose the configuration on the right.
  3. Set up the HTTP Request:
Field Value/Action Explanation
Server Name or IP example.com (replace with your site) The domain or IP of the server you’re testing
Path /home or /login The specific page or API endpoint to hit
Method GET or POST Choose based on the type of request you want to simulate

Tip: Each HTTP Request sampler is one user action. For full user journeys, add multiple samplers (e.g., Login → Browse → Add to Cart).

image 31

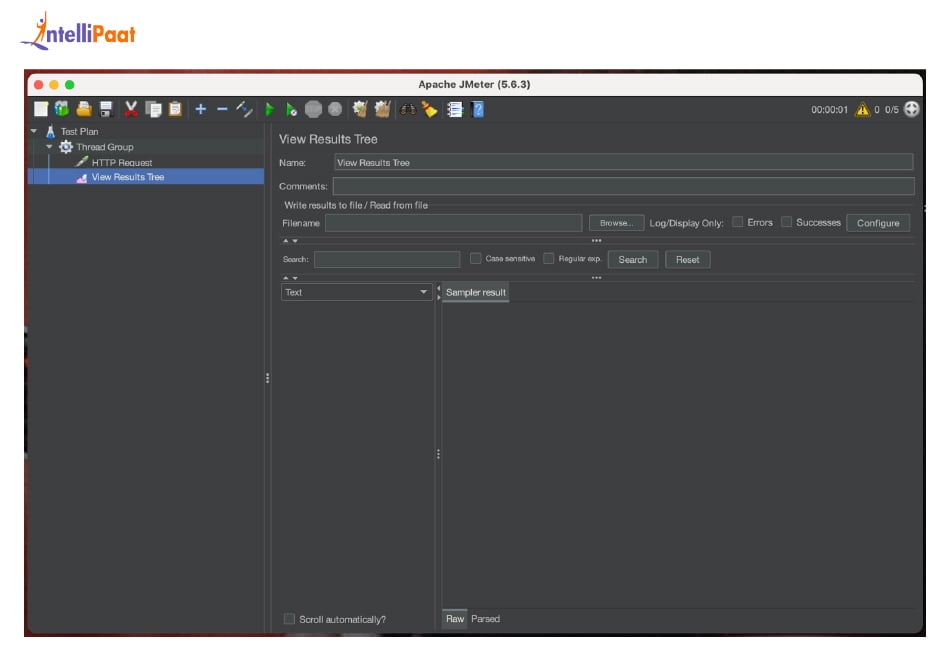

Step 3: Add Listeners to See Results

  • Right-click the Thread Group → Add → Listener → View Results Tree
    • Displays the request and each response, and the details of each request.
  • Right-click Thread Group → Add → Listener → Summary Report
    • Will display metrics, such as average response time, throughput (requests/second), and error percentage.
  • Right-click Thread Group → Add → Listener → Graph Results
    • Displays the performance trends in real-time.

Tip: Start with View Results Tree for debugging. Later, use the Summary Report and Graph Results to analyze overall system performance.

Step 4: Add Optional Elements for Realistic Tests

1. HTTP Request Defaults:

  • Right click on Thread Group → Add → Config Element → HTTP Request Defaults
  • Set base URL once, so each sampler doesn’t need it again.

2. CSV Data Set Config:

  • Right click on Thread Group → Add → Config Element → CSV Data Set Config
  • You can provide multiple test data ie, usernames or credentials, in a CSV.

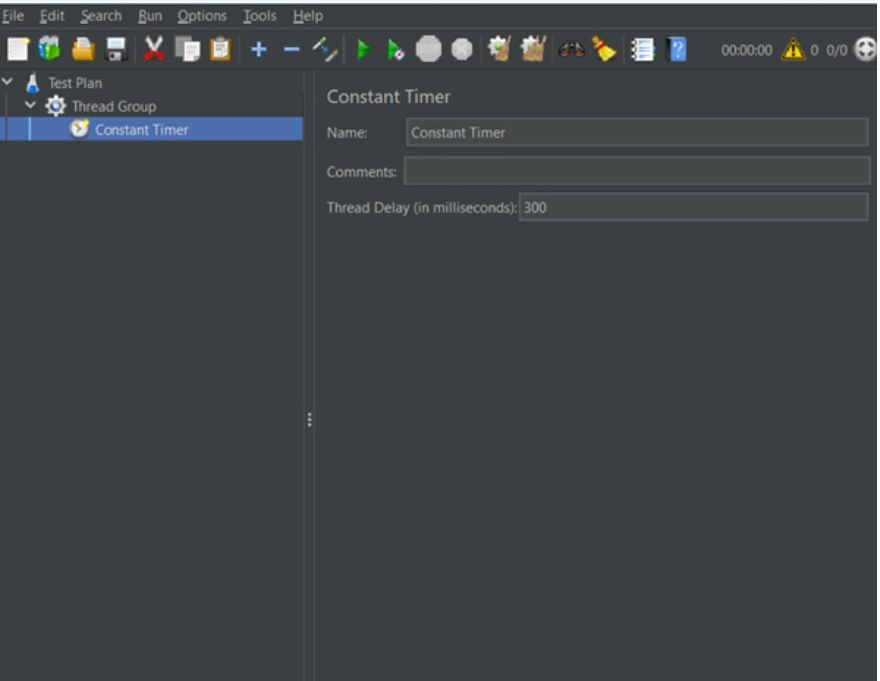

3. Timers:

  • Right click on Thread Group → Add → Timer → Constant Timer
  • You can add delays between requests to mimic real users.

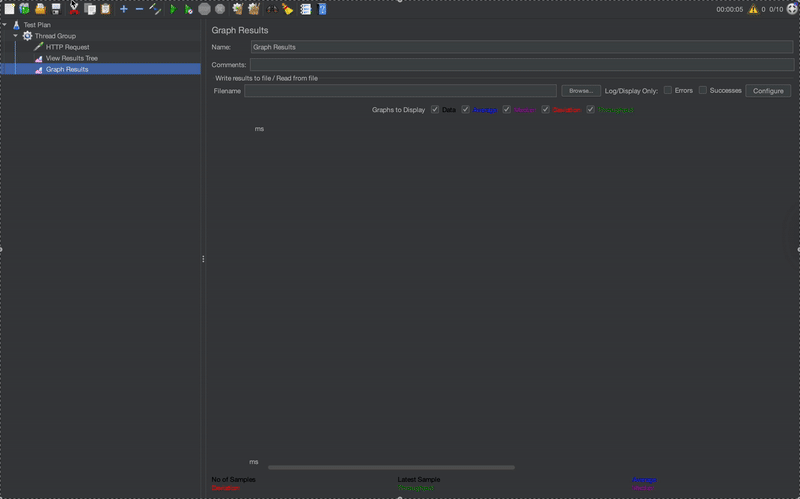

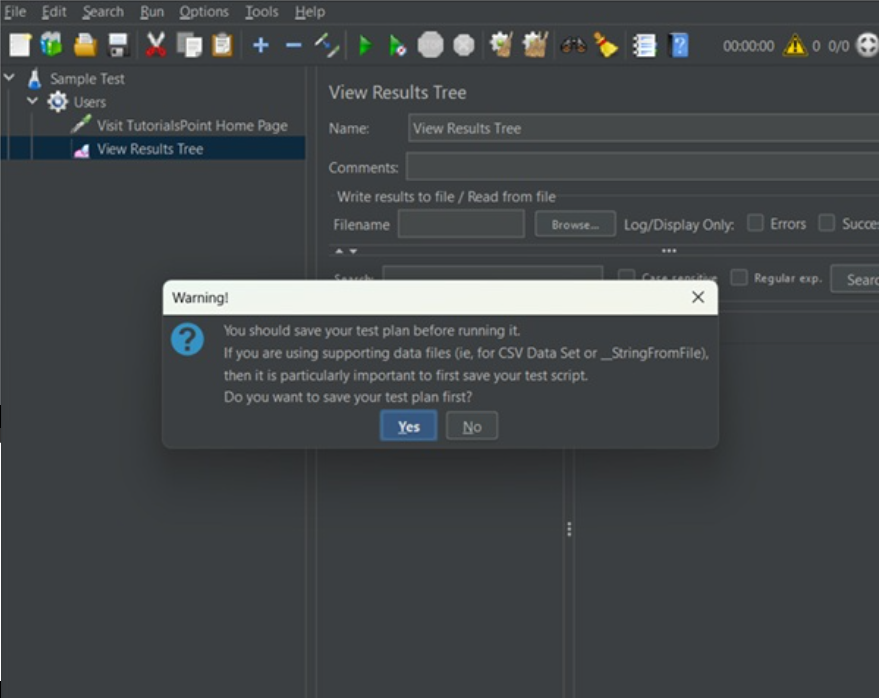

Step 5: Run the Test

  • Click on the green Start button located in the toolbar.
  • Then monitor the test in the Listeners as your requests are executed.

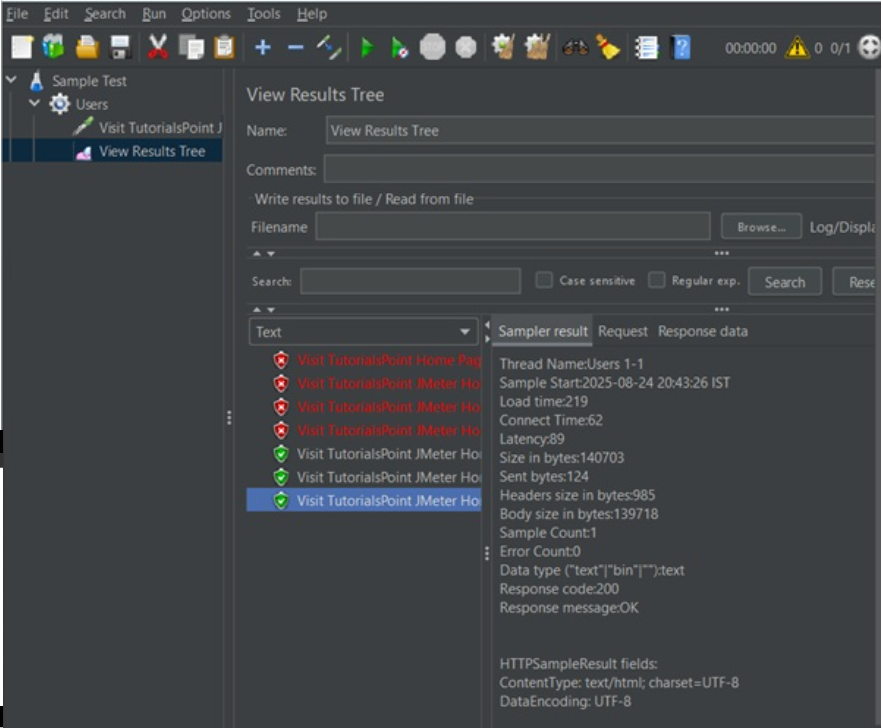

Step 6: Review Results

  • Results Tree: You should check for any requests that failed or errors.
  • Summary Report: Here you can check the average response time, throughput, and error %.
  • Graph Results: You should also look for spikes or any irregular trends.

A healthy application should maintain consistent response times and low errors even under multiple users.

Performance Testing in JMeter Tutorial

Performance testing examines how well your application performs under expected workloads, assessing latency, throughput, and stability rather than merely gathering up the number of users.

Step 1: Determine Your Test Purpose

Decide what you want to measure, for example:

  • Average and 90th percentile response times.
  • Server throughput under usual load,
  • Error rate during steady requests.
  • Resource usage (CPU, memory) using another tool such as Grafana or New Relic.

Step 2: Create a Realistic User Scenario

Instead of a single request, create a typical journey of a user called a scenario:

Example scenario:

Login → Browse Product → Add to Cart → Logout.

  • Each action you take is an HTTP Request sampler.
  • Right click on Thread Group → Add → Sampler → HTTP Request for each action.

Step 3: Configure Thread Group Parameters

  • Click the Thread Group to view its settings.
  • Use realistic parameters:
Setting Example Explanation
Users (Threads) 50 Simulates 50 users at the same time
Ramp-Up Period 20 seconds Staggers start of each user to simulate natural load
Loop Count 5 Each user repeats the journey 5 times

This simulates 50 users interacting continuously, which is typical of real-world usage.

Step 4: Include Timers and Assertions

Timers will help simulate real user activity in your test:

  • Right-click for the Thread Group → Add → Timer → Constant Timer
  • Indicate the delay in milliseconds (for example, between requests use 2 – 3 seconds).

Assertions will help you verify the correctness of the responses:

  • Right-click for the HTTP Request → Add → Assertions → Response Assertion
  • Example: Check that “200 OK” is a response or verify a specific text (such as “Welcome”).

Using Timers in conjunction with assertions will help to ensure that you are measuring the performance and the correctness in your load test.

image 27

Step 5: Add Listeners Needed to Measure Performance

  • Summary Report: Average, minimum, maximum response times. Error %.
  • Aggregate Report: Throughput (Requests/sec) received. Error %.
  • Response Time Graph: A Graph to indicate visual trends under load.

These listeners should assist in your assessment of bottlenecks and performance trends.

Step 6: Run Your Test and Observe

  • Click the green Start button to begin.
  • As you observe the requests executing, you should observe the Listeners to follow the activity.
  • Monitor system resources externally (CPU, memory, DB usage) to correlate JMeter data with backend behavior.
image 32

Step 7: Review and Present Findings

You should watch for the following results:

  • Gradual increase in response time: This may point to scaling.
  • Sudden increase in response time or timeouts: This could point to a bottleneck in application code or infrastructure.
  • High error rate: indicated possible misconfigured requests, overloaded application server, or all assertions verified incorrectly.
image 33

Document findings with screenshots or reports. These insights are crucial for improving application performance.

API Testing in JMeter Tutorial

To make sure your endpoints give accurate responses, load the application effectively, and provide valid data, API testing is performed. This can be accomplished in Apache JMeter for REST and SOAP APIs without writing any code.

Step 1: Create a New Test Plan

  • Right click on Test Plan → Add → Threads (Users) → Thread Group
  • Rename the Thread Group to a descriptive name, such as API Test Plan.
  • Click Thread Group to configure:
Setting Example Explanation
Users (Threads) 10 Simulate 10 concurrent API requests
Ramp-Up Period 5 seconds Staggers request start to mimic realistic load
Loop Count 2 Each user repeats the request twice

Step 2: Add an HTTP Request Sampler

  1. Right-click on the Thread Group → Add → Sampler → HTTP Request
  2. Configure the HTTP Request:
Field Example Notes
Server Name or IP api.example.com Your API endpoint
Path /users/login Specific API path
Method POST (or GET/PUT/DELETE depending on API) HTTP method
Body Data { “username”: “test_user”, “password”: “12345” } JSON payload for POST/PUT requests

Add HTTP Header Manager if needed:

  • Right-click on the HTTP Request → Add → Config Element → HTTP Header Manager
  • Example headers:
    • Content-Type: application/json
    • Accept: application/json

This ensures the API receives and responds in the correct format.

Step 3: Add Assertions (Optional but Recommended)

Assertions verify that your API is functioning properly.

Right-click on the HTTP Request → Add → Assertions → Response Assertion.

Examples of checks:

  • Response body has “status”: “success”
  • Response time is under 2 seconds (Duration Assertion)

Assertions ensure you’re testing not just speed, but the correctness of the response.

Step 4: Include Listeners to Capture API Performance

Include Listeners to observe request performance:

  • View Result Tree: Inspect request/response statistic
  • Summary Report: Inspect response time, throughput, and error %
  • Graph Results: View API performance trends

These Listeners will help capture slower response times, errors, and trends in behavior.

Step 5: Execute the API Test

  • Click green Start button.
  • Observe responses in View Result Tree, observe metrics in Summary Report or Graph Reports.
  • Check for:
    • Slow or failed response
    • Error in JSON structure
    • Latency or throughput issues.

Step 6: Analyze API Results

  • Response Time: The speed of the API response
  • Response Data: Check the structure of the JSON and if it is correct
  • Error % & Throughput: From the Summary Report
  • Consistency: Ensure multiple calls return dependable and accurate responses

Record results with screenshots or exported reports for later reference or to share with your team.

More Advanced Features of Apache JMeter

Once you’re comfortable with basic load, performance, and API testing, JMeter has a number of advanced features that can add more realism, scalability, and integration into professional workflows. These features will be beneficial to QA Engineers, Developers, and Performance testers involved in real projects.

JMeter Distributed Testing (Master-Slave)

Often, one machine is not able to sufficiently simulate the users necessary to conduct a large-scale test; and so, distributed testing allows the user to spread the load across multiple machines using a configuration called Master-Slave.

How it works:

  • Master: A master controls the test and gathers the results.
  • Slave: Executes the test plan simultaneously.

Steps to set up:

  1. Ensure all machines have the same version of JMeter and Java installed.
  2. Start JMeter on slave machines in server mode using:
jmeter-server
  1. On the master machine, configure your Test Plan and add the slave IP addresses under Remote Hosts.
  2. Start the test from the master → slaves execute the requests simultaneously.

Why it’s useful:

  • Test very high user loads without overloading a single machine
  • Useful for simulating realistic production traffic patterns

Using Apache JMeter in Continuous Integration (Jenkins, Maven)

In modern development workflows, you want performance testing to run automatically whenever new code is pushed. JMeter integrates well with CI/CD tools like Jenkins and Maven.

Jenkins Integration:

  1. Install the Performance Plugin in Jenkins.
  2. Create a job to execute your JMeter Test Plan.
  3. Configure Post-Build Actions to generate performance reports.

Maven Integration:

  • Use the JMeter Maven Plugin to run tests as part of your build lifecycle.
  • Define JMeter Test Plans in pom.xml so tests execute automatically on build.

Benefits:

  • Early detection of performance issues
  • Automates repetitive testing
  • Generates historical reports for performance trends

Apache JMeter Plugins for Extended Functionality

While core JMeter is powerful, the JMeter Plugins Manager adds extra functionality that makes testing more sophisticated and visual.

Popular plugins include:

  • Throughput Shaping Timer: Control how many requests are sent per second to mimic traffic spikes
  • Custom Thread Groups: More flexible user load patterns than the default Thread Group
  • Graphs & Reporting: Enhanced visualizations like Active Threads Over Time or Response Time Percentiles

How to install:

  • Download the Plugins Manager JAR and place it in the lib/ext folder.
  • Restart JMeter → you’ll find Plugins Manager under the “Options” menu.
  • Browse and install plugins as needed.

Parameterization and Dynamic Data Handling

Realistic tests often require different inputs for each virtual user, like unique usernames, product IDs, or API tokens. JMeter provides tools for dynamic data handling:

  • CSV Data Set Config: Read values from a CSV file and assign them to each thread.
  • User-Defined Variables: Define constants for reuse across multiple requests.
  • Functions & Expressions: Use built-in JMeter functions to generate random values, timestamps, or unique IDs on the fly.

Example:

Suppose you’re testing a login API with 50 users. You can provide a CSV file with 50 unique usernames and passwords so each virtual user logs in with different credentials. This prevents collisions and mimics real-world traffic.

Why it’s important:

  • Makes your tests more realistic
  • Reduces false positives or unrealistic bottlenecks
  • Prepares your test scripts for production-level workloads

Performance Testing Strategies

Understanding performance testing strategies is essential if you want your application to handle real-world traffic efficiently. While running tests is important, knowing what to test, how to design scenarios, and which metrics to monitor is what separates an average QA process from a professional one.

In this section of our JMeter tutorial, we’ll cover the key strategies you need for effective performance testing with JMeter.

Load Testing vs Stress Testing vs Spike Testing

Different types of performance tests help you measure different aspects of your application’s behavior. Knowing when to apply which is an integral part of being an effective and efficient tester.

Type of Test Purpose Example Scenario Key Metrics to Monitor
Load Testing Check how the system performs under expected normal traffic 100 concurrent users browsing a website during peak hours Response time, throughput, error rate
Stress Testing Determine the system’s maximum capacity before failure Gradually increasing users until the server crashes or slows down significantly Error rate spikes, server crash points, latency under heavy load
Spike Testing Observe system behavior during sudden traffic bursts Simulating a flash sale with traffic jumping from 50 to 500 users in seconds Response time, server errors, database performance

Designing Effective Test Scenarios

A test is only as good as its scenario. Poorly designed tests can give misleading results. Keep these best practices in mind:

  • Simulate Real User Journeys: Include common workflows like login → search → purchase → logout.
  • Use Realistic Data: Dynamic user accounts, product IDs, and API tokens help prevent collisions.
  • Vary Load Patterns: Mix constant, ramp-up, and randomized requests to mimic real traffic.
  • Include Think Times: Add delays between user actions to simulate human behavior.

Monitoring Metrics and Analyzing Results

Monitoring the right metrics helps you identify bottlenecks and improve performance. With JMeter, focus on:

  • Response Time: How long each request takes to complete.
  • Throughput: Requests processed per second.
  • Error Rate: Percentage of failed requests.
  • Server Resource Usage (CPU, Memory, Disk, Network): Monitored externally with tools like Grafana, Prometheus, or New Relic.

Identifying Performance Bottlenecks

Once your test is running, the next step is analysis. Look for patterns that reveal system weaknesses:

  • Slow Endpoints: Requests taking longer than acceptable thresholds.
  • Database Delays: Slow queries causing user actions to lag.
  • Memory Leaks: Gradual performance degradation over time.
  • Network Limitations: Bandwidth saturation affecting response times.

After identifying bottlenecks, iterate your test:

  • Fix the issue (optimize code, database, or server configuration).
  • Re-run the same scenario to validate improvements.
  • Document results for reporting and future reference.

A well-structured approach ensures continuous performance improvement instead of one-off testing.

JMeter Best Practices and Optimization Tips

Even after you’ve mastered JMeter basics and advanced features, following JMeter best practices is essential to ensure your tests are efficient, reliable, and maintainable. Proper practices also prevent false results, reduce server strain, and make collaboration easier when working in teams.

Writing Efficient and Maintainable Test Scripts

  1. Keep Your Test Plans Organized:

Use meaningful names for Thread Groups, Samplers, and Listeners. For example, LoginAPI_Test is more descriptive than HTTP Request 1.

  1. Reuse Components When Possible:

Utilize Config Elements and User-Defined Variables to avoid repeating URLs, headers, or credentials across multiple samplers.

  1. Modularize Your Test Plan:

Break complex test plans into separate JMX files or Test Fragments. This makes debugging and maintenance easier.

  1. Comment Your Scripts:

JMeter allows you to add comments to components. Always document assumptions, data sources, or special configurations for future reference.

Resource Management and Load Distribution

  1. Use Appropriate Thread Counts:

Don’t overload a single machine. Use distributed testing (Master-Slave setup) if simulating hundreds or thousands of users.

  1. Add Timers:

Avoid sending requests as fast as possible. Timers mimic realistic user behavior, reducing server overload and providing more accurate results.

  1. Monitor Your Machine:

Track CPU, memory, and network usage on the machine running JMeter. A resource-constrained load generator can give misleading performance results.

Debugging Common Errors

Even small misconfigurations can break your tests. Common issues include:

  • Connection Failures: Ensure the target server is reachable and ports are open.
  • Incorrect HTTP Requests: Verify method (GET/POST), path, and headers.
  • Thread Group Misconfiguration: Too many threads or loops may cause unexpected crashes.
  • CSV Data Issues: Make sure your CSV file is formatted correctly and all variables are referenced properly.

Debugging Tips:

  • Start small, run your test with 1–2 threads first.
  • Use View Results Tree listener for troubleshooting before scaling up.
  • Gradually increase the load once your test works reliably.

Ensuring Accurate and Reliable Results

  • Warm-Up Periods: Run a few initial iterations to let caches, databases, and servers stabilize before collecting results.
  • Repeat Tests: Perform multiple iterations to account for variability in server response times.
  • Use Assertions: Validate responses to ensure the server is returning the expected content, not just measuring response time.
  • Centralized Reporting: Generate aggregate reports and export CSV files for long-term trend analysis.

Troubleshooting JMeter Common Issues

Even with well-designed test plans and best practices, JMeter users often encounter issues while running tests. Knowing how to troubleshoot effectively can save hours of frustration and ensure your tests remain accurate and reliable.

This section will guide you through common problems, how to interpret errors, and where to find help.

Interpreting Error Messages and Logs

JMeter provides detailed logs and error messages to help diagnose problems:

  • Check the Logs: Open jmeter.log in the bin folder or use the Log Viewer in the GUI.
  • Common Messages:
    • Connection refused → The target server isn’t reachable or the port is blocked.
    • 404 Not Found → The requested endpoint or resource doesn’t exist.
    • java.lang.OutOfMemoryError → JMeter is running out of heap memory; consider increasing HEAP size in jmeter.bat or jmeter.sh.

Resolving Connectivity and Timeout Issues

Connectivity problems are common during load or API testing:

Timeouts:

  • Check server response times.
  • Increase the Timeout setting in HTTP Request Defaults if needed.

Network Restrictions:

  • Verify firewalls, VPNs, or proxy settings aren’t blocking JMeter requests.

SSL Issues:

  • Use the HTTP(S) Test Script Recorder with a proper certificate if testing HTTPS endpoints.

Debugging Test Scripts and Assertions

Errors in test scripts or assertions can result in false failures or unexpected behavior:

Assertions Failing Unexpectedly:

  • Ensure the expected response actually matches the real server output.
  • Use View Results Tree to inspect raw responses.

CSV Data Errors:

  • Make sure CSV files exist, are correctly formatted, and all columns are referenced.

Thread Group Misconfigurations:

  • Verify loops, ramp-up times, and thread counts are realistic for your system.

Useful Community Resources and Support

JMeter has a large community of developers, testers, and enthusiasts. When you get stuck:

  • Official JMeter Documentation: Comprehensive guides for every component.
  • Stack Overflow: Quick answers for error messages and common problems.
  • JMeter User Mailing List: Ask detailed questions and get expert advice.
  • YouTube Tutorials and Blogs: Step-by-step guides for specific use cases.

JMeter Plugins Documentation: Helps troubleshoot plugin-specific issues.

Final Thoughts

JMeter isn’t just a beginner’s tool. It’s a solid foundation that teaches you how systems respond under load, how to think about threads and loops, and how to spot patterns in performance data that matter.

You’ll come across other tools; some newer, some flashier, some more code-driven. But the real value lies in the fundamentals. Once you understand how load testing works, the tool itself becomes secondary. What stays with you is the ability to design tests that uncover real-world issues before your users ever feel them.

So start simple. Experiment freely, even if that means something breaks. JMeter gives you that space to learn. And once you’re confident, you’ll carry those lessons into whatever tool, stack, or system comes next.

This isn’t just about JMeter. It’s about learning how to ask the right questions and build systems that can hold up when it matters most.

Getting Started with Software Testing

Performance testing is just one part of a much larger skill set in software quality. If you’re looking to build a deeper foundation or explore testing as a full-time career, structured learning from vetted instructors can help. Intellipaat’s Software Testing Courses are designed to give you that full-picture view. These courses cover both manual and automation testing, align with industry certifications, and are designed for learners at any stage, whether you are starting in QA or looking to sharpen your skills as a developer or engineer.

Explore these commonly asked JMeter Interview Questions to understand how performance testing concepts are applied in interviews.

JMeter Tutorial for Beginners – FAQs

1. How to do a JMeter tutorial for beginners?

To get started with JMeter, download and install it from the official Apache website, create a test plan with a Thread Group, add an HTTP Request sampler, and use listeners to view results. Focus on simple scenarios like API testing to build confidence.

2. What is Apache JMeter used for?

Apache JMeter is used for load and performance testing of web applications, APIs, and servers. It helps simulate multiple users accessing a system to check how it behaves under stress.

3. How to simulate concurrent users in JMeter?

You can simulate concurrent users by adjusting the “Number of Threads” in the Thread Group. Each thread represents one virtual user, and you can control how fast they start with the Ramp-Up Period setting.

4. JMeter vs k6 – which is better for load testing?

JMeter is great for beginners and GUI-based test creation, while k6 is better for developers who prefer scripting and CI/CD integration. Choose JMeter for quick tests and k6 for scalable, code-driven workflows.

5. How to install and run JMeter on macOS?

Install Java first, then download the JMeter binary from the Apache site. Extract the folder, open Terminal, navigate to the bin directory, and run ./jmeter.sh to launch the GUI.

About the Author

Technical Writer

Soorya is a Technical Writer with 5 years of experience crafting clear, user-focused content and technical documentation. Proficient in JavaScript, Python, and web development, he blends technical expertise with creativity to deliver engaging, actionable insights that help developers and tech enthusiasts solve real-world challenges.

Automation testing with Selenium
