Kernel in Operating System

The kernel is the core component of any operating system, responsible for managing communication between software and hardware. It handles critical tasks such as process management, memory allocation, device control, and system security. The kernel in an operating system acts as a bridge between applications and the computer’s physical components. It also plays a vital role in maintaining the stability, efficiency, and responsiveness of the system. In this blog, you will explore the role, types, and functions of the kernel in an operating system in detail.

Table of Contents:

• What is a Kernel?
• What is a Kernel in Operating System?
• Types of Kernels in Operating System
  1. Monolithic Kernel
  2. Microkernel
  3. Hybrid Kernel
  4. Exokernel
  5. Nanokernel
• Functions of Kernel in Operating System
• Working of the Kernel in Operating System
• Kernel Mode vs User Mode in an Operating System
• Real-World Use Cases of Kernel in Operating System
• Conclusion

What is a Kernel in Operating System?

A kernel is the core component of any operating system. It serves as a bridge between the software and the hardware. Whenever an app or a task is opened on your computer, the kernel is there to make sure that the task is properly utilizing the hardware available in your system, for example, the processor, memory, or devices. The kernel makes sure that everything runs smoothly on your system and helps prevent system crashes or performance slowdowns.

Objectives of Kernel in Operating System

The primary objectives of a kernel in operating system include:

1. Resource Management: It manages the sharing of the CPU, memory, and input/output devices between different programs.
2. Process Management: Controls and schedules all running processes, ensuring each gets fair access to the CPU.
3. Device Communication: It is used to handle the interaction between software and hardware, mainly through device drivers.
4. Security: Protects the system from unauthorized access or faulty programs that could harm stability.
5. System Stability: Maintains smooth and orderly execution of processes without conflicts or crashes.

Become a Job-Ready Software Engineer

Master coding, system design, and real-world projects with expert mentors. Get certified and land your dream tech job

Explore Program

Types of Kernels in Operating System

Let’s explore the types of kernels in operating systems:

1. Monolithic Kernel

A monolithic kernel is a traditional kernel design where core services like memory management, device drivers, and file systems are all included and run in the same memory space. This setup allows the system to run faster since these services can interact directly, but it also makes maintenance and updates more difficult.

Advantages

• Fast Execution: Since all of the services run together in the same memory space, it provides faster execution.
• Direct Hardware Access: The kernel can quickly access hardware devices.
• Good Performance: Good performance for small or simple operating systems.
• Simple Overall Structure: The overall structure of the kernel is simple, which is why it was commonly used in earlier systems.

Disadvantages

• Difficult Maintenance: Modifying one part of the kernel often requires changes across the entire system.
• Less Secure: One bug can bring the whole system down because all the services are connected.
• Difficult to Debug: Debugging can be difficult if you have a large code base.
• Large: It consumes more memory and can slow down systems with limited resources.

2. Microkernel

A microkernel keeps only the most essential functions like scheduling and communication. The other services, like drivers and the file system, run separately in the user space and outside of the kernel. This separation improves stability and security, but it can reduce performance due to increased communication between components.

 Advantages

• Better Security: A crash in one service does not bring down the entire system.
• Easy Updates: Allows individual components like drivers to be updated independently without modifying the entire kernel.
• Stable Operation: Even if the module crashes, the entire system remains stable.
• Modular Design: Parts can be developed, tested, and debugged independently.

Disadvantages

• Slow Performance: Communication between the parts requires time.
• Complex Structure: Understanding how the internal structure of the system works together may be difficult.
• Overhead: The message-passing used by the service adds extra load on system resources.
• Difficult Design: Requires careful design and programming to implement correctly.

3. Hybrid Kernel

A hybrid kernel combines elements of both monolithic and microkernel systems. It aims to retain the speed advantage of monolithic kernels while also incorporating the security and modularity of microkernels. Many more modern, current operating systems utilize this type of kernel, including Windows and macOS.

Advantages:

• Balanced Performance: Offers an acceptable balance between speed and modularity.
• Easier Modularity: Services can be added or removed more easily than in a monolithic kernel.
• Modern Usage: Many current operating systems utilize hybrid kernels.
• Partial Modularity: At least a portion of services are separated for better modularity/control, and security.

Disadvantages:

• Large: Hybrid kernels are not as lightweight as pure microkernels.
• Complex Structure: Combining different kernel types adds complexity, making management harder than with pure microkernels.
• Debugging Challenges: Errors are tougher to find because of the complex interactions between services.
• Not Fully Modular: Some services remain tightly connected, like in monolithic kernels.

4. Exokernel

An exokernel is an extremely small kernel that permits greater direct control of hardware resources. It does not provide many services to applications, while allowing applications to control how they use the hardware (although this can be risky). As a result, exokernels are very fast and flexible, but harder to develop.

Advantages

• Speed: Applications can interact with hardware directly and bypass other portions of the kernel in the OS.
• Greater Control: Developers can determine how programs access and utilize hardware resources.
• Efficient Use of Resources: Exokernels minimize system overhead, making them ideal for resource-constrained environments.
• Lightweight Kernel: The kernel itself is very small and simple.

Disadvantages

• Hard to Develop: Working with low-level code in exokernels makes development more challenging.
• Lower Security: Allowing applications more direct control can increase security risks if not carefully managed.
• Not Common: Exokernels are rarely used in everyday desktop or business systems.
• Difficult to abstract things: Since applications will try to avoid the normal OS constructs, developing applications may be more difficult for the average programmer without these abstractions.

5. Nanokernel

A nanokernel is even smaller than a microkernel and handles only the most basic hardware tasks, like low-level instructions and managing processor time. Nanokernels are mainly used in real-time systems or very small, efficient devices.

Advantages

• Extremely lightweight: Requires a very small memory footprint, and can work with small systems.
• Quick execution: Can execute tasks very quickly, with very little latency.
• Great for embedded systems: Ideal for devices with small compute units, like smartwatches or IoT sensors.
• Easy to analyze: It is easier to analyze and test because of the very limited functionality in a nanokernel.

Disadvantages

• Limited functionality: It cannot run a full OS on its own and has to add additional layers.
• Needs extra layers: It requires middleware or other software to run fully.
• Not commonly used: Too much flexibility can make it hard to work with normal computer systems.
• Difficult to integrate: Challenging to integrate with complex systems

Functions of Kernel in Operating System

Let’s explore the functions of the kernel in operating system:

1. Process Management

Process management is one of the primary functions of the kernel. It is responsible for all of the programs that are currently executing on the system. The kernel knows when a program begins, pauses, and dies, and ensures all processes get an equal amount of time to execute on CPU. Usually, when many applications are open, the kernel switches between processes so quickly that everything runs smoothly without crashing or freezing.

2. Memory Management

The kernel manages your computer’s memory (RAM). It keeps track of which parts of memory are used by each program. When a program starts, the kernel gives it the memory it needs. When the program finishes, the kernel frees that memory for others to use. The kernel also makes sure one program doesn’t accidentally use another program’s memory. This protects your data and helps keep the system stable, especially when many programs are running at once.

3. Device Management

Device management refers to the management of input and output devices such as keyboards, printers, hard disks, or USBs. The kernel has specific software called device drivers to communicate with the devices. The kernel is responsible for managing all the devices so that the device works correctly and responds when it is called upon. For example, if the user presses a key or prints a file, the kernel ensures that the appropriate signal is sent to the device, and then the device sends an appropriate result back to the kernel. Device drivers must also manage the communication channels to handle multiple devices simultaneously.

4. File System Management

The kernel is helpful in maintaining and organizing files on your computer. It maintains the file structure so it’s easy and correct to locate and access files. The kernel keeps track of how the files are being stored, opened, written, renamed, and deleted. All files are stored in folders on storage devices. The kernel maintains the file structure and manages file operations. It is also responsible for file permissions, ensuring only authorized users or programs can read or modify files. This function allows data to be well-organized and accessible for daily use and provides a safe location for information.

5. Resource Management

Resource management is a process that involves the sharing and controlling of system resources, such as CPU time, memory space, files, and input or output devices. The kernel decides how and when, and in what sequence, resources will be given to programs or users. It will ensure that each active task has the resources needed to complete it, and it will avoid over-allocating resources based on system load. If two programs need a resource simultaneously, the kernel will manage the request so that the conflict is resolved, enhancing system performance and avoiding crashes or slow program execution.

6. Security and Access Control

Security and access control are two important functions of the kernel. The kernel creates security and access control policies to protect the system from access by unauthorized users or programs, and to ensure that users and programs can only do what they are allowed to do. For example, administrator privileges must be exercised to change certain files or settings. In this situation, the kernel checks the privileges assigned to the user and denies access if the user is not allowed. Kernel security and access control also restrict access of harmful programs (e.g., viruses) from damaging your system.

7. Inter-Process Communication (IPC)

Interprocess communication (IPC) is how various programs or processes are able to communicate with each other. The kernel offers tools or methods to facilitate that communication, such as shared memory, signals, and message passing. For example, if the browser wants to send data to a download manager, this is accomplished by employing some form of interprocess communication. The kernel supervises interprocess communication so that the processes don’t get in each other’s way or lose data in the process. Interprocess communication is a useful tool for creating multitasking environments, which in turn allows applications to run smoothly and efficiently through the teamwork of multiple processes.

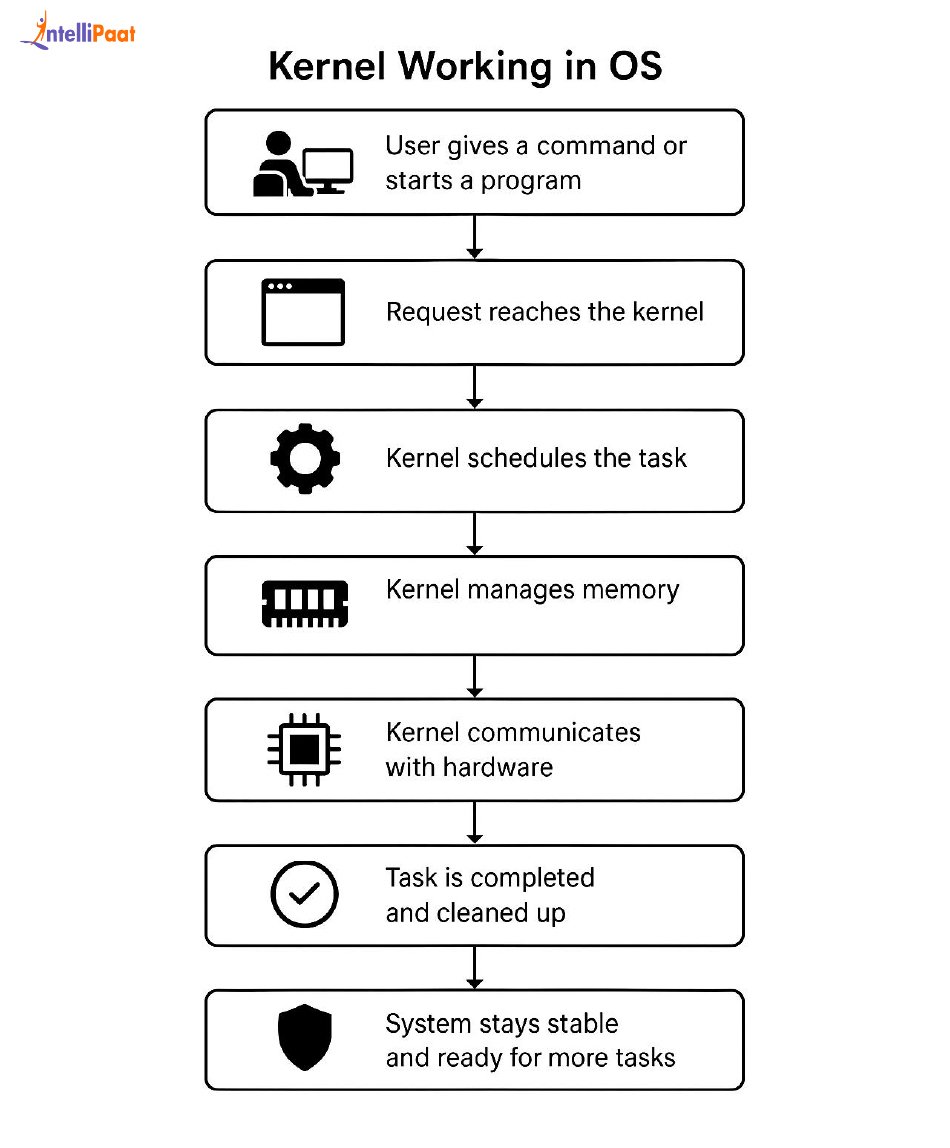

Working of the Kernel in Operating System

Let’s understand how the kernel works in operating system:

Step 1: The user gives a command or starts a program

When the user opens an application or types a command (such as opening a file or playing music), the request goes to the operating system. The application cannot directly access the hardware, so its request to the kernel can be made via system calls.

Step 2: Request reaches the kernel

The operating system delivers the request to the kernel. The kernel then figures out what it needs to do to fulfill the request. This may involve using the CPU, memory, or input/output devices. When the kernel knows what it requires, it retrieves the necessary information and prepares the system to complete the request.

Step 3: The Kernel schedules the task

The kernel adds a task to its list of scheduled processes and decides when the task will run. It uses scheduling methods to make sure all tasks get a fair share of CPU time and that the CPU is used efficiently. When many tasks need to run at once, the kernel switches quickly between them to keep everything running smoothly.

Step 4: The Kernel manages memory.

The kernel allocates a portion of memory (usually RAM) to each program for storing data while it runs. It also safeguards this memory to prevent programs from accessing each other’s data. This protection helps avoid crashes and ensures that tasks run safely and independently. When the RAM is full, the kernel can move inactive memory parts to virtual memory (such as a swap file) to keep the system responsive.

Step 5: The Kernel communicates with hardware

When an application needs to read from or write to a device like a hard disk, printer, or keyboard, the kernel sends the request to the right device driver. The driver then translates this request into commands the hardware can understand. After sending the request, the kernel waits for the driver to respond and return the result.

Step 6: Task is completed and cleaned up

When the task completes, the kernel removes it from the active process list. The kernel may also free the memory and other resources that were used for that task, thereby making those resources available to other applications. The kernel will also check and see if other tasks are waiting and prepare to perform them.

Step 7: The System stays stable and ready for more tasks

The kernel keeps watching the system for new tasks and hardware events, and it responds to them quickly. By managing everything constantly, the kernel helps the computer run smoothly, stay secure, and remain stable.

Kernel Mode vs User Mode in an Operating System

Real-World Use Cases of Kernel in Operating System

Let’s look at some real-world use cases of the kernel in an operating system:

1. Using Files and Folders

• The kernel handles file creation, deletion, reading, and writing.
• It ensures files are stored correctly on the disk.
• The kernel controls file access to prevent unauthorized changes.
• It keeps the file system organized and easy to access.

2.  Connecting and Using Devices

• The kernel communicates with hardware devices like printers and USB devices using device drivers.
• It sends data from applications to devices and receives responses.
• The kernel manages multiple devices simultaneously without conflicts.
• It helps detect new devices and prepares them for use.

Conclusion

The kernel is the central part of every operating system. It manages hardware, memory, running programs, and communication between them. Working quietly in the background, the kernel keeps the system stable, safe, and fast. It takes care of important jobs like opening files, running apps, and controlling devices. Knowing how the kernel works helps users and developers understand how the operating system runs smoothly.
