Microservices architecture is a modern approach for building software applications. As compared to monolithic architecture, which requires an application to be built as one unit, microservices divide the application into smaller and independent components. Every part has a specific job and can work independently or in collaboration with others. In this blog, you will understand what microservices architecture is, its features, and its components in detail.
Table of Contents:
What is Microservices Architecture?
The microservices architecture is a software design style where an application is made up of small, independent services. Every service is associated with a certain process of the business, like user login, product search, payment, or order. These services are integrated, but they are built, implemented, and operated individually.
Example: In an e-commerce application, instead of integrating everything, you build and deploy a login page, payment transactions, and order tracking as separate services. They talk to each other with the help of APIs. This approach allows teams to develop various components of the app separately, hence updating and scaling the app.

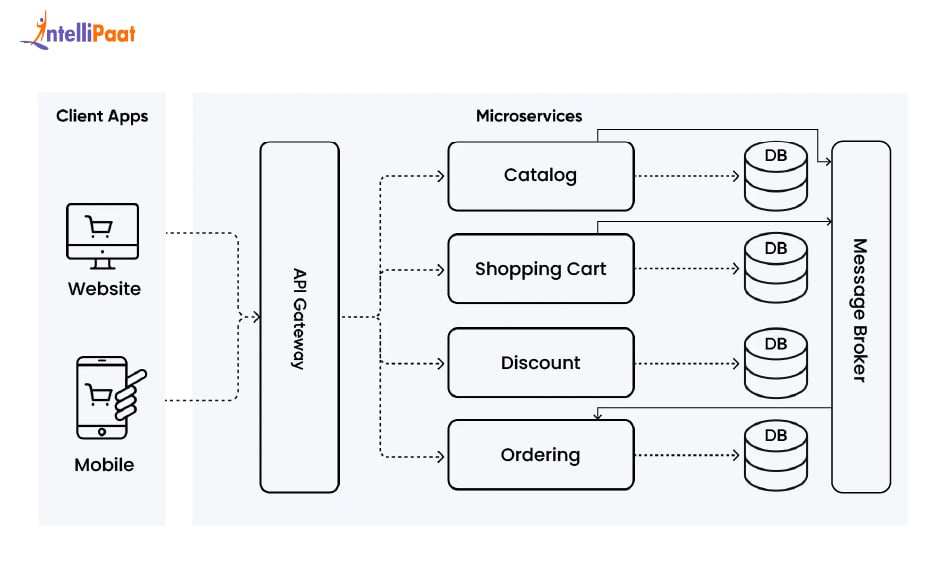

Microservices Architecture Diagram:
Become a Job-Ready Software Engineer
Master coding, system design, and real-world projects with expert mentors. Get certified and land your dream tech job
Key Features of Microservices Architecture
- Independent Services: Modules and features of the application are independent and work as different services.
- Minimal Dependency: Each service works on its own, so changes in one do not affect the others.
- Specific Functionality: Each service or module of the application focuses on a single task.
- API-Based Communication: APIs like REST help loosely coupled services to communicate with each other.
- Scalability: Each service can be scaled separately based on its specific demand, improving resource usage and performance.
- Event-Driven Architecture: Microservices can adopt an event-driven architecture, allowing services to react to events asynchronously. This approach enhances decoupling, responsiveness, and scalability
Components of Microservices Architecture
- Microservices: They are the individual services that help in dealing with a specific function.
- API Gateway: It works as a link between the client and the services, helping route each request to the correct service.
- Service Discovery: This allows services to find and talk to each other automatically without needing manual setup.
- Load Balancer: A load balancer is a component that distributes the traffic across various services.
- Database per Service: Each module or service can use a database for storing data, which helps to avoid conflicts.
- Monitoring Tools: These monitor the health and performance of every service.
- Service Mesh: Using a service mesh like Istio or Linkerd improves communication, security, and observability between microservices, making inter-service interactions more reliable.
Several frameworks and platforms can help streamline microservices development, deployment, and management:
- Helm & OpenShift: Platforms for managing complex deployments and CI/CD pipelines in microservices ecosystems
- Spring Boot / Spring Cloud: Simplifies building Java-based microservices with integrated tools for service discovery and configuration.
- Docker & Kubernetes: Containerization and orchestration tools that make deployment, scaling, and management easier.
- Istio / Linkerd (Service Mesh): Provides observability, traffic management, and secure communication between microservices.
Pros and Cons of Using Microservices
This type of architecture has numerous advantages that assist in the construction of applications by teams. It is faster to develop, scalable, and easier to maintain. However, like monolithic architecture, it also has its disadvantages. The administration of numerous small services can be more complicated and needs to be well tested and monitored. We are going to discuss the pros and cons in detail.
Pros:
- Scalability: You can scale individual services according to your requirements.
- Elasticity: Elasticity refers to the ability of a system to automatically scale resources up or down based on the current workload or demand. This ensures efficient use of resources and cost optimization.
- Faster Development: Separation of teams enables them to work on different services at the same time, which helps in accelerating development.
- Improved Fault Isolation: The other services can be available in case one of them goes offline.
- Easier Maintenance: A small codebase is more manageable, and updating it does not break the entire application.
- Independent Deployment: It is possible to update or fix one service without re-deploying the whole application.
Cons:
- Complex Setup: It is more complicated to set up and manage multiple services than to handle a large app.
- They need More Testing: You should work out the functionalities of services individually and together, which takes lots of time.
- Problems of Data Management: It can be challenging to address data consistency across services, as well as across databases.
- Latency and Network Load: Services communicate over the network. Hence, there will be a delay and increased data traffic.
- Debugging and Monitoring: It is harder to debug problems when you are working with multiple services.
Get 100% Hike!
Master Most in Demand Skills Now!
How Deployment and Scaling Work in Microservices
In the architecture of microservices, deployment is much easier and more flexible than in monolithic systems. As each of its services is separately constructed and operated, one service of the app may be deployed or upgraded without affecting other services.
Deployment Process
1. Build and Test Individual Services: Microservices are developed, tested, and constructed in isolation.
2. Containerization: Containers are commonly packaged with the help of such tools as Docker. The service is executed in these containers, and everything it requires is contained in them.
3. Service Deployment: Each service can be deployed on various servers or in the cloud. Such applications as Kubernetes facilitate the handling of such deployments.
4. Continuous Deployment (CD): Microservices help CD pipelines, meaning that code can be deployed to live and frequently.
Scaling in Microservices
With microservices, scaling can be done independently. In case one of your services is heavily utilized, you can scale only that service rather than the whole system.
Example: In your e-commerce application, there is a lot of payment processing due to which order processing services are handling multiple requests. You can scale up those particular services without affecting the other services.
Migrating from Monolithic to Microservices Architecture
Initially, many teams use a monolithic structure and then transition to microservices as their application grows. It is referred to as migration.
Migration Process:
- Firstly, it is necessary to understand the architecture of microservices and monolithic applications for migration.
- Divide the app into smaller services. All of them are supposed to manage one business activity (such as billing, inventory, or user profile).
- Every microservice is supposed to control its data. Divide the shared database step by step.
- Include a gateway that will control the communication between the client and services.
- Don’t migrate everything once. Start small and try to migrate all the services one by one.
- Once the migration has been completed then continue to monitor the services to ensure performance.
Challenges in Microservices Architecture
- Service Communication: Every service should communicate with one another properly. This demands proper API design and such tools as message queues.
- Data Management: A service with its database is good; however, it may result in data inconsistency between services.
- Deployment Complexity: It can be a complex task to manage and deploy a lot of services without adequate tools.
- Monitoring and Debugging: With numerous services in action, it becomes hard to detect where a problem has arisen. Effective monitoring tools are essential.
- Team Coordination: Various teams that work on various services require team coordination.
Best Practices while Using Microservices Architecture
- Focused and Small Services Design: One microservice can only take care of a single business function (e.g., search, cart, or payment).
- Communication through APIs: Keep services loosely connected. Use message queues or REST APIs to enable secure communication between them.
- Separate Databases: Try to avoid the database that is shared by every service.
- CI/CD: Use CI/CD pipelines, which will help to speed up the process.
- Containerization: Use of Docker or Kubernetes that will help you scale and deploy your services.
Conclusion
Microservices architecture helps in building flexible, scalable, and modern applications. It divides large and complex systems into smaller, simpler systems that are easier to build, test, maintain, and manage. Microservices introduce a wide range of benefits, such as faster deployment cycles and improved fault isolation, but they will also be a challenge to plan and manage properly, thereby not leading to complexity. Microservices provide your development process with the possibility to be much more efficient and future-ready once you follow all the best practices and use the right tools.
Take your skills to the next level by enrolling in the Software Engineering Course today and gain hands-on experience. Also, prepare for job interviews with the Software Engineering Interview Questions prepared by industry experts.
Check other related blogs Intellipaat:
Microservices Architecture: Principles, Benefits, Examples – FAQs
Q1. What makes microservices different from monolithic architecture?
Microservices divide an application into small, independent services, each handling a specific function. In contrast, monolithic apps bundle all functions together, making updates and scaling harde
Q2. How do microservices communicate with each other?
They communicate using APIs (like REST) or messaging queues, ensuring that services remain loosely coupled while exchanging data as needed.
Q3. Can microservices use separate databases?
Yes, each service can have its own database, allowing independent data management and reducing conflicts across services.
Q4. What is the role of an API Gateway?
An API Gateway acts as a bridge between clients and services, routing requests, handling authentication, rate limiting, and centralizing service management.
Q5. How is scaling managed in microservices?
Services can be scaled individually based on demand. For example, if a payment service has high traffic, it can be scaled independently without affecting other services.
Q6. Why is containerization important for microservices?
Containers (using Docker or Kubernetes) package a service with all dependencies, ensuring consistent behavior across environments and simplifying deployment and scaling.
Q7. What are the common challenges of using microservices?
Challenges include managing inter-service communication, maintaining data consistency across databases, debugging, monitoring, and coordinating multiple development teams.
