Converting Octal to Binary is a basic concept in conversions between numeric systems that are often seen in computer science and digital electronics. Converting numeric systems also allows data to be represented in simpler forms that the system can work with easily. Although octal numbers are in base 8 and binary is in base 2, the conversions of both number systems are a very essential part of low-level programming, embedded systems, and microprocessor design. In this blog, you will learn how to convert octal to binary both in general and in programming languages such as Python.
Table of Contents:
What is the Octal Number System?
The Octal Number System uses eight digits ranging from 0 to 7. Just like each digit in the decimal system represents a power of 10, each digit in the octal system represents a power of 8. In computing, octal is often used as a shorter form of binary numbers because one octal digit matches exactly three binary digits. This system is especially useful in areas like file permissions in Unix or Linux and in digital electronics.
Octal Number System Table:
Octal Digit |
Binary Equivalent |
Decimal Equivalent |
0 | 000 | 0 |
1 | 001 | 1 |
2 | 010 | 2 |
3 | 011 | 3 |
4 | 100 | 4 |
5 | 101 | 5 |
6 | 110 | 6 |
7 | 111 | 7 |
Unlock Python: Power Up Your Programming Skills!
Dive into real-world coding projects and become confident in writing clean, efficient Python code.
What is the Binary Number System?
The base 2 numeral system is called the Binary Number System, and it uses only two digits, which are 0 and 1. Each digit is called a bit, and this is short for binary digit. In binary, numbers are shown using powers of 2. The rightmost bit represents 2 to the power of 0, the next represents 2 to the power of 1, and it continues like this. This system forms the core of all modern digital electronics and computing because it matches the on and off or high and low voltage states used in digital circuits and processors. In computers, all calculations are done and all data and instructions are shown using Binary.
Binary Number System Table:
Decimal Number |
Binary Equivalent |
0 | 000 |
1 | 001 |
2 | 010 |
3 | 011 |
4 | 100 |
5 | 101 |
6 | 110 |
7 | 111 |

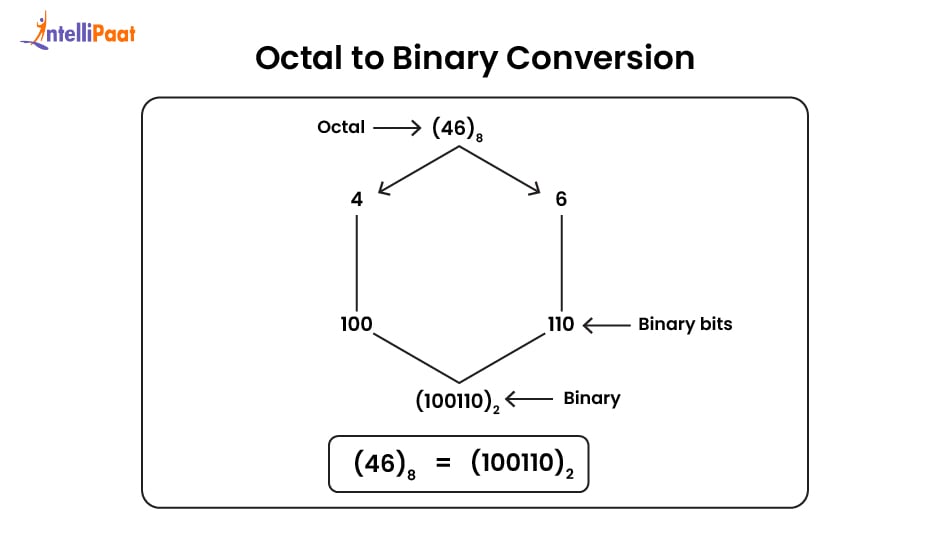

Octal to Binary Conversion
Octal-to-binary conversion is a direct and efficient process because each octal digit maps precisely to a three-bit binary equivalent. This relationship simplifies conversion and is widely used in computing and digital electronics to represent binary values more compactly.
Steps to Convert Octal to Binary:
Step 1: Write down the given octal number.
Step 2: Separate the number into individual digits.
Step 3: Convert each octal digit into its 3-bit binary equivalent using a reference table.
Step 4: Combine all the 3-bit binary groups in the same order to form the full binary number.
Step 5: If necessary, remove any leading zeros from the final result.

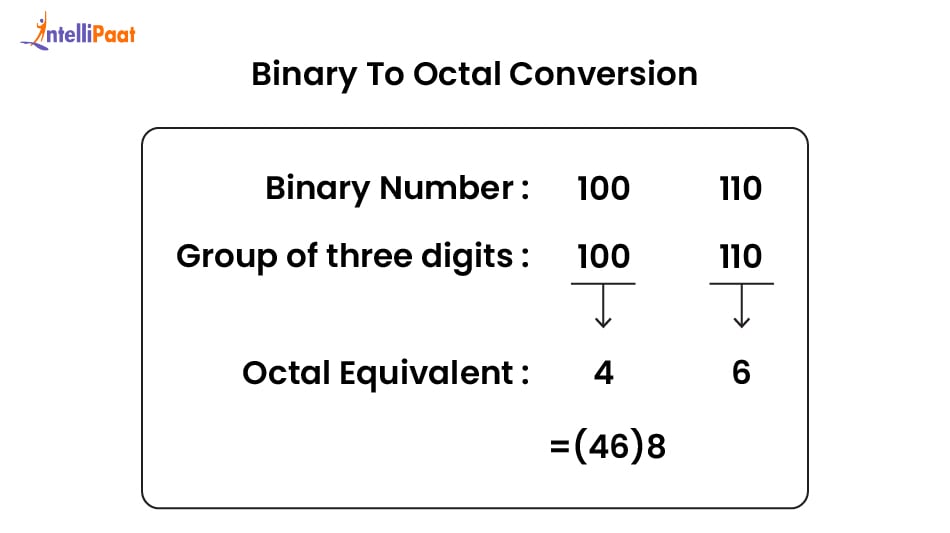

Binary to Octal Conversion
Binary to octal conversion is a convenient method to simplify long binary numbers. Since one octal digit represents exactly three binary digits, you can convert binary to octal by grouping bits and replacing each group with its octal equivalent. This method is frequently used in computing for a compact and readable representation of binary values.
Steps to Convert Binary to Octal:
Step 1: Write down the binary number.
Step 2: Starting from the right side, split the binary number into groups of three digits each.
Step 3: If the leftmost group has fewer than three digits, add extra zeros at the front to make it three digits.
Step 4: Convert each group of three binary digits into its octal equivalent (0 to 7).
Step 5: Write all the octal digits together to get the final octal number.
Octal to Binary Conversion in Python
The octal-to-binary conversion process can convert a base-8 number to its equivalent in base-2. You can do this in Python using built-in functions, custom logic, or positional lookups. Below are four widely used conversion methods:
1. Using Built-in bin() and int() Functions
Python has built-in functions to make the conversion process simple. In our example, int() will read the 7 in octal, convert to decimal, and bin() will read the integer numeral and convert to binary.
Example:
Output:
Explanation: Here, the octal number is converted to a decimal using int(octal_number, 8). Then, bin() turns the decimal into binary. A slice [2:] is applied to avoid the added prefix of 0b in Python.
2. Using Custom Function with Look-Up Dictionary
The octal characters are to be translated to 3-bit binary. The technique provides smoothly and correctly translated data since it refers to predetermined mappings.
Example:
Output:
Explanation: Here, each digit of the octal number “632” is converted to its 3-bit binary form using a predefined dictionary for accurate mapping.
Get 100% Hike!
Master Most in Demand Skills Now!
3. Using Loop and String Concatenation
Binary encoding of the octal numbers is performed manually by division by 2 and taking remainders. The resultant bits are subsequently padded to 3 decimal points before they are added to the result.
Example:
Output:
Explanation: Here, each digit of the octal number “218” is first converted to decimal, then manually broken into a 3-bit binary string using bitwise operations and added to the final binary result.
The format () method represents an octal digit number as a binary number by formatting it into a base and a padding value. It makes the conversion easy without manually calculating or using look-up tables.
Example:
Output:
Explanation: Here, the format() method converts each digit of the octal number “8421” into a 3-digit binary string, where ’03b’ ensures proper padding to maintain 3 bits per digit.
Importance of Octal to Binary Conversion
Converting octal to binary is very important in computer science and digital systems. It helps link the simple, easy-to-read shorthand format with the binary code used at the machine level.
- Simple Mapping: Each octal digit is converted into a 3-bit binary block, making it very easy and reliable.
- Readability: Octal provides a shorter form of long binary strings, so they are easier to read and write.
- Conceptual Clarity: Understanding this conversion improves knowledge of number bases and how to convert between them.
- Binary Organization: Bits are grouped in threes in octal form, which keeps them neat and well-ordered.
- Human-Machine Bridge: Octal acts as a shortcut between the numbers people read and the binary code machines use.
Best Practices in Python for Octal to Binary Conversion
To convert octal to binary using Python accurately and clearly, follow these best practices to avoid errors and write clean, readable code.
- Always Provide Base in int(): When converting an octal string to decimal, pass 8 as the base in int() to ensure correct interpretation.
- Remove Binary Prefix for Clean Output: The bin() function adds a 0b prefix to binary results. Remove this prefix when displaying or further using the binary string.
- Validate Input Before Conversion: Restrict input to digits 0 through 7 to avoid errors. Invalid input raises a ValueError, preventing conversion.
- Use Consistent Padding for Binary Groups: When manually converting, pad each binary group to 3 bits to keep the format accurate and organized.
- Use Python Built-in Functions: Use functions like int() and bin() for conversion to make your code simpler and less error-prone.
Applications of Octal to Binary Conversion
Octal to binary conversion is important because it simplifies how humans read and write numbers while allowing machines to process data efficiently. Let’s explore some of the important applications of this conversion.
1. Digital Electronics: Octal simplifies the representation of binary signals in circuit design, making analysis and debugging easier.
2. Assembly Language Programming: Octal codes are often used to represent machine instructions clearly and compactly.
3. Memory Addressing: Embedded systems use octal to encode memory addresses and control bits efficiently.
4. Data Compression: Grouping binary data into octal digits helps reduce storage space while preserving exact bit values.
Start Coding in Python for Free: No Experience Needed!
Begin writing real Python code through interactive, beginner-friendly modules—completely free.
Conclusion
Octal to binary conversion is important in both digital electronics and programming. It makes working with binary data simpler to read and understand without losing accuracy. Programmers need to understand how octal relates to binary to write efficient code, solve hardware-level problems, and clearly see how data is handled by the machine. Using this in real projects helps manage data better, reduce errors, and boost performance in software development and hardware design.
Take your skills to the next level by enrolling in the Python Course today and gaining hands-on experience. Also, prepare for job interviews with Python Interview Questions prepared by industry experts.
Octal to Binary Conversion – FAQs
Q1. What is the easiest way to convert octal to binary?
The easiest way is to replace each octal digit with its 3-bit binary equivalent using a reference table.
Q2. Why is octal used instead of binary in digital systems?
Octal makes long binary strings shorter, which helps make them easier to read and work with.
Q3. Can octal to binary conversion be done in Python?
Yes, Python provides simple methods like int() and bin() to perform the conversion easily.
Q4. How many binary digits does one octal digit represent?
One octal digit always maps to exactly three binary digits.
Q5. Where is octal to binary conversion commonly used?
It is widely used in embedded systems, microprocessor programming, and digital electronics.
