A Real-Time Operating System (RTOS) is designed to manage tasks that must be completed within strict time limits. In today’s world, time-sensitive systems are found in many areas such as medical devices, automotive control systems, and industrial automation. These systems rely on the operating system to carry out critical operations when needed. An RTOS is built to meet these requirements by ensuring that important tasks are executed at the right time. In this blog, you will learn what real-time operating systems are, the different types that exist, and how they work in detail.
Table of Contents:

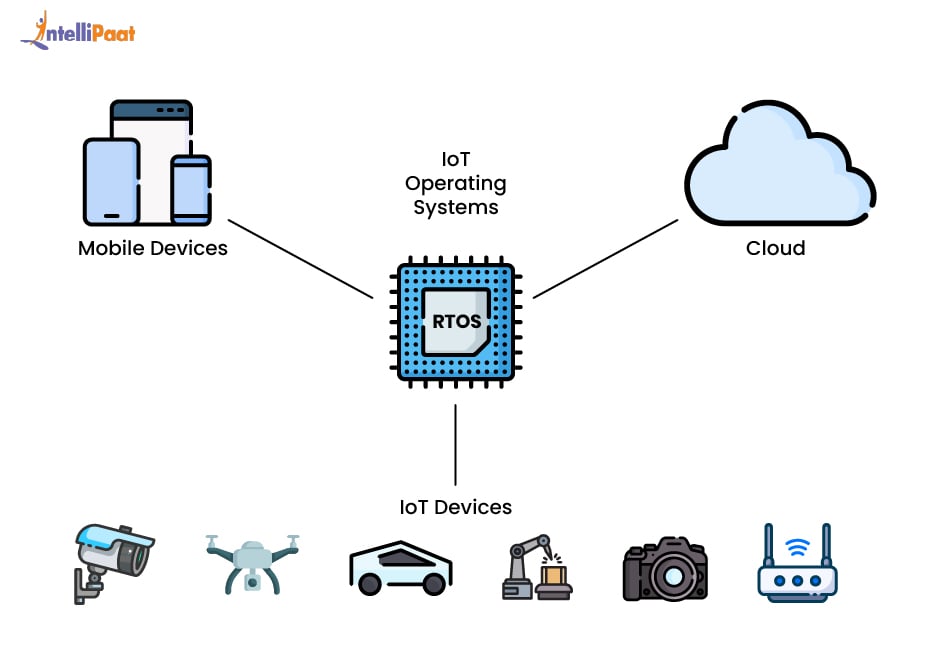

What is a Real-Time Operating System (RTOS)?
A real-time operating system is an operating system that is used to process data and execute tasks that must be completed within a defined time frame. It is used in conditions where timing plays an important role. Unlike general-purpose operating systems (like Windows or Android), an RTOS executes tasks with minimal latency and consistent timing.
Example: A heart rate monitor in a hospital must show the heart rate of the patients immediately. An RTOS ensures there is no delay, which is critical for patient safety.
Become a Job-Ready Software Engineer
Master coding, system design, and real-world projects with expert mentors. Get certified and land your dream tech job
RTOS Examples
- FreeRTOS: A lightweight, open-source RTOS widely used in embedded and IoT devices. It supports real-time scheduling and is highly modular for various applications.
- VxWorks: A commercial RTOS known for its reliability and use in aerospace, defense, and industrial automation systems. It is designed for hard real-time performance.
- RTLinux: A real-time extension of the Linux kernel that allows Linux systems to handle time-critical tasks without delays. Ideal for robotics and industrial systems.
- QNX: A microkernel-based RTOS famous for safety-critical applications in automotive and medical devices. It provides high reliability and fault tolerance.
- ThreadX: A compact RTOS optimized for embedded systems with fast context switching, preemptive scheduling, and minimal footprint.
Key Characteristics of a Real-Time Operating System
Let’s look at some characteristics of a real-time operating system:
1. Deterministic Behavior: An RTOS enforces strict timing constraints, ensuring tasks always execute within defined time bounds.
2. Fast Response: An RTOS can respond to events in milliseconds. Low latency is important in real-time applications.
3. Priority-Based Scheduling: RTOS assigns priorities to tasks. If a higher-priority task becomes ready while a lower-priority task is running, the RTOS will preempt the lower-priority task to execute the higher-priority one.
4. Multitasking: An RTOS is capable of executing multiple concurrent tasks but manages them all so that each will get its required time.
5. Reliability: An RTOS must run continuously without failure, especially in safety-critical systems like airplanes or medical devices, where a crash can be dangerous.
6. Minimal Delays: An RTOS reduces timing variations (called jitter), making sure tasks run steadily and at the right time without unexpected delays.

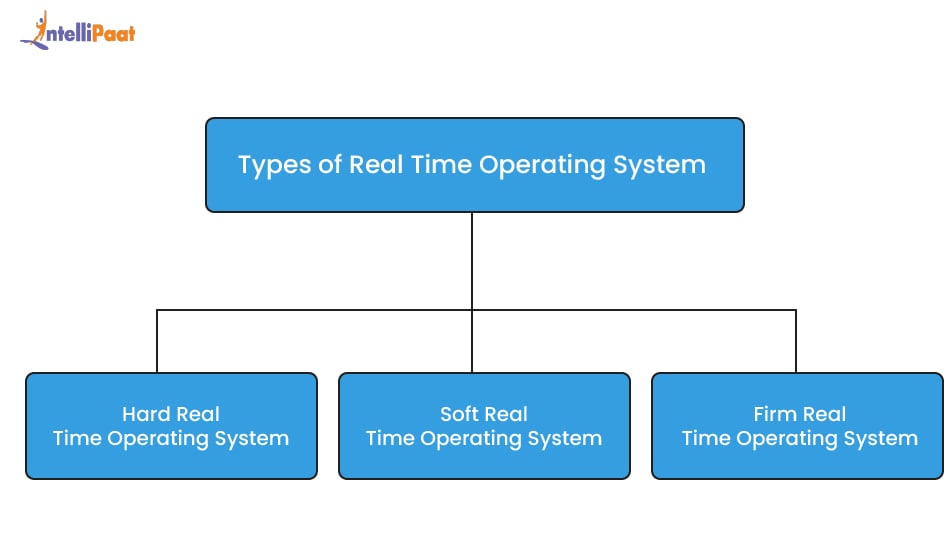

Types of Real-Time Operating Systems
A Real-Time Operating System is divided into three main types:
1. Hard Real-Time Operating System
A hard real-time operating system must finish every task by its deadline. Any risk of delay is not tolerable. If the system misses a timing requirement, it may cause damage or danger.
Key Features:
- Guaranteed timely task completion.
- No tolerance for delay or failure.
- Strict priority-based scheduling.
- Highly reliable and stable.
- Used in life-critical systems.
2. Soft Real-Time Operating System
A soft real-time operating system tries to finish tasks on time, but small delays are allowed. These delays usually don’t cause critical issues. It offers a good mix of speed and flexibility, which makes it a good choice for systems like mobile phones, video players, and games.
Key Features:
- Tasks should try to meet deadlines, but risk tolerance is relatively high.
- Good for applications focused on user experience.
- Less strict than a hard RTOS.
- Easier to implement.
- Used in media, games, and mobile systems.
3. Firm Real-Time Operating System
This type of operating system lies between a hard and soft real-time operating system. Deadlines that are missed can occur from time to time, but in the case of regular delays, missed deadlines create a problem. If too many deadlines are missed, then the performance and data quality are degraded.
Key Features:
- Deadlines can be missed from time to time.
- Designed for systems where performance is an issue.
- Tasks should meet deadlines as repeated delays reduce performance.
- Deals with tasks of moderate criticality.
- Utilized in trading systems and smart grid systems.
Working of a Real-Time Operating System (RTOS)
Step 1: Task Creation
The first step is to create various tasks for the system to accomplish. Each task is created with a defined purpose (reading sensors, displaying output, controlling a motor, etc.) and deadline. A deadline means that the task must be completed within a defined time. Missing a deadline may cause the system to fail in meeting its intended purpose.
Step 2: Task Priority
After all the tasks are created, the real-time operating system will assign a priority level to each task. The priority indicates how important the task is and determines the order in which tasks should be executed. For example, in a car, deploying the airbag is more critical than turning on the music system, and the RTOS can use the priority levels to determine the necessary order of operation for tasks.
Step 3: Task Scheduling
This is where the real-time operating system scheduler comes into play, which acts as the primary controller of task execution. The scheduler determines which tasks are ready (nothing preventing them from running) and which one has the highest priority. If one task is running, and another task of higher priority becomes ready, the real-time operating system will stop running the lower-priority task and start the higher-priority task. This is an example of a feature called preemptive scheduling, and it helps to maintain accurate timing.
Step 4: Task handling
As tasks are scheduled, they are assigned to the processor. The real-time operating system (RTOS) monitors how long each task runs and whether it blocks other tasks. It keeps track of all tasks and can pause any task that runs too long, switching to another task that requires attention. This ensures every task gets a fair share of processing time and prevents delays, so all tasks meet their deadlines.
Step 5: Interrupt Handling
When tasks are running, they can be interrupted. These interruptions are called interrupts. For example, if a sensor sends a signal that causes a special condition, it will need to be reacted to immediately. In this case, the RTOS will stop the running task, react to the interrupt (for example, get a reading from the sensor), and then return to the previous task. The ability to react to changes quickly helps keep the entire system running smoothly.
Step 6: Time/Countdown Timers
A real-time operating system has an internal real-time clock that allows it to track timing for tasks and notifies the kernel to start and restart tasks at the expected times. This is important in a real-time system because if a system is late by a short margin, it can cause problems. The real-time clock also helps schedule recurring tasks, such as logging temperature readings every second.
Step 7: Communication Between Tasks
In many systems, tasks need to share data or send messages to each other. An RTOS helps manage this safely using tools like message queues, semaphores, and signals. These tools prevent confusion or errors when multiple tasks try to access the same data at once.
Step 8: Completing and Regaining Control of Tasks
As soon as a task finishes or gets blocked, the RTOS checks the task list again and picks the next highest-priority task based on timing or required action. The RTOS runs in a continuous loop, managing tasks without failure to ensure everything stays organized, on time, and dependable.
Get 100% Hike!
Master Most in Demand Skills Now!
Core Components of a Real-Time Operating System
Let’s explore some core components of a real-time operating system:
1. Scheduler
The scheduler is the core component of the RTOS. It is responsible for determining which task is permitted to run, and in which order. The scheduler makes sure that all high-priority tasks run with minimal delay.
2. Task/Thread Management
This section defines how tasks (or threads) can be created, executed, suspended, and deleted. It also allows the system to track their status, like ready, running, or waiting.
3. Interrupt Handler
An interrupt is a signal indicating an event that needs immediate attention, often from hardware. It saves the current task, processes the interrupt, and returns to normal work.
4. Timer/Clock
An RTOS uses a real-time clock and timers to track system time, control task delays, and schedule tasks to run or repeat at specific intervals, ensuring timely operations.
5. Inter-Task Communication System
An inter-task communication system allows tasks to interact using signals, message queues, semaphores, or shared memory. This coordination helps them share data and resources safely while working together efficiently.
Advantages and Disadvantages of RTOS
A Real-Time Operating System (RTOS) is used in systems that need to respond quickly and accurately, like medical devices, cars, or industrial machines. It helps manage tasks that must be done on time. While RTOS has many benefits, it also comes with some drawbacks. Let’s look at both the advantages and disadvantages below.
Advantages of Real-Time Operating System
Let’s explore some of the advantages of real-time operating systems:
- Fast Reaction: A Real-Time Operating System responds to events within milliseconds, making it ideal for time-sensitive systems.
- Efficient Multitasking: It can handle multiple tasks at the same time without causing delays.
- Dependable Performance: RTOS delivers stable and reliable performance, which is crucial for critical systems like medical or defense equipment.
- Low Latency: It quickly executes tasks when required, offering minimal wait time and high accuracy.
Disadvantages of Real-Time Operating System
Let’s explore some of the disadvantages of real-time operating systems:
- Complicated Design: RTOS can be hard to program and design, especially for those new to real-time systems.
- Limited User Interface: Many real-time operating systems lack a user-friendly interface, making them difficult to use for beginners.
- High Cost: Some RTOS software and tools are expensive, particularly in advanced systems.
- More Resource Usage: Few real-time operating systems need more memory and power, which may not suit ultra-low-power devices.
Difference Between Real-Time Operating System and General-Purpose Operating System
Feature |
Real-Time Operating System (RTOS) |
General-Purpose Operating System (GPOS) |
Timing |
Real-time operating systems are strict and predictable. |
General-purpose operating systems are flexible and not time-bounded. |
Task Priority |
Tasks are completed according to priority. |
GPOS treat all tasks equally, without focusing on time-critical operations. |
Response Time |
The response time of real-time operating systems is very fast (within milliseconds). |
The response time of a general-purpose operating system is slower and may take seconds. |
Use Case |
Used in embedded systems and critical systems.
|
Used in desktops, laptops, and smartphones. |
Design Complexity |
Simple interface but complex logic. |
Rich interface with general logic. |
Example |
FreeRTOS, VxWorks, RTLinux. |
Windows, macOS, Ubuntu. |
Key Factors to Consider When Choosing an RTOS
Let’s explore some key factors that must be considered while choosing a real-time operating system:
1. Task Timing and Deadlines: Choose an RTOS that supports the timing needs of your system, whether it is hard, soft, or firm real-time.
2. Memory and Resources: Pick one that fits your device’s limits. Some need very little memory, while others require more.
3. Reliability and Stability: For critical systems like medical or aerospace, go with an RTOS known for being reliable and stable.
4. Scheduling Method: Check if the RTOS uses preemptive or cooperative scheduling. This affects how quickly it handles multiple tasks.
5. Ease of Development: Choose a platform that comes with good documentation, helpful tools, and strong community support.
6. Cost and Licensing: Some RTOS options are free, like FreeRTOS. Others are paid. Choose what works for your budget and needs.
Use Cases of Real-Time Operating System
Real-time operating systems are used where responses are accurate and quick. Let’s explore some of the real-world examples:
- Embedded Systems: RTOS ensures deterministic task execution in microcontrollers, sensors, and small electronic devices. It helps maintain precise timing in industrial and consumer electronics.
- IoT Devices: RTOS manages multiple sensor inputs, communication, and low-power operation for smart devices, gateways, and edge computing nodes.
- Robotics: RTOS provides precise motion control, sensor integration, and real-time decision-making, essential for autonomous and industrial robots.
- Drones: Real-time scheduling ensures stability, accurate flight control, and quick response to environmental changes in UAVs.
- Avionics: RTOS guarantees the timely execution of flight control, navigation, and safety-critical systems in aircraft and spacecraft.
Future of RTOS in AI, IoT, and Autonomous Systems
- AI-Enabled Devices: RTOS provides low-latency task handling for real-time AI inference in robotics and industrial automation.
- IoT Devices: Efficient task scheduling and low power usage make RTOS ideal for IoT sensors, smart appliances, and edge computing.
- Autonomous Vehicles: Ensures timely processing of sensor data, obstacle detection, and decision-making in self-driving cars and drones.
- Predictive Maintenance & Smart Grids: Supports high-precision timing for an AI-driven monitoring system.
Conclusion
A Real-Time Operating System (RTOS) is essential for systems where timing, precision, and fast responses are critical. It is used in technologies like medical devices, smart vehicles, and industrial machines. Unlike general-purpose operating systems that may be fast but not predictable, an RTOS makes sure tasks are completed exactly when they are needed. It offers consistent and reliable performance, helping maintain safety, stability, and efficiency in time-sensitive situations.
Take your skills to the next level by enrolling in the Software Engineering Course today and gain hands-on experience. Also, prepare for job interviews with Interview Questions prepared by industry experts.
Check other blogs related to the Operating System by Intellipaat:
Real Time Operating System (RTOS)
Q1. Why do some systems need an RTOS instead of a regular OS?
Certain systems, like heart monitors or self-driving cars, cannot afford delays. An RTOS guarantees tasks complete exactly when they should
Q2. What happens if a task misses its deadline in an RTOS?
It depends on the type: in hard RTOS, it can be catastrophic; in soft RTOS, minor delays are acceptable; in firm RTOS, repeated misses affect performance.
Q3. How does an RTOS prioritize tasks?
It assigns each task a priority. Higher-priority tasks can interrupt lower-priority ones to make sure critical operations run on time.
Q4. How is RTOS different from a normal OS??
RTOS mainly focuses on speed and predictability, while a normal OS focuses on user experience.
Q5. Can RTOS run multiple tasks?
Yes, RTOS can run multiple tasks based on priority and timing.
Q6. What makes an RTOS “deterministic”?
Determinism means the system’s behavior is predictable. A task will always complete in a known maximum time, avoiding surprises in critical operations.
Q7. How does RTOS handle unexpected events?
Through interrupts. The RTOS pauses current tasks, handles the event immediately, and resumes normal operation seamlessly.
