V-Model: Phases, Principles & Challenges

In software engineering, the V-Model is one of the most popular approaches for linking each stage of development with its corresponding testing phase. It provides a clear and structured process, ensuring that every step is thoroughly tested and verified. By promoting early error detection and encouraging better communication within the team, the V-Model helps to improve overall software quality. It’s beneficial for projects with well-defined requirements, fixed deadlines, and a strong need for reliability. In this blog, you will explore the V-Model, its basic principles, and why it is important in software projects.

Table of Contents:

• What is the V-Model?
• Principles of the V-Model
• Importance of the V-Model
• Phases of the V-Model in Software Engineering
  1. Verification Phases
  2. Validation Phases
• When to Use the V-Model?
• Challenges of the V-Model in Software Engineering
• Applications of the V-Model
• Conclusion

What is the V-Model?

The V-Model, also known as the Software Development Life Cycle V-Model (SDLC V-Model), is a structured software development approach where each development phase has a corresponding testing phase.

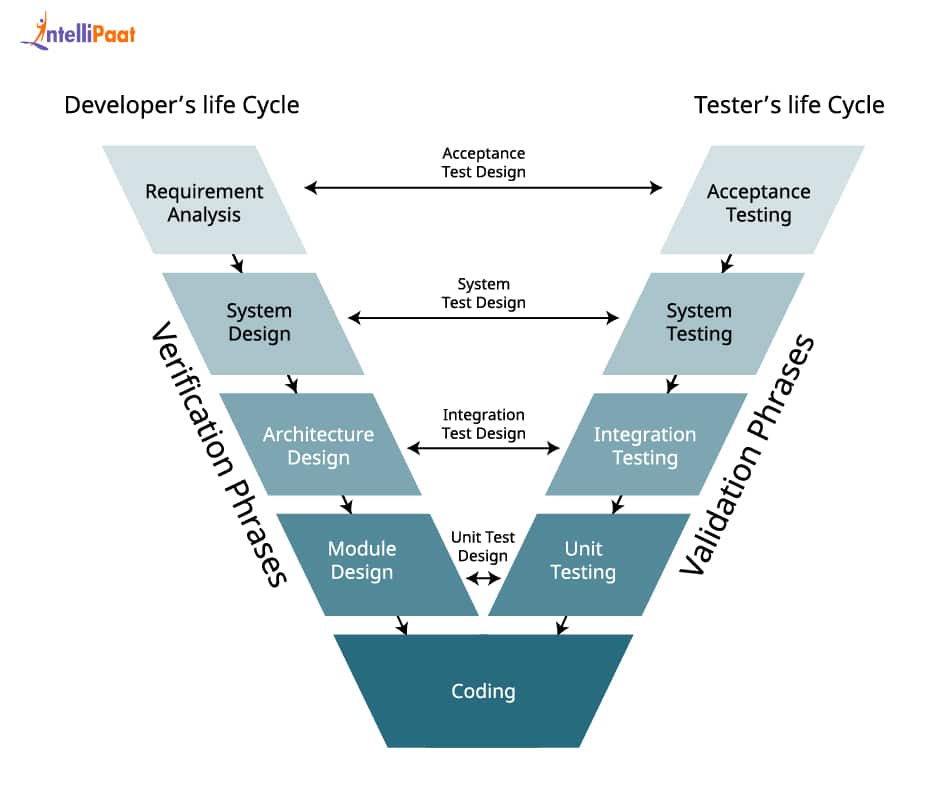

It gets its name from the “V” shape created when the process is diagrammed:

• The left side of the “V” represents the development stages, such as requirement analysis and system design.
• The right side mirrors those stages with corresponding testing phases, like unit testing, integration testing, and system testing.
• The coding phase sits at the bottom point of the “V”, connecting both sides.

One of the key strengths of the V-Model is its focus on early testing. By planning test activities alongside development tasks, teams can catch defects early and ensure higher software quality throughout the process.

Principles of the V-Model

The V-Model in software engineering is based on principles such as:

1. Each stage has a test plan

Software testing activities are planned with the development phases. In other words, while requirements are being gathered, the acceptance testing cases are being planned too. This allows you to double-check that nothing has been forgotten and that there is a proper testing process for every stage.

2. Step-by-step development

The work can proceed in an ordered and structured manner from one phase to the next. The next phase will not start until the previous phase has been completed. This is an effective way for the team to be organized and keep to a plan. It is important to go through each development and testing stage carefully. Skipping or rushing any part can cause problems later.

3. Early Testing

Early involvement in testing helps identify mistakes at the beginning, such as incorrect requirements or flaws in designs. It also helps in making the entire process more efficient by reducing the rework.

4. Validation at every stage

Verification and validation take place at every stage before going to the next stage. The product is monitored and tested continuously to ensure that it meets customer requirements. This principle helps in reducing errors and leads to a more reliable product.

5. Documentation

Detailed documentation created at every step helps in tracking and providing more transparency. Documentation allows team members to see what has been done and what they need to do. It will also allow for better communication, future updates, and maintenance of the software.

Level Up Your Coding Career

Join our premium software engineering course and get job-ready with real-world experience.

Explore Program

Importance of the V-Model

The V-Model is important to software development for many reasons. Below are a few benefits of using the V-Model:

1. Early Defect Identification

The key benefit of the V-Model is that it helps find defects earlier. Because testing starts in the early stages of development, both developers and testers are able to identify errors in requirements or design before code is written. This saves time and cost because fixing defects is always easier at the beginning than later in the project.

2. Identifying development and testing phases

The V-Model clearly links each development stage with its corresponding testing phase.

Example:

• Requirements phase -> Acceptance Testing
• Design phase -> System Testing
• Detailed Design -> Integration Testing
• Coding phase -> Unit Testing

This structure helps team members understand exactly what tasks to perform at each stage.

3. Prevents “Big Bang” Testing

In some methodologies, all testing is done after the complete development. This is referred to as “Big Bang” Testing. This always results in missed bugs or poor-quality products. This model avoids the problems associated with this “Big Bang” approach since each part is tested in the development phase.

4. Enhances Collaboration

The V-Model demands strong communication between developers and testers as both work closely from the start. They can share ideas, raise doubts, and improve the overall design. This teamwork helps in providing better results and faster development of the product.

5. Improved Quality Assurance

Quality is built into the product from the start since developers and testers truly begin their work concurrently. There is a clearer focus on not only finishing the code but also making sure that it works well, meets user needs, and has fewer bugs. This helps in making the performance of the product better and achieving higher customer satisfaction.

Phases of the V-Model in Software Engineering

The V-Model is divided into two parts:

• Verification Phases: The developmental phase of the system, where you will plan and design the system.
• Validation Phases: The test phase of the system, where you check and verify the system.

The coding phase lies at the bottom of the V, which brings the two sides together.

Now we will discuss each phase more thoroughly:

1. Verification Phases

These stages focus on creating the system in increments and ensuring everything has been clarified before it is produced.

1. Requirement Gathering

During the requirement analysis phase, the team gathers and analyzes the requirements needed from the software by the users/clients. All requirements are documented in writing. The documented requirements will later be used to verify the final product.

2. System Design

Next, a high-level structure of the system is developed based on the requirements. This high-level structure indicates the overall structure of the software, the number of components, and how they connect. This will serve as a basis for the majority of the development work.

3. Architecture Design

Sometimes referred to as high-level design, this part of the process establishes the architecture of the overall system. The system is broken down into modules or parts, and the architecture is described to show how these modules will communicate and what technology will be used.

4. Module Design

Sometimes referred to as detailed design, this part of the process focuses on every single module. The goal is to define exactly how each module will work. Building algorithms, logic, and data structures will take place in the module design phase.

5. Coding Phase

This is the central phase of the V-Model. In this stage, developers write the actual code for each module based on the design. Once the coding is done, the testing stages begin.

2. Validation Phases

These phases are focused on examination and experimentation with the software to ensure correct function and whether user requirements have been met.

1. Unit Testing

In this phase, we check each module independently with regard to whether it works. Unit Testing is about finding bugs in small pieces of code before the pieces are attached to other pieces.

2. Integration Testing

After each module is tested on its own, they are combined and tested together. Integration testing makes sure the modules work properly as a group. It helps find issues in how the modules work with each other.

3. System Testing

The system is now tested as a complete system. This stage ensures that the entire software application meets the design and functions correctly. Testing includes measuring performance, security, and behavior.

4. User Acceptance Testing (UAT)

User Acceptance Testing (UAT) is the last phase of testing. The software is demonstrated to the end users or clients to ensure that it is acceptable to them. If the end users or clients approve the software, it can be deployed.

When to Use the V-Model?

The V-Model works well on projects with simple, complete, and well-defined requirements. The V-Model is appropriate for environments where planning and documentation are very heavy. Each phase of the V-Model is complete before we go to the next, making it ideal for projects where we do not expect many changes to occur during the development stages of the project.

You should consider using the V-Model when:

1. The requirements are stable and have a low chance of change.
2. The project size, scope, and complexity are small to medium level, with a strong sense of what needs to be managed.
3. The team is experienced and familiar with the technology and tools.
4. The client or end users are expecting detailed documentation and validation along the way.
5. Quality, accuracy, and reliability are more important than flexibility.
6. You are working within a fixed budget or have tight timelines.
7. You require some early testing and error detection efforts for your project.

Challenges of the V-Model in Software Engineering

The V-Model has many advantages, like a clear structure and early testing. However, it may not work well for every project. Some common challenges are:

1. Limited Flexibility: The V-Model is not adaptable to change. Once development begins, updating requirements mid-process can be costly and time-consuming.

2. Delayed Feedback: Users don’t see the product until all development and testing are finished. This can lead to last-minute surprises or unmet expectations.

3. Documentation-Heavy: Every phase requires detailed documentation, which can slow progress and overwhelm teams that prefer faster, hands-on development.

4. High Requirement Dependency: The entire process relies on clear, accurate initial requirements. If these are flawed, the project is at risk even with proper execution.

5. Not Ideal for Complex Projects: Managing long-term or large-scale projects with the V-Model can be challenging. More flexible approaches like Agile may work better.

Applications of the V-Model

The V-Model is used in industries where quality and safety are very important. In these systems, software failure can lead to serious issues, so every critical part must be fully tested.

Here are some practical applications of V-Model:

1. Healthcare Systems: Medical software, such as hospital management systems, diagnostic tools, and medical devices, must be highly reliable. Given the critical nature of healthcare, even small bugs can have serious consequences. The V-Model supports this by ensuring every stage is fully tested in alignment with health and safety standards.

2. Aerospace and Defense: Software used in aircraft control systems and military defense must be completely error-free. The V-Model provides a structured approach to development and testing, ensuring every component is verified and validated to meet the highest safety requirements.

3. Automotive Sector: Software in vehicles, including features like automatic braking, airbag systems, and navigation, requires maximum reliability. The V-Model supports this need by defining clear development and testing stages, helping ensure safety and compliance with industry regulations.

4. Banking and Finance: Financial systems manage sensitive personal data and high-value transactions. They must be secure, reliable, and thoroughly tested. The V-Model adds value by ensuring consistent documentation, traceability, and comprehensive testing throughout the development process.

5. Embedded Systems: Embedded software is found in devices like smart appliances, industrial machinery, and IoT systems. These systems often operate in real-time and require high stability. The V-Model ensures that development and testing are tightly integrated, helping avoid failures in environments where updates can be difficult or impossible to deploy.

Conclusion

The V-Model is an effective software development model that links each development stage with a corresponding test stage, promotes the early detection of errors, improves quality, and ultimately ensures the final product meets the needs of the user. The V-Model is ideal for projects with clear and fixed requirements. It is very common in sectors like healthcare, aeronautical engineering, and banking where reliability, accuracy, and safety are paramount. The V-Model would be less suitable for projects with requirements that frequently change because it builds a rigid structure, leading to inflexibility. When implemented effectively, the V-Model provides a clear, methodical, and comprehensible approach to producing quality software systems.
