Abstract data types are the basic concepts in today’s world of computer science that help developers to manage and organize data efficiently. Whether you are working with lists, stacks, or queues, understanding the abstract data type is important for learning and solving questions in data structures and algorithms. In this article, we will discuss what an abstract data type is, its features, why it is important, its drawbacks, examples such as list, stack, and queue ADTs, and applications of ADTs.
Table of Contents:
What is an Abstract Data Type in Data Structures?
An Abstract data type in data structures is a theoretical concept that only defines a data structure in terms of how it behaves from the perspective of the user, rather than how to implement it. In simpler terms, we can say that an ADT defines what operations will be performed on your data, but does not define how you will perform those operations. Consequently, the user of an ADT needs to be familiar only with the operations, not the implementation logic.
It is called “abstract” because it portrays an implementation-independent view of the data structure. Moreover, in ADT, all of its internal details are hidden from the user, which allows for flexibility and modularity in programming. Examples of abstract data types in data structures are a list, a stack, a queue, etc.
Features of an Abstract Data Type
- Abstraction: ADTs provide a high-level view of the data structure. Thus, the users do not need to know how to implement the operations on the data structures; only important information is provided.
- Encapsulation: The internal implementation details are hidden, and only the interface is exposed to the user.
- Well-Defined Operations: The abstract data types specify a set of operations, such as insert, delete, and search, that can be performed on the data. These operations are clearly defined in terms of output, input, and behavior.
- Implementation Independence: Different data structures can implement the same ADT.
- Modularity: ADTs promote modular design, which helps different components of a program to be developed and tested independently.
- Reusability: An abstract data type can be reused in various programs without rewriting the implementation.
- Data Hiding: Users cannot access or modify the internal data directly, so this reduces the risk of accidental errors and enforces data integrity.
- Improved Maintainability: Since the implementation details are separated, changes in the implementation do not affect the code that uses the ADT. This makes the code easier to debug, test, and update.
Why Use ADTs?
Here are a few reasons why you should use abstract data types:
- The abstract data types simplify complex systems by giving a clear interface and hiding the implementation details.
- It improves the code reusability, as ADTs can be used across different programs without any changes.
- ADT enhances the maintainability since changes to the internal implementation do not affect the external code.
- It promotes the abstraction, which allows the developers to focus on what operations are needed rather than how they are performed.
- The abstract data types support modular programming, which makes it easier to develop, test, and debug individual components.
- It also ensures data integrity by restricting direct access to the internal representation of data.
Master Software Engineering and Boost Your Career.
Enroll for Online Certification Now!

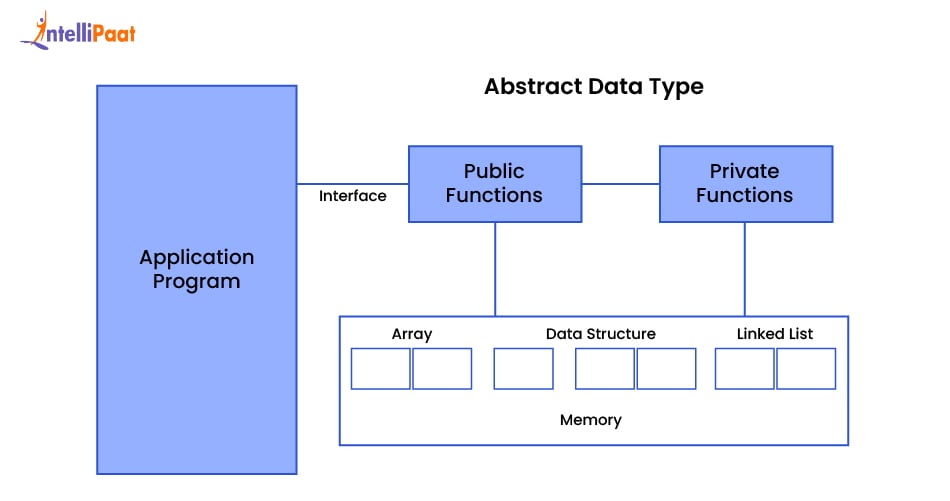

Abstract Data Type Model
The abstract data type model represents a logical framework for how the data is structured and manipulated without providing the details of implementation. It basically focuses on what operations are available and how they behave, rather than how they are implemented in memory.
Components of the ADT Model
Let’s discuss the components of the abstract data type model in detail:
1. Data
Data are the values or the elements that the abstract data type is designed to store and manipulate. It tells about the type and structure of the stored information, such as integers in a stack or key-value pairs in a map.
Example: integers in a stack, characters in a queue.
2. Operations
Operations are the functions or methods that define how the data within the ADT can be accessed, inserted, or manipulated. They specify what actions can be performed, such as insert(), delete(), push(), or pop(), without revealing how these actions are implemented internally.
Examples: insert(), delete(), search(), enqueue(), push(), pop().
3. Rules or Behavior
The rules or the behavior of an ADT tell us about how the abstract data type interprets its operations and the logical constraints followed. For example, you know that a stack works by following the LIFO (Last In, First Out) rule, and a queue follows the FIFO (First In, First Out) rule or principle. These rules make sure that the results of using the ADT work and give the expected and predictable results.
4. Interface
The interface is the set of operations that are public, allowing users a means of interacting with the ADT. The interface describes the actions that can be performed on the data, without defining the underlying implementation. The interface ensures the user has correctly followed the usage of the abstract data type without needing to know how the abstract data type works internally.
5. Implementation
The implementation is basically the underlying code and data structures, such as arrays, linked lists, trees, etc., used to implement the abstract data type. It is a hidden layer between the user and the implementation, which assures abstraction and allows the user to work with the ADT without knowing the internal implementation. This is beneficial in terms of flexibility and easier maintainability.
Get 100% Hike!
Master Most in Demand Skills Now!
Abstract Data Type Examples
Here are the three main examples of the abstract data type. Let’s discuss each in detail.

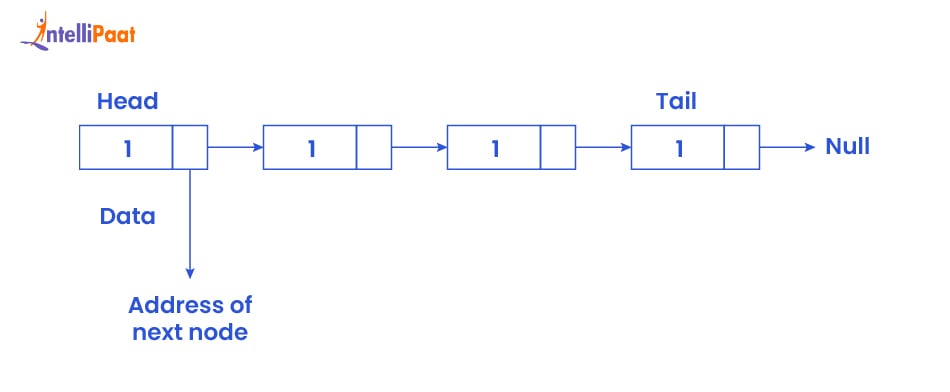

1. List ADT
A list ADT is a sequential list of elements in which elements are stored in a non-contiguous or contiguous manner using the nodes. This series of nodes is commonly known as a link, and each element of the chain is a node. The linking allows for easier insertion and deletion, particularly in linked list implementation cases, which makes a general form of List ADT.
Here are a few important points that you should know about List ADT:
- The common operations of a list ADT are insert(position, element), delete(position), get(position), search(element), and traverse().
- It maintains the order of insertion, which means that the elements can be accessed based on their position.
- It can be implemented using an array, a singly linked list, or a doubly linked list.
Let’s see its implementation in the C++ programming language.
Output:
Explanation: This C++ program is an example of a List Abstract Data Type (ADT) using the linked-list approach. It defines an interface (ListADT) that has the basic list operations of insert, remove, and display, and then provides an implementation for it in LinkedListList. In the main function, the program will insert some default values (10, 20, 30), remove one, and display the list both before and after removing the value from the list.

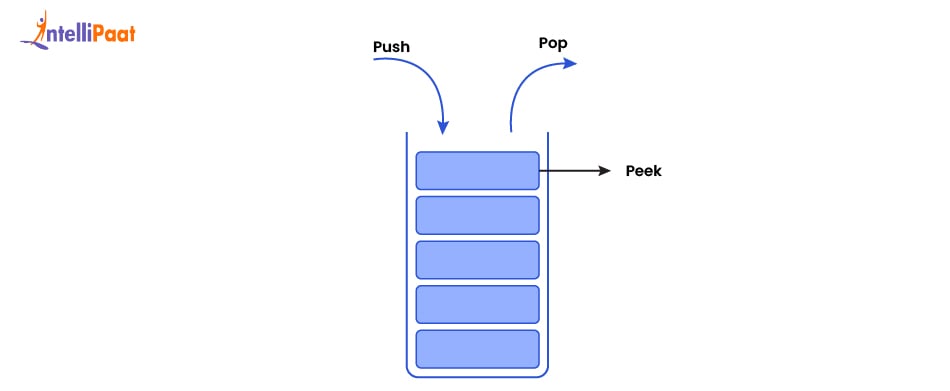

2. Stack ADT
A stack structure is a linear data structure to store data elements and allow access to them in a Last In, First Out (LIFO) manner. Elements are added and removed from the same end, which is called the top of the stack. Because of its reverse access order, it is used for function calls, expression evaluation, and undo actions.
Here are a few important points that you should know about Stack ADT:
- The common operations of a stack ADT are push(element), pop(), peek(), and isEmpty().
- It uses the LIFO principle, due to which the last element added will be the first element to be removed.
- It can be implemented using an array or a linked list.
Let’s see its implementation in the C++ programming language.
Output:
Explanation: This C++ program showcases an array-based Stack Abstract Data Type (ADT). It creates a StackADT interface and implements that interface in ArrayStack using push, pop, and top. The main function shows how to push, get, and pop elements by separating implementation details from the user. Then, the top element and top after pop get printed to the console.

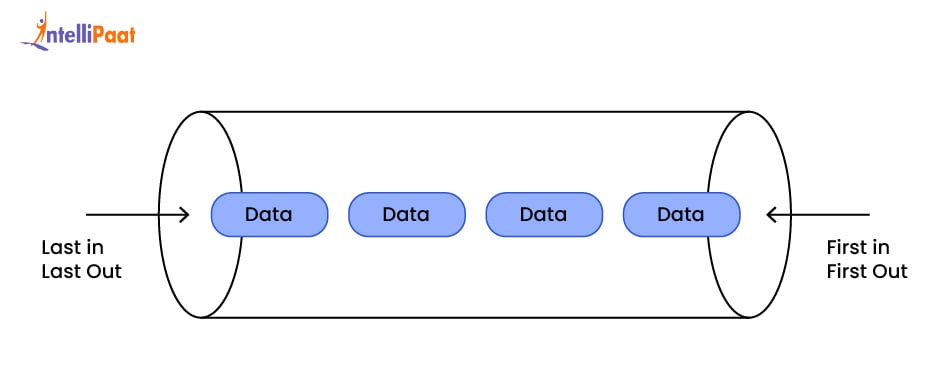

3. Queue ADT
A queue ADT is an ordered data structure that holds elements in the First In First Out (FIFO) order. It allows us to insert elements at the back and remove them from the front, just like people standing in a queue in real life. Queues are also used for scheduling, buffering, and resource management.
Here are a few important points that you should know about Queue ADT:
- The common operations of a queue ADT are enqueue(element), dequeue(), peek(), and isEmpty().
- The order of items is maintained by FIFO, due to which the element that is inserted first in the queue will also be removed first.
- It can be implemented using an array, a linked list, or a circular array.
Let’s see its implementation in the C++ programming language.
Output:
Explanation: This C++ program defines a Queue abstract data type and implements it using a simple array in the ArrayQueue class. The enqueue() function is used to put elements (5, 10, 15) onto the queue, the front() function is used to get the front element, and the dequeue() function will shift the front of the queue forward after it is called. The main function only interacts with the interface (not the implementation), demonstrating abstraction and encapsulation, and then the result is printed to the console.
Drawbacks of Abstract Data Types
- Performance Overhead: The operations may be slower than the direct data access, and thus give the performance overhead, due to the abstraction layers in ADTs.
- Complexity of Implementation: The designers of the abstract data type must create and implement it properly, which can be more complex and time-consuming.
- Limited Access: The user can only access data via defined operations, which may limit features.
- Harder to Debug: It may be harder to debug internal problems because the underlying structure is hidden.
- Learning Curve for New Users: For new learners, the abstract model and distinguishing between the interface and implementation may be confusing.
Applications and Use Cases of Abstract Data Types
- Abstract data types are used in operating systems, such as using stacks for handling function calls and queues for managing tasks.
- Stacks can be useful for undo/redo, matching brackets in code, and making decisions in puzzles like the 8-puzzle or Sudoku with backtracking.
- Queues have useful applications for printers, customer service systems, and scheduling tasks, where things happen in order.
- Lists are used for playlists, contact lists, and even anything else where items are stored sequentially.
- Deques are helpful for backtracking or distinguishing between a palindromic or non-palindromic string or tasks from either end.
- Sets are useful to store values based on uniqueness, such as usernames, and allow checking for duplicates.
- Maps, or dictionaries, are useful for storing values and quickly finding things using a “key”, for example, a word and its associated meaning.
Master C and DSA - Join the Free Course!
Start Learning for Free Today!
Conclusion
The primary purpose of abstract data types is to describe the operations that can be performed without reference to how these operations are implemented, and thus contribute to coding quality by hiding internal data structure details and providing the user with an interface. Features such as abstraction, encapsulation, implementation independence, and information hiding facilitate the development of complex systems. So, whether you are building a playlist, a task scheduler, or a memory manager, abstract data types provide you with the flexibility and structure that helps to create efficient applications.
Abstract Data Types in Data Structures- FAQ
Q1. What is the main purpose of using abstract data types?
The main purpose of using abstract data types is to simplify program design by hiding implementation details and only focusing on the important operations.
Q2. How are ADTs different from data structures?
The main difference between the abstract data types (ADTs) and data structures is that an ADT tells the behavior and operations of a data structure, while a data structure tells about the implementation.
Q3. Can an abstract data type have multiple implementations?
Yes, an abstract data type has multiple implementations. For example, a stack ADT can be implemented using either an array or a linked list.
Q4. Why are abstract data types important in programming?
The abstract data types are important in programming because they make code more reusable, modular, and easier to maintain due to abstraction.
Q5. Are ADTs only used in advanced systems?
No, abstract data types are used in everyday applications such as text editors, media players, web browsers, and operating systems.
