Euclidean Algorithm Explained: Visual Guide, and Real Examples

The Euclidean algorithm is a classic and efficient method for finding the greatest common divisor (GCD) of two numbers. It’s one of the oldest algorithms still in use—first described by the Greek mathematician Euclid (also happened to be the Father of Geometry) in his book Elements, all the way back in 300 BC.

The GCD (short for greatest common divisor) of two whole numbers is simply the largest positive number that divides both of them without leaving a remainder. In programming, this is typically implemented using either recursion or iteration, where we repeatedly divide and take the remainder until we hit zero.

Now, if you happened to be snoozing during your elementary school math lessons (no judgment, we’ve all been there), don’t worry. This article will walk you through a real example, show how the method works visually and geometrically, and brush up your understanding of this timeless technique. And for the coders among us, we’ll also include working code snippets in major programming languages.

Table of Contents:

• Euclidean Algorithm for Greatest Common Divisor (GCD)
• What You Just Did: Euclidean Algorithm In Formal Notation
• Walking the Algorithm Visually
  • Step 1: Try 18×18 squares
  • Step 2: Move to the leftover part (12×18)
  • Step 3: Tile the 6×12 area
• Implementing the Euclidean Algorithm in Modern Programming Languages
• What’s the Extended Euclidean Algorithm, and Why It Matters
• Real-Life Applications of the Euclidean Algorithm: Why You Should Care
  • Simplifying Ratios
  • Modular Arithmetic (And Everything Built On It)
  • Cryptography: The Algorithm Behind the Locks
  • Compiler Optimizations & Instruction Scheduling
• Closing Notes

Euclidean Algorithm for Greatest Common Divisor (GCD)

Let’s say we have two integers – 48 and 18.

We want to find their GCD using the Euclidean algorithm.

Step 1: Divide the larger number by the smaller one

So we write it like this:
48 = 2 × 18 + 12

Now, take the divisor (18) and the remainder (12) and repeat the process.

Step 2: Repeat with the previous divisor and remainder

Step 3: One more round

We’ve hit a remainder of 0, so we stop here.

The last non-zero remainder was 6, so GCD(48, 18) = 6

What You Just Did: Euclidean Algorithm In Formal Notation

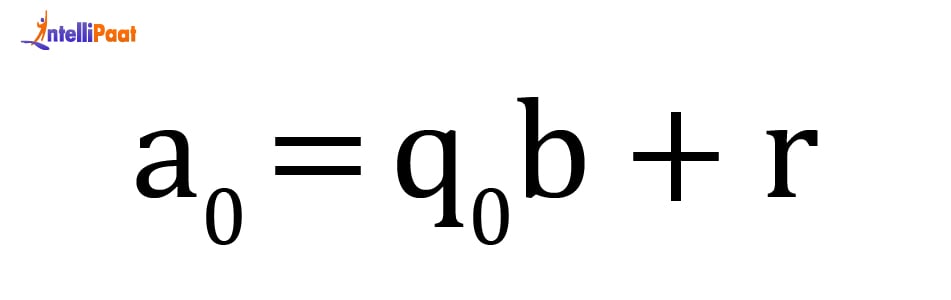

The Euclidean algorithm always follows this structure:

Where:

• a₀ is the larger number

• b is the smaller number

• q₀ is the quotient (how many times b fits into a)

• r is the remainder

You keep replacing a with b, and b with r, like this:

We keep repeating the k-steps interactive process until the remainder becomes zero. The last non-zero remainder is the GCD. In our example:

This is the Euclidean algorithm formula in action.
Next, we’ll show it as a visual flow so you can see how the remainders drive the process.

Walking the Algorithm Visually

To bring more clarity on the subject, let’s take a visual walk through the Euclidean Algorithm.

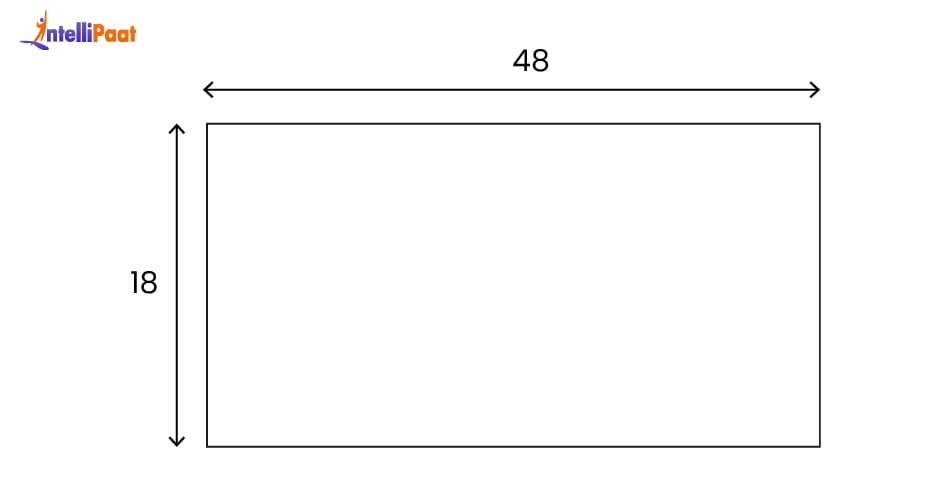

Let’s imagine a rectangle: 48 units long, 18 units wide

Think of it like a field. You want to tile this field perfectly using square tiles.
But not just any size — you want the biggest square that fits evenly.

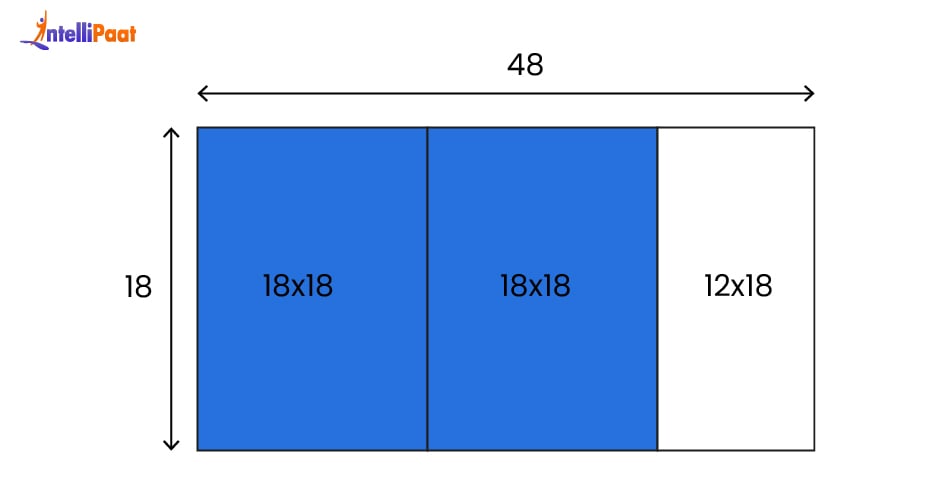

Step 1: Try 18×18 squares

Start by laying 18×18 squares along the 48-unit side.

You can fit two full squares (18 + 18 = 36), but you’re still left with 12 units of extra space.

That leftover 12×18 area is your new rectangle.

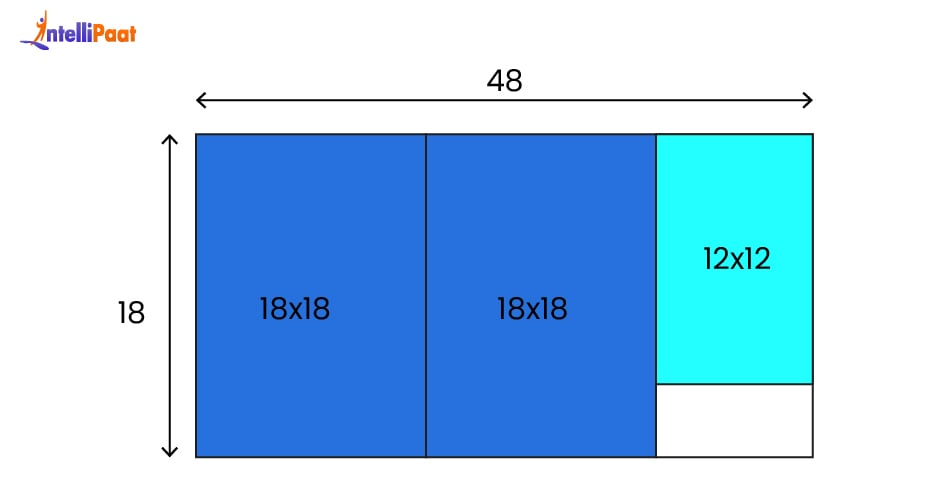

Step 2: Move to the leftover part (12×18)

Now ask — how many 12×12 squares fit along the 18-unit width?

You get one full square, with 6 units left over.

So now your remaining area is 6×12.

Step 3: Tile the 6×12 area

Fit 6×6 squares into the 12-unit length.
You get two perfect squares, no leftovers.

We’ve hit a clean fit. That’s your stopping point.

Implementing the Euclidean Algorithm in Modern Programming Languages

Euclid didn’t have Python or JavaScript, but the brilliance of his method still shines through in modern code. The heart of the Euclidean Algorithm is simple: keep dividing and replacing until the remainder becomes zero.

1. Python

def gcd(a, b):
    while b != 0:
        a, b = b, a % b
    return a

print(gcd(48, 18))

2. JavaScript

function gcd(a, b) {
  while (b !== 0) {
    let temp = b;
    b = a % b;
    a = temp;
  }
  return a;
}

console.log(gcd(48, 18));

3. C Programming Language

#include <stdio.h>

int gcd(int a, int b) {
    while (b != 0) {
        int temp = b;
        b = a % b;
        a = temp;
    }
    return a;
}

int main() {
    printf("%d\n", gcd(48, 18));  // Output: 6
    return 0;
}

4. C++

#include <iostream>
using namespace std;

int gcd(int a, int b) {
    while (b != 0) {
        int temp = b;
        b = a % b;
        a = temp;
    }
    return a;
}

int main() {
    cout << gcd(48, 18) << endl;  // Output: 6
    return 0;
}

5. C#

using System;

class Program {
    static int GCD(int a, int b) {
        while (b != 0) {
            int temp = b;
            b = a % b;
            a = temp;
        }
        return a;
    }

    static void Main() {
        Console.WriteLine(GCD(48, 18));  // Output: 6
    }
}

6. JAVA

public class GCD {
    public static int gcd(int a, int b) {
        while (b != 0) {
            int temp = b;
            b = a % b;
            a = temp;
        }
        return a;
    }

    public static void main(String[] args) {
        System.out.println(gcd(48, 18));  // Output: 6
    }
}

What’s the Extended Euclidean Algorithm, and Why It Matters

The basic Euclidean algorithm helps you find the GCD of two numbers. But the Extended Euclidean Algorithm takes it a step further — it finds how that GCD can be written using the original numbers themselves.

In other words, it gives you integers x and y such that:

What does that mean?

Let’s go back to our running example:

We know:

Now here’s the twist: the extended version tells us that you can write 6 as a combination of 48 and 18.

One valid solution is:

Therefore:

• x = -1

• y = 3


That’s what the Extended Euclidean Algorithm does — it shows how the GCD is stitched together from the two original numbers.

This isn’t just mathematical trivia.

This equation — ax + by = gcd(a, b) — is exactly what you need when working with:

• Modular inverses (e.g., solving ax ≡ 1 mod m)

• Key generation in RSA

• Diophantine equations

• And more broadly, Euclidean algorithm cryptography


If the classic version helps you divide things cleanly, the extended version lets you undo modular operations, which is essential in cryptography and secure systems.

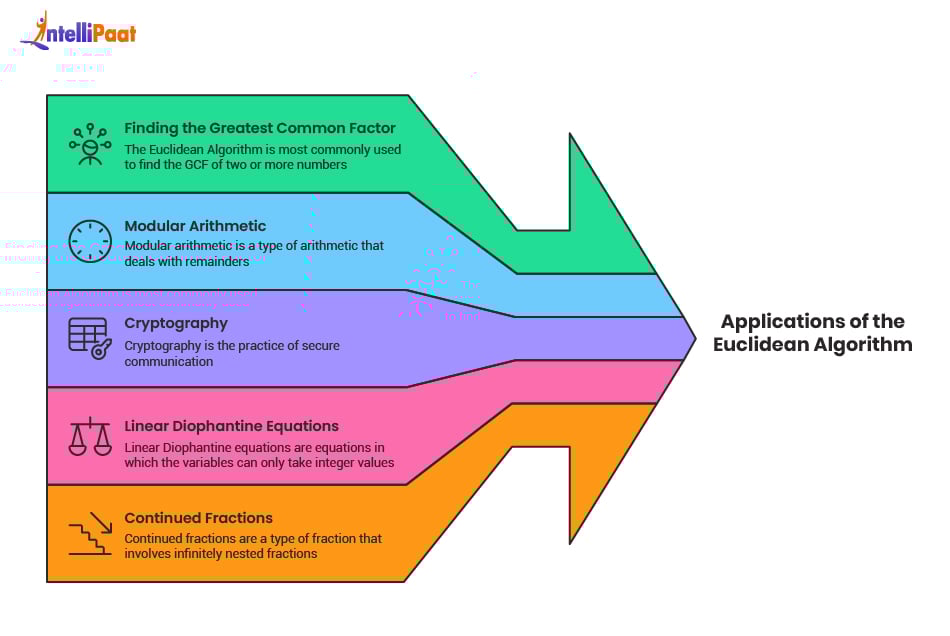

Real-Life Applications of the Euclidean Algorithm: Why You Should Care

The Euclidean Algorithm isn’t just a mathematical relic. It quietly supports a surprising range of things — from simplifying ratios to powering secure communication.

If you’re a student learning how things connect, or a developer working on something as complex as encryption or as simple as layout engines, this one algorithm is worth having in your mental toolbox. It’s small, sharp, and surprisingly powerful.

1. Simplifying Ratios

Whenever you reduce a ratio like 48:18 to its simplest form (which is 8:3), you’re really using the Euclidean Algorithm behind the scenes.

How? By finding the GCD of the two numbers and dividing both sides by it:

This is used in:

• Graphics (resizing images proportionally)

• Music software (normalizing beat patterns)

• Cooking apps (scaling recipes up or down)


It’s one of those quiet mathematical steps that make user-facing tools feel seamless.

2. Modular Arithmetic (And Everything Built On It)

The core of modular arithmetic — clock math, hash functions, secure keys — often needs operations like:

You can’t solve this without finding the modular inverse, and the only way to compute that efficiently is the Extended Euclidean Algorithm.

This shows up in:

• Scheduling systems

• Game development logic

• Blockchain consensus rules

• Financial models using modular math (like EMI tables or tax logic)

For bit-level comparisons, methods like Hamming Distance are used in fields such as error detection and binary data analysis. It approaches difference from a binary perspective rather than through arithmetic remainders.

3. Cryptography: The Algorithm Behind the Locks

The Euclidean Algorithm — especially its extended version — is essential in building public-key cryptosystems like RSA.

Here’s how:

• It’s used to generate keys (finding values that satisfy modular inverse relationships)

• It powers digital signatures

• It ensures private keys can’t be easily reversed, yet allows legitimate parties to decrypt using math


In short, no Euclidean algorithm = no secure communication on the internet.

This is why it’s often taught in cybersecurity courses, and why it appears in algorithms behind HTTPS, encrypted messaging apps, and banking protocols.

4. Compiler Optimizations & Instruction Scheduling

Modern compilers use variants of the Euclidean Algorithm for:

• Loop optimization (e.g., aligning iteration steps with GCDs)

• Register allocation where resource matching depends on GCD-related constraints

• Integer division simplifications using Euclid’s logic


Even things like resolving dependency graphs or optimizing how tasks are parallelized can lean on GCD calculations, especially in embedded systems or low-level firmware development.

So even though you don’t see it, the Euclidean Algorithm helps your code run smarter and faster under the hood.

Closing Notes

The Euclidean Algorithm is one of those rare ideas that’s both ancient and quietly modern. It doesn’t try to impress you with complexity. It simply works. Whether you’re reducing a ratio, optimizing a loop, or securing encrypted data, its logic holds steady.

What makes it timeless isn’t just how simple it is. It’s the way it keeps showing up in real problems. Once you understand how it works, you start noticing it in clean code, in efficient systems, and in the logic behind things that used to feel tough until they suddenly made sense. Perhaps, try it with different integers to retain the concept.

If you’ve followed the examples, visualized the rectangles, and tried the code, you’ve already got it. You now understand one of the most useful building blocks in both math and computing.

To explore how foundational algorithms like this one connect with data structures and real-world coding problems, you can check out this free C Data Structures course.

It’s a solid next step if you’re building up your problem-solving toolkit.
