Every database stores data in files for easy management, searchability, and modification. How you structure those records within a file can have a performance impact when accessing or changing data. This is referred to as file organization in DBMS. Having a good file organization method will enhance performance and maintain good use of storage while keeping data organized and structured in the database. In this blog, you will gain a clear understanding of file organization in DBMS, types of file organization, and best practices for effective management of files in a DBMS.
Table of Contents:
What is File Organization in DBMS?
File organization in a Database Management System (DBMS) refers to how the data is stored and organized in a database file. File organization defines how the DBMS saves records to storage and how it retrieves records to access when needed. The primary objective of file arrangement in DBMS systems is to make data storage and access efficient and easy. The organization of records in files in DBMS systems is important because it defines the speed at which a user or program can find and update data. If the file organization is designed well, the DBMS can process large amounts of data without degrading the performance of the system.
Importance of File Organization in DBMS
- Faster Access to Data: Data can be read and found quickly with the help of file organization in the DBMS. It helps in reducing the time needed to search the record and improves the speed of database operations.
- Use of Storage: Organization of files in dbms makes sure that the storage space is used properly. It also helps in avoiding the wastage of memory and keeps files compact.
- Better Data Management: It makes sure that the insertion, updation, and deletion of records are easier, and also keeps data safe and well-organized for smooth handling.
- Improved Indexing: File organization helps in improving indexing, which helps to make data retrieval faster.
Master SQL & Land Your Dream Data Job
Join our expert-led, hands-on SQL course designed to take you from beginner to pro
Types of File Organization in DBMS
Let us explore different types of file arrangement in DBMS:
1. Sequential File Organization in DBMS
In a DBMS, sequential file organization is the simplest method of storing data records sequentially. In this method, every record is saved one after another, just like books placed in a row on a bookshelf. In this arrangement, every record is stored one after another in sequential order. To find a record, the system will examine each record one at a time until the required record is reached.
There are two main types of sequential file organization:
- Pile File Method
- Sorted File Method.

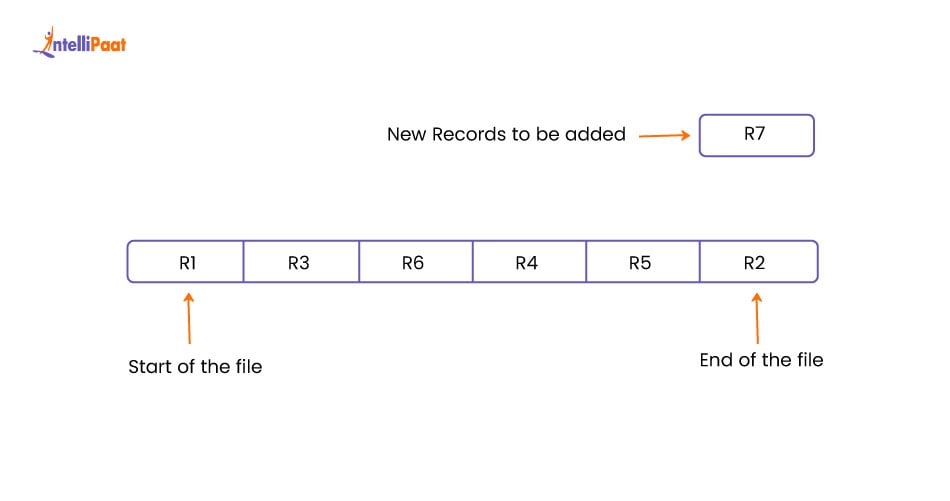

a) Pile File Method:
In the pile file method, new records are simply added to the end of the file as they are received. There is no sorting or ordering by any type of key. This makes insertion very fast because the system only needs to add new data after the last record.
When the user needs to update or delete a record, the system must search through the entire file to find it. A linear search takes considerable time if there is a lot of data.
For example, if record R7 is added to a file containing records R1 to R6, it will go to the end of the file without checking to see the order (if any)

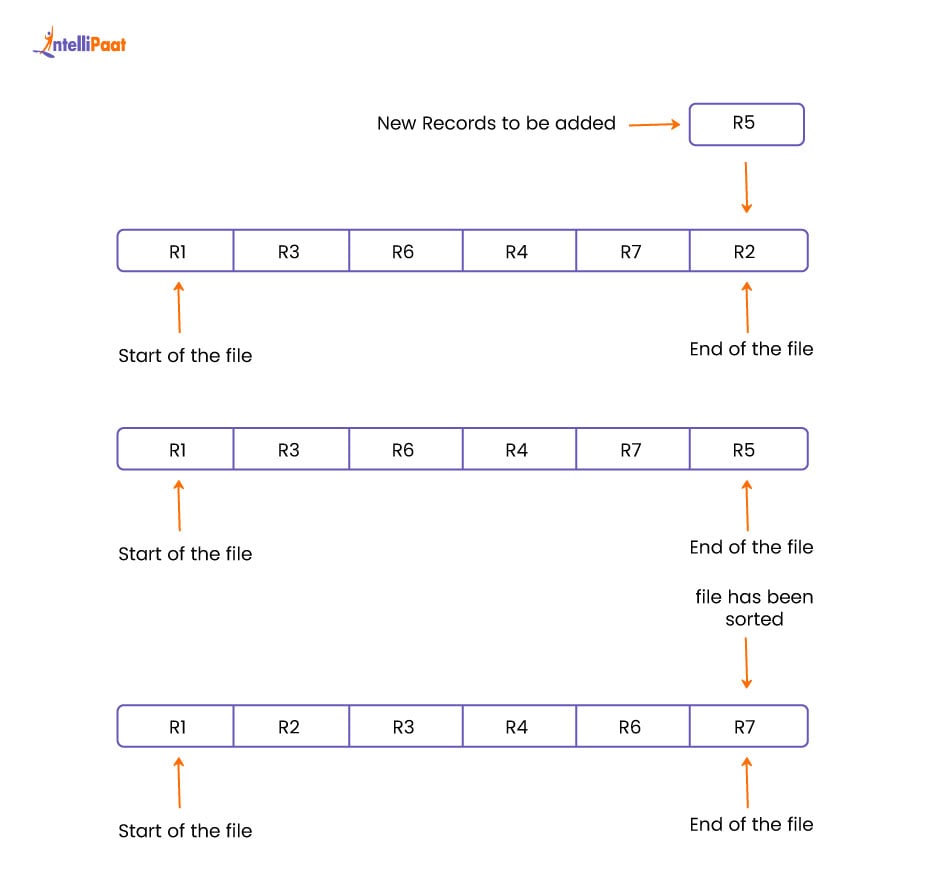

b) Sorted File Method
In the sorted file method, records are stored in a sorted order based on a key, such as employee ID or roll number. After every insertion or deletion into the file, the files are again sorted to keep the order.
When a new record arrives, it is first placed at the end of the file and then moved into the correct position to maintain the sorted order, so that every record stays in a sorted order. Searching and updating are completed more quickly than with the pile file method because the system can perform a binary search.
For example, if the record R5 is inserted into a sorted file that contains R1 to R4 and R6 to R7, the file will again be sorted so R5 is in its sorted order.
Advantages
1. Clear and easy to understand.
2. Applicable to jobs where all records are handled in sequence.
3. Inexpensive and can be used on devices like magnetic tape storage.
4. Works well for processes like attendance or payroll, in which data are sequentially read.
Disadvantages
1. Searching for individual records is slow because it requires a linear search.
2. It takes longer to maintain a sorted order after each update or deletion.
3. All records are required to be the same size, which does not happen in real databases.
4. Data redundancy can exist when records are duplicates.

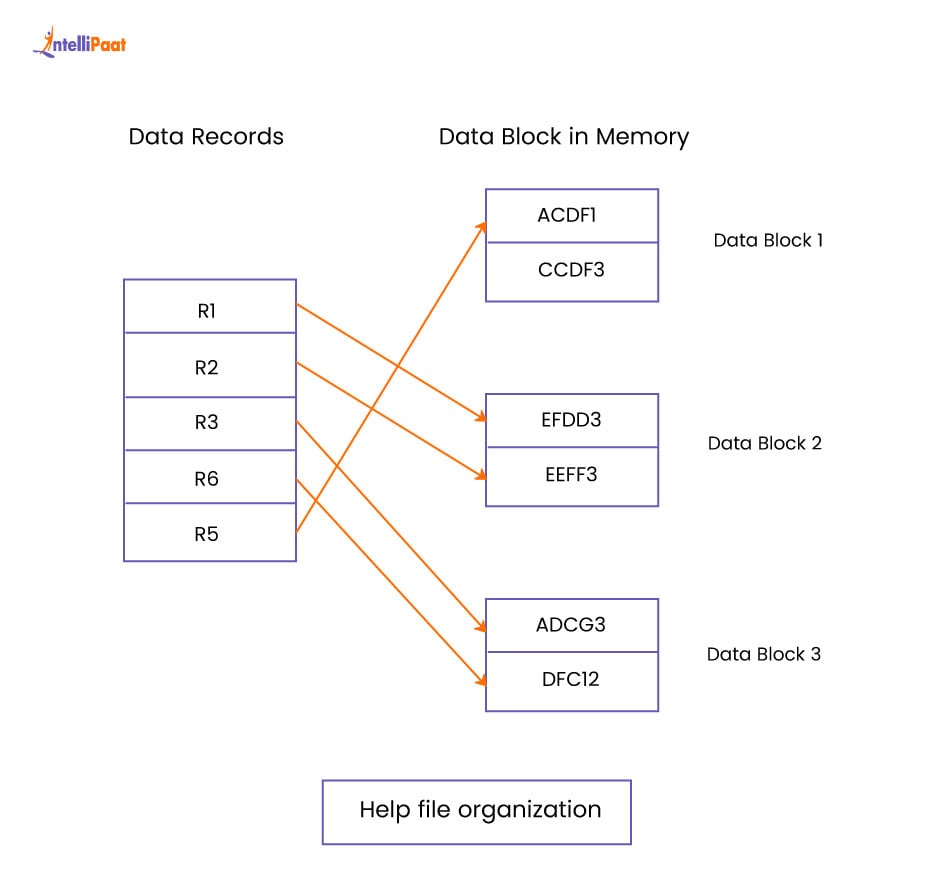

2. Heap File Organization in DBMS
Heap file arrangement in DBMS is the most flexible way of storing data. In this method, there is no specific order to store the record. Records are added wherever there is free space in the file. When a new record is added, the DBMS looks for a space in the file and stores the data. This makes the insertion very quick, but the searching process is very slow as the system has to look through all the records to find the desired location.
As you can see, there is no ordering of the records. Once the data block is full, the next record is stored in the new data block
Advantages
1. As there is no need to maintain the order so the new records can be added quickly.
2. It is easy to design and maintain as compared to other file structures.
3. It can store the records if there is free space available.
4. It is capable of working well for small and temporary datasets.
Disadvantages
1. As records are not sorted, each one must be checked to find the required data.
2. Access time of records increases as the number of records increases.
3. There is a possibility that duplicate records can occur easily.
4. This type of method is not suitable for complex and large systems.

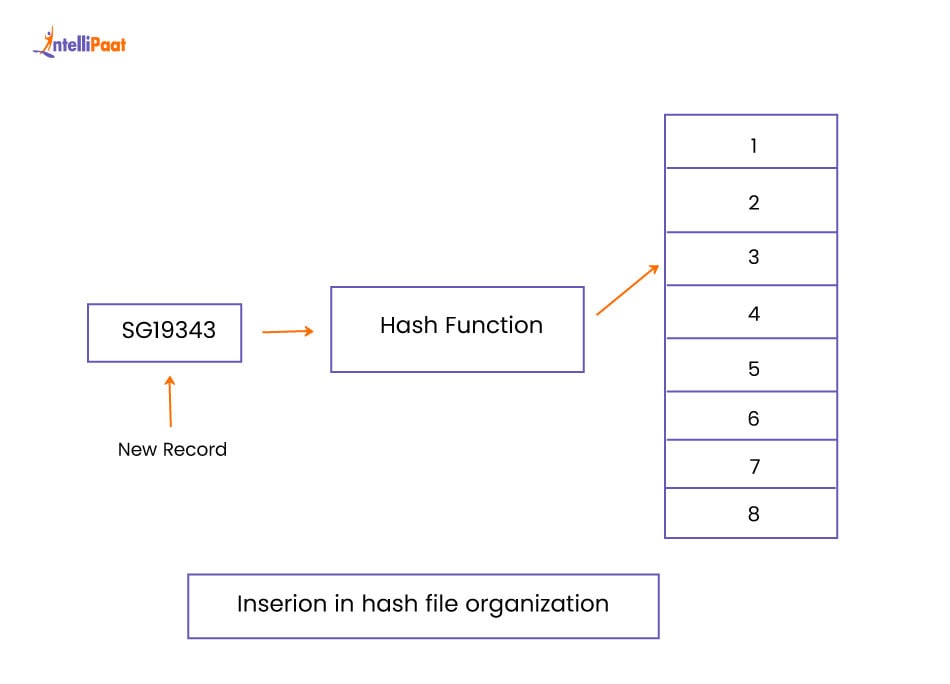

3. Hash File Organization in DBMS
Hash file organization in DBMS refers to the method of storing data based on a hashing function. The hashing function can take a value of a key field and convert it to an address that stores the record. This can be viewed as assigning a locker to each record using an assigned formula.
When it is necessary to find a record, the hashing function is applied for the case, and then it points directly to the record. This makes searching very fast. It is often used when quick access to specific data is needed.
Advantages
- It has a very fast search as data can be accessed directly without checking every record.
- Records can be added or removed easily using the hash key.
- It is suitable when there is a search for exact matches, like an employee ID.
- There is no need to maintain any specific order.
Disadvantages
- There is a possibility that the two records may get the same address from the hash function.
- It is not suitable for searches like finding all records between certain values.
- Rehashing can take some time and resources when the file becomes full.
- Memory gets overloaded if the hash function is not good.

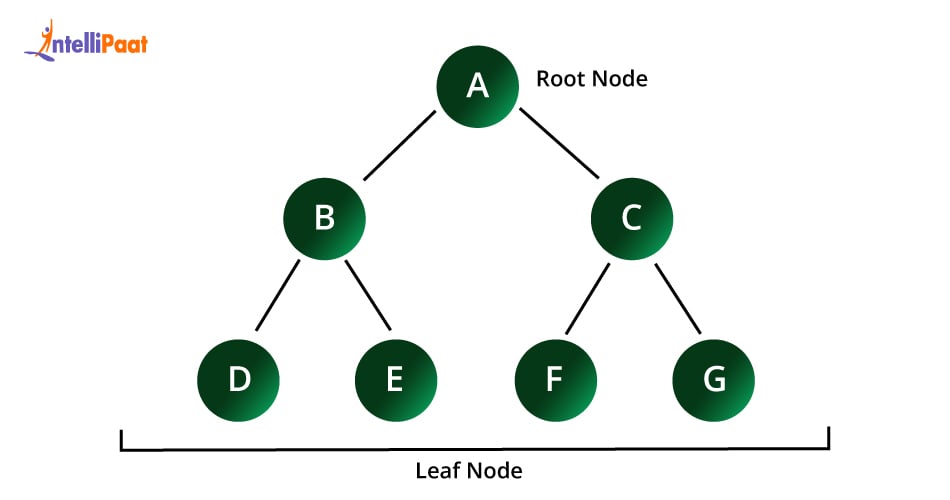

4. B+ Tree File Organization in DBMS
B+ Tree file organization within a DBMS (Database Management System) is a method of storing and managing records that is structured like a tree. The data will be stored in sorted order, and each record can be retrieved by traversing a path starting with the root of the tree and ending with the leaf nodes of the tree. The leaf nodes are used to store the actual data, while the nodes above contain keys that are useful in searching.
This tree structure supports both sequential and direct access to the data’s location. Because the tree remains balanced as records are added, it is often used to implement database indexes since the search time remains low even with large amounts of data.
Advantages
1. It supports fast searching as the data can be found quickly due to a balanced tree structure.
2. Querying the records is easy, as the data remains sorted.
3. It supports both sequential and direct access, as data can be accessed in order.
4. The balance of the tree is not disturbed by insertion and deletion.
Disadvantages
1. It has a complex structure, as it is harder to design and maintain.
2. It requires extra space to store the index nodes.
3. It may be slower than heap or hash organization for small databases.
4. More computation is required for maintaining the sorting and balancing.
5. Clustered File Organization in DBMS
Clustered file organization in DBMS (Database Management System) stores records that are related or that are frequently accessed together in the same physical location in memory. Clustered file organization organizes similar data together, which means that when a record is accessed, other related records can be reached quickly.
For example, if you have a student database and store all the records of students in the same academic department close together in memory, this reduces the time involved in retrieving the relevant information since the data is stored in the same area of memory. A Clustered File Organization is very effective in systems where data is often retrieved in groups or is often retrieved by range.
Advantages
1. Records that are linked are stored together, which helps in improving the read speed.
2. Fewer disk operations are needed to fetch related records.
3. It is ideal for applications where related data is used together.
4. It works well for queries that use join operations.
Disadvantages
1. Creating and managing the cluster requires planning and maintenance.
2. New records might need the rearranging of existing clusters.
3. Storage can become uneven if the clusters are not managed properly.
4. The record that is not a part of a cluster may take more time to access.
5. When data changes, there is a need to reorganize the cluster.
6. Indexed Sequential Access Method (ISAM) in DBMS
Indexed Sequential Access Method (ISAM) in a database management system (DBMS) is a data organization method that combines both sequential access and indexed access. The data records are kept in sorted order based on a defined key field, and an index is created to speed up the search.
When a query is issued, the DBMS first examines the index to identify the block that contains the record and then reads the record directly. Therefore, ISAM is an efficient choice for combined speed and storage efficiency. ISAM is commonly used in systems where the data is read mostly, with little or no change.
Advantages
1. Indexing helps in locating the data without scanning the entire file.
2. It helps in organizing the data in order.
3. It is easy to retrieve the data that falls between two key values.
4. It is easier to understand and apply compared to a complex tree structure.
Disadvantages
1. When new records are added, the index does not adjust automatically, which can cause inefficiency.
2. Adding or deleting the records may require rebuilding of index.
3. Overflow pages are created when new data exceeds the space, which slows down access.
4. It is best for the databases where the data remains mostly stable.
Comparison of File Organization in DBMS
| File Structure Type |
Data Order |
Access Speed |
Insertion Speed |
Best Use Case |
| Heap File Structure |
Records are stored in no specific order. New entries are placed wherever free space is available. |
Accessing data is relatively slow since the system may need to scan the entire file to locate a record. |
Insertion is very fast because the database simply adds new records without maintaining any order. |
Best suited for temporary or small datasets where insertion is frequent and retrieval speed is less critical. |
| Sequential File Method |
Records are arranged in a sorted order, typically based on a key field such as roll number or employee ID. |
Searching and range-based queries are faster because data is stored in a predefined sequence. |
Insertion and deletion are slower as files must be reorganized to maintain sorted order after each update. |
Ideal for applications like payroll systems, student attendance tracking, or batch report processing. |
| Hash Based File Storage |
Data is organized using a hashing function that maps key values to specific storage locations. |
Access is extremely fast for exact matches since the hash key provides a direct address to the record. |
Insertion is efficient because the hashing function quickly identifies where to store new records. |
Commonly used in systems that require quick lookups, such as banking or online ticketing platforms. |
| B Plus Tree Storage |
Records are kept in sorted order and linked through an indexed tree structure that stays balanced. |
Access and search operations are very fast since traversal happens through balanced nodes. |
Insertion speed is moderate because the structure must remain balanced after each operation. |
Best for large databases that handle frequent queries and require efficient range-based searches. |
| Clustered File Structure |
Related records from multiple tables are grouped together based on a clustering key. |
Data access is faster when retrieving related or joined records stored in the same memory block. |
Insertion speed is moderate since grouped records must be maintained within the same physical area. |
Ideal for systems that frequently perform join operations or work with related data entities. |
| ISAM Storage Method |
Records are stored sequentially and linked with a separate index that stores their physical addresses. |
Data retrieval is quick because the index allows direct access to specific records without scanning the full file. |
Insertion speed is moderate since both the file and its index need to be updated with new entries. |
Most effective for read-heavy systems where data remains mostly stable, such as library or inventory databases. |
File Organization and Indexing in DBMS
The file organization and indexing in DBMS work together to improve the speed and efficiency of data storage and retrieval. File organization in DBMS defines how the records will be physically organized on a storage medium, while indexing can be used to quickly locate records without having to search through the entire file.
An index in a database works in the same way as the index of a book. Rather than read through the book page by page to locate a particular topic, the index indicates exactly the page where the desired topic can be found. Similarly, in a DBMS, an index comprises pointers to the actual data, allowing the DBMS to quickly locate records.
Different Types of Indexes in DBMS:
- Primary Index: Constructed on a sorted file that utilizes the primary key. Each key value points to the first record of that key. Used concurrently with the sequential file organization in DBMS.
- Secondary Index: Constructed for non-primary key attributes to speed up searching. This is useful when we search frequently using different columns.
- Clustering Index: Used in the cluster file organization in DBMS, where multiple records having similar attributes are grouped. Clustering indexes improve performance in situations where we are querying multiple queries that involve related tables.
- Dense and Sparse Indexes: A dense index entry is stored for every record. Sparse index stores entries for some records only.
Factors to Consider When Choosing a File Organization Method
Let us look at the factors in choosing a File Organization Method:
- Nature of Data: It is better to choose a flexible method, like a heap file or a hash file, if the data changes frequently. Use a Sequential file or ISAM if the data is static.
- Type of Queries: If the database is used for exact match queries, like finding one specific record, then a hash file is used to give the best performance. If the database needs range-based searches or sorting, then sequential file or B+ tree file organization is a good option.
- Size of the Database: Use a simple structure, such as a heap approach for small databases, and for large databases, use a cluster or B+ tree organization in DBMS.
- Relationship Between Tables: When the data from two or more tables is accessed together, cluster file organization in DBMS must be used, as it reduces the need for join operations and groups related records in one place.
Best Practices for Efficient File Management in DBMS
- Choose the Right File Organization Type: Select the correct file organization method based on how the data will be accessed. For example, use the hash method for frequent lookups.
- Regularly Reorganize and Index Data: The data file can become fragmented over time. Try to reorganize them and maintain proper indexing to help improve the query performance.
- Optimize Storage Usage: Try to optimize the data by avoiding redundant data and removing redundant and outdated data to reduce the file size.
- Data Integrity and Security: Make sure to use backup mechanisms, transaction logs, and controls of access to protect the data from corruption and unauthorized access.
- Monitor performance: Analyze the query pattern, access times, and make adjustments to the indices or file structure as the pattern of the data changes.
Real-World Applications of File Organization in DBMS
- Banking Systems: File organization is used to store the details of the customer, transaction history, and account information for faster access.
- E-commerce Platforms: File organization is used to manage the product details, orders, and user accounts, where data must be searched and updated quickly.
- Ticket Booking System: It is used to handle a high volume of transactions, which ensures that fast bookings are done, and data retrieval is faster.
Start Learning SQL for Free
Build your foundation in SQL with our beginner-friendly, zero-cost course.
Conclusion
In a Database Management System, the way data files are structured plays a key role in how information is stored, accessed, and maintained. Choosing the right file storage method improves performance, reduces storage needs, and makes data retrieval faster. Each approach has its own advantage. For example, the heap structure supports quick insert operations, the sequential organization allows smooth and orderly access to data, and the clustered arrangement helps manage related records efficiently. Understanding the different types of file structures in a database helps in designing optimized systems. When records are organized properly, it leads to efficient data management and consistent performance in real-world applications.
