Difference Between Half Adder and Full Adder

It is important to know how computers perform math operations on the most basic level, which is the basis of digital electronics. All computers are based on digital circuits, and if you dig deeper, you will find that everything is ultimately based on addition, or binary addition, to be more specific, as computers add numbers using only base-2 numbers (0s and 1s). In this article, we will look at two basic components of these systems: the half-adder and the full-adder circuits. We will discuss what each circuit is responsible for, what each circuit does differently, and we will look at real-world examples of these circuits as they are applied in complex digital systems.

Table of Contents:

• What is Binary Addition and Adders?
• What is a Half Adder?
• What is a Full Adder?
• Differences Between Half Adder and Full Adder
  • Number of Inputs
  • Carry Handling
  • Circuit Complexity
  • Use in Multi-bit Addition
  • Carry Output
  • Real-world Use
  • Learning Level
  • Output Logic
  • Memory of Previous Carry
  • Hardware Implementation
• Quick Comparison Table: Half Adder and Full Adder
• Half Adder Truth Table
• Full Adder Truth Table
• Applications of Adders in Digital Circuits
• Conclusion

What is Binary Addition and Adders?

When we add the binary equivalent of a decimal and follow the rules for adding bits together, it is called Binary addition. Binary addition is the process for the addition of 2 binary numbers using their 0’s and 1’s representation.

When two binary bits are added together, there are only four possibilities. Here are the four results produced by the simple binary addition:

• 0 + 0 gives 0.
• 0 + 1, the result is equal to 1.
• 1 + 0, again, the result is equal to 1.
• 1 + 1. Here, the result is different, which is 2. But in binary, we only have 0s and 1s. So, 1 + 1 is 0 with a 1 carried over to the next position. This is similar to 5 + 5 = 10 in decimal, where you write 0 and carry 1.

To perform binary addition in computers, we use special circuits in digital electronics called adders. Adders are very useful circuits, and are usually found in processors, calculators, and other digital systems that perform arithmetic calculations.

There are two types of adder circuits. They are called a half-adder and a full-adder. Each circuit performs different tasks in binary addition, and they are also considerably different in their complexity and operation. Let’s understand the two circuits, one by one.

What is a Half Adder?

A half adder is a simple digital circuit that adds single binary digits (bits). There are only two single bits (0 and 1). Therefore, it establishes the basic rules that apply to binary addition examples. The half adder is the basic building block in digital electronics and digital computers.

The half adder has two outputs, a sum bit and a carry bit.

• Sum bit: The sum bit tells you the actual answer to the addition, like the “ones position” in a normal number. For example, for 0+0, the result of the sum bit is 0. For 0+1, the result of the sum bit is 1. For 1+0, the result of the sum bit is 1. For 1+1, the sum bit is 0. This is the bit that you “see” in the result.
• Carry bit: The carry bit tells you if there was a “carry” to the next position. The carry bit is only 1 when you add 1 + 1 together. For 0+0, 0+1, and 1+0, the carry bit is 0.

Half adders have a very limited use in multi-bit addition operations since they cannot perform any binary additions involving carry bits.

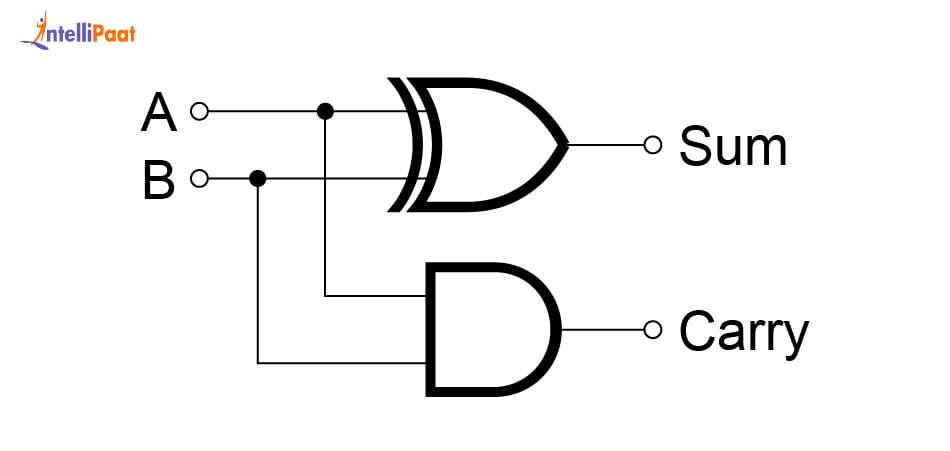

Half Adder Logic Diagram

What is a Full Adder?

A full adder is a complex digital circuit that can perform the binary addition of three single-bit numbers, which consists of two input bits and one carry input from a previous addition. Because of this, full adders can be applied to multiple-bit additions. A full adder has two outputs: a sum output and a carry output. A full adder takes the function of a half adder and augments it with carry-in for completeness in multi-bit representations. Full adders can be considered the building blocks of arithmetic logic units (ALUs) in CPUs, where all of the arithmetic and real-life math calculations would occur.

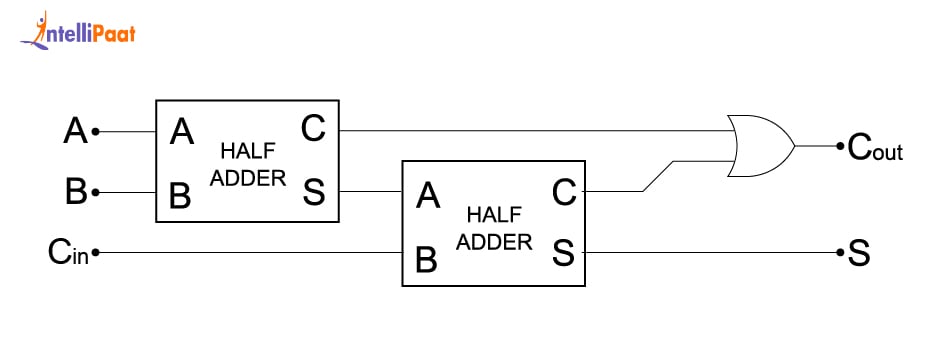

Full Adder Logic Diagram

Differences Between Half Adder and Full Adder

Let us now understand the difference between the half adder and full adder so you can choose which circuit will be useful, which is best suited in different situations.

1. Number of Inputs

• Half Adder: The half adder has only two inputs, which are A and B. The inputs are single binary digits, which are either 0 or 1. The half adder cannot take a carry input from any previous operation while performing multi-bit addition.
• Full Adder: The full adder has three inputs, which are A, B, and a carry-in (Cin). This allows the full adder to be able to add three binary digits and, therefore, makes it handy for mathematical challenges that require a sequence of binary additions.

2. Carry Handling

• Half Adder: A half adder simply does not have a carry from the previous calculation. A half adder can generate a carry from the new inputs, but not take an already existing carry.
• Full Adder: A full adder can handle and process the incoming carry from the previous stage. This feature is very important when performing the addition of binary numbers with more than one bit.

3. Circuit Complexity

• Half Adder: The half adder has a relatively simple logic circuit. It only used two logic gates, one XOR gate to create the sum, and one AND gate to create the carry output.
• Full Adder: The full adder, however, is more complicated than the half adder as the full adder has two XOR gates and two AND gates in addition to an OR gate to calculate both sum and carry.

4. Use in Multi-bit Addition

• Half Adder: It is not designed for multi-bit binary addition because it cannot take into account the carry from the previous bit. Thus, it is not suitable for chained addition functionality.
• Full Adder: Full adders are able to handle multi-bit binary addition. Half adders can be connected in series, with the carry-out used as the carry-in for the next adder.

5. Carry Output

• Half Adder: It creates a carry output only when both inputs are 1. Though it does not have any way to store the carry bit anywhere, nor does it take into account the previous carry outputs, if any.
• Full Adder: It has a more representative carry output by analyzing three inputs. This takes into account the present inputs as well as any carry from the previous calculation step.

6. Real-world Use

• Half Adder: It is typically used for academic purposes or applications that are not overly complicated. It’s useful for students to better understand logic gates and binary addition, but it is never used in devices.
• Full Adder: Full adders are often used in real-world devices, such as ALUs, calculators, and digital processors, which need to perform binary arithmetic with more than one bit quickly.

7. Learning Level

• Half Adder: Half adders are used to help and explain beginners build an understanding of how basic logic gates like XOR and AND can be used to add binary numbers.
• Full Adder: Full adders are taught after students learn about half adders. Full adders help to teach carry propagation, so students can see the idea of addition in actual hardware at a binary level.

8. Output Logic

• Half Adder: Its outputs are defined by simple logic, Sum = A ⊕ B, Carry = A ∧ B. It only takes two inputs and does not keep a record of any past computation. (⊕ represents XOR, and ∧ represents AND)
• Full Adder: The logic is more detailed in full adders, Sum = A ⊕ B ⊕ C_in, Carry = (A ∧ B) ∨ (C_in ∧ (A ⊕ B)). It integrates three inputs, including the carry-in from the previous stage.

9. Memory of Previous Carry

• Half Adder: It does not have a memory to store or retain any carry from previous actions and, therefore, is ineffective when you need to add numbers together in a multi-binary digit scenario.
• Full Adder: It has a carry-in, which allows it to take the previous addition into account. Therefore, it has “memory.” Hence, the full adder is needed to handle multi-bit binary numbers in a digital system.

10. Hardware Implementation

• Half Adder: Due to its limited function, it is not often used in real-world hardware. It is mainly educational, as it shows the fundamental principles of binary addition with logic gates.
• Full Adder: This is very commonly used in hardware circuits. It is a basic building block of arithmetic logic units, providing devices with rapid and accurate binary addition across bits.

Quick Comparison Table: Half Adder and Full Adder

Here is a quick comparison table summarizing the difference between a half adder and a full adder:

Half Adder Truth Table

As a half adder only takes two bits of input, it has only four combinations of inputs (A as 0 and B as 0, or 0 and 1, or 1 and 0, or 1 and 1). The truth table shows the correct carry bit and sum bit for each of these four combinations. The next step for the engineers will be to use the truth table to derive the Boolean logic equations to build the Half Adder with only simple logic gates.

Using the truth table, the Boolean expression that will be used for the sum and carry bit is as follows.

• Carry (C) = A · B (A AND B). The AND gate for carry output.
• Sum (S) = A ⊕ B (A XOR B). The XOR gate is used for the sum output.

Full Adder Truth Table

A Full adder adds 3 single-bit numbers: the two input bits (A and B) plus a carry input (Cin) from a previous addition. Since it has three inputs, there are 23 = 8 possible combinations of those inputs (000 to 111). The truth table lists the correct sum bit (S) and the correct Carry-out bit (Cout) for each of the eight combinations.

Using the truth table, the Boolean expression is as follows.

• Sum (S) = A ⊕ B ⊕ Cin (A XOR B XOR Cin).

This indicates that the Sum output is achieved with an XOR operation on all three inputs. Since the sum output of a half adder can be achieved with an XOR operation. This is why we are using half adders in the full adder circuit.

• Carry-out (Cout) = (A · B) + (Cin · (A ⊕ B)) ((A AND B) OR (Cin AND (A XOR B))).

The carry-out output will be 1 from the combination of A and B being 1, or A or B being 1 and a carry-in. This combination uses AND and OR gates.

Applications of Adders in Digital Circuits

Half adders and full adders are used extensively in the modern technological world and digital circuits.

• Arithmetic Logic Units (ALUs): Half and full adders are considered the basic building blocks of Arithmetic Logic Units, which are found in computer processors. The ALUs of a computer processor carry out every basic arithmetic function, including addition and subtraction, which is the basis for nearly every action that a computer does.
• Binary Calculators: Digital calculators highly depend on these processes performed by adder circuits. A calculator has many full adders connected one on top of another to make sure that multi-bit binary numbers are added together accurately and quickly.
• Computer Processors: The Central Processing Units (CPUs) heavily utilize advanced adder circuits. These adders are necessary for executing even the simplest arithmetic instructions directly, as well as for much more complex operations and computing accurate memory locations in which data must be processed.
• Digital Signal Processing (DSP): In Digital Signal Processing applications, the adder circuit is critical for implementing many complex mathematical processes to create digital filters, perform transforms (such as the Fourier transforms), and so on, to enable computing the arithmetic needed to appropriately process audio and video in many devices that process digital signals.
• Counters and Accumulators: Adders are also widely used in various sequential circuits beyond just arithmetic processing. They form the core logic for implementing digital counters, which track events, and accumulators, which continuously sum up values over a period, playing a vital role in control systems and data aggregation.

Conclusion

Understanding the difference between a half adder and a full adder is essential for anyone working in digital electronics, embedded systems, or computer hardware design. The main difference between a half adder and a full adder is their input capacity. A half adder adds two bits without a carry input, suitable for basic operations. In contrast, a full adder manages three bits, including a carry from a previous sum, making it vital for longer binary numbers. Half adders are for simple tasks, while full adders provide flexibility for complex multi-bit arithmetic in digital circuits. Choosing between them depends on the required scale and complexity of the design. These concepts form an essential groundwork for building more advanced computer systems.
