Locality of Reference

Locality of reference in computer architecture is a concept that explains how programs access memory. It is also known as the Principle of Locality. It is basically a tendency of a program to access the same memory locations repeatedly or access the memory locations that are physically close to each other in a short period of time. In this article, we will discuss what locality of reference is, why it is important, where it is applied, its types with examples, advantages and disadvantages, and the relationship of locality of reference with cache memory and hit ratio.

Table of Contents:

• What is Locality of Reference?
• Why Locality of Reference Matters?
• Where is the Locality of Reference Applied?
• Types of Locality of Reference
  1. Spatial Locality
  2. Temporal Locality
• Relationship of Locality of Reference with Cache Memory
• Relationship of Locality of Reference with Hit Ratio
• Conclusion

What is Locality of Reference?

Locality of reference is a tendency or phenomenon where a program tends to access the same set of memory locations repeatedly over a short period of time. In simple terms, we can say that it is the tendency of a program to access the instructions or data that are close to one another in memory. It is also called the “Principle of Locality”.

This concept is important in the design of memory hierarchies, such as caches, because it explains why certain data is accessed more frequently than others. This behavior is common in loops and function calls in a program, where the same variables are accessed multiple times.

Why Locality of Reference Matters?

Here are a few main reasons that will help you to understand why the locality of reference is important:

• Locality of reference improves the program performance by reducing the time which is needed to access the memory.
• It helps the CPU to make better use of fast memory (cache) by keeping frequently or recently used data closer to it.
• There are fewer cache misses and faster data retrieval in programs with a good locality experience.
• Locality of reference also helps to optimize the system resources and speeds up execution without changing the logic of the program.

Where is the Locality of Reference Applied?

The locality of reference is applied in several important areas of the computer system:

• CPU Cache Design: Locality of reference is used to improve performance by keeping the frequently or recently accessed data close to the processor.
• Virtual Memory Systems: An operating system uses the locality of reference to decide which pages are to be kept in RAM and which are to be swapped out.
• Compiler Optimization: Compilers rearrange the instructions and data to enhance performance for faster execution.
• Disk Caching and File Systems: The frequently accessed files or parts of files are kept in memory to reduce the disk access time.
• Database Management Systems (DBMS): In DBMS, the frequently queried data is cached to speed up the access and reduce the expensive disk I/O.

Types of Locality of Reference

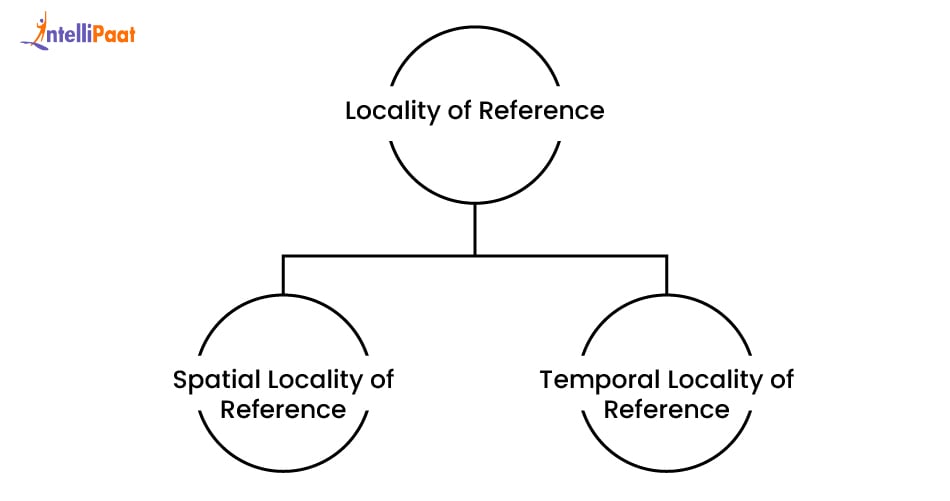

There are two types of locality of reference: Spatial and Temporal Locality. Let’s discuss these types of locality in detail.

1. Spatial Locality

Spatial locality is the tendency of the program to access the memory locations that are physically close to each other within a short time. This typically occurs in loops or when accessing arrays stored in contiguous memory. It is a type of locality of reference that has a high impact on the cache. Spatial locality helps to improve performance and memory access speed by loading the nearby data into the cache.

Example of Spatial Locality

Accessing elements of an array in a loop.

int array[100];
int sum = 0;

for (int i = 0; i < 100; i++) {
    sum += array[i];
}

Explanation: In this example, the loop accesses array[0], array[1],…, up to array[99]. These elements are stored in consecutive memory locations, and are accessed in sequence means the nearby memory addresses are accessed one after another.

Advantages of Spatial Locality

• Improved Cache Efficiency: The data that is close to each other is loaded together, and thus it reduces the number of memory accesses.
• Faster Program Efficiency: Accessing data in contiguous memory speeds up the data retrieval, especially in loops and arrays.
• Better Use of Memory Hierarchy: Spatial locality takes advantage of the memory hierarchy by using the design of caches and memory blocks that fetch data in chunks.
• Reduced Latency: It helps to minimize the delays caused by slow memory operations by accessing the adjacent memory locations.
• Supports Efficient Prefetching: Hardware and compilers can predict and preload the next data to be stored.

Disadvantages of Spatial Locality

• Cache Space is Wasted: Even if the location of loaded data is nearby, it is still loaded into the cache in case it is used, which will take up very valuable cache space.
• Poor Performance with Random Access: A program that accesses memory locations in a non-sequential way cannot take advantage of spatial locality.
• Cache Pollution: Since there is so much random nearby data, useful data gets evicted from the cache.
• Ineffective in Certain Algorithms: Spatial locality is not effective or inefficient in algorithms that use random memory access.

2. Temporal Locality

Temporal locality is the tendency of the program to reuse the same memory locations over a short period of time. If a part of the data is accessed once, then it is likely to be accessed again soon. Temporal locality occurs in loops, counters, or frequently called functions. It helps to keep the important data in the cache, which improves the performance.

Example of Temporal Locality

Using a loop counter variable or a frequently used function.

for (int i = 0; i < n; i++) {
    sum += i;
}

Explanation: In this example, the variables i and sum are accessed repeatedly in every iteration of the loop. The same memory locations are reused over a short time, and the processor keeps these variables in cache to speed up the accessing.

Advantages of Temporal Locality

• Faster Data Access: The frequently used data remains in cache, thus it reduces the need to access the slower main memory.
• Improved Program Performance: Reusing the same data or instructions helps in the fast execution of the program, especially when loops or recursive functions are used.
• Efficient Cache Usage: Temporal locality helps to keep the most relevant data in the cache, which in turn minimizes the cache misses.
• Better CPU Utilization: It reduces the idle time by allowing the processor to quickly access the required data.

Disadvantages of Temporal Locality

• Cache Overuse: The frequently reused data may occupy the cache for too long, and thus it leads to the eviction of other useful data.
• Not Effective for One-Time Use Data: Temporal locality does not provide any benefit if data is accessed only once.
• Cache Pollution: Using the less important data repeatedly can evict the more important data from the cache.
• Limited Impact in Certain Programs: Programs with irregular or non-repetitive access patterns may not gain performance improvements.

Here is a comparison table that shows the difference between spatial and temporal locality of reference:

Relationship of Locality of Reference with Cache Memory

Let’s first know what cache memory is for a better understanding.

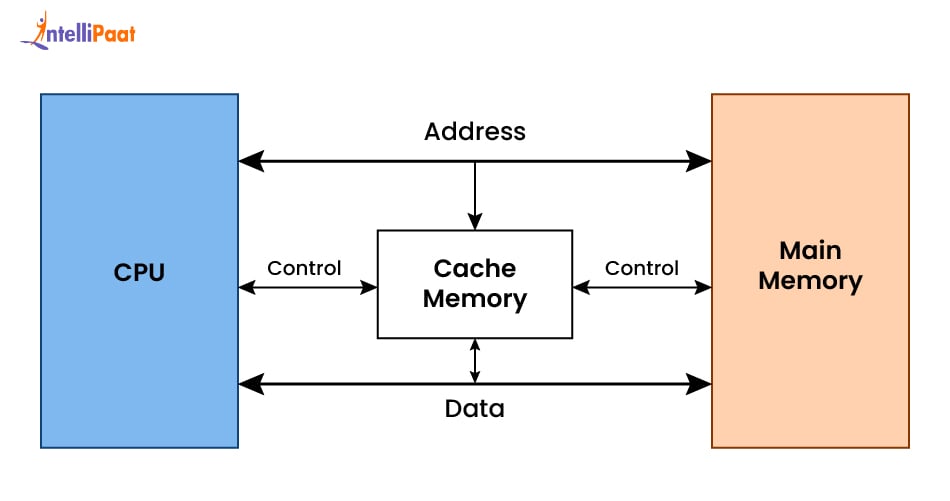

Cache Memory: Cache memory is a small and high-speed memory located near the CPU that stores the frequently accessed data and instructions. It acts as a buffer between the CPU and the slower main memory(RAM). There are three types of Cache Memory.

• L1 Cache (Level 1): Fastest and smallest; located inside the CPU.
• L2 Cache (Level 2): Larger and slightly slower; may be inside or near the CPU.
• L3 Cache (Level 3): Shared among cores; larger but slower than L1 and L2.

Now, let’s understand the relationship between the locality of reference with the cache memory.

Locality of reference is the main principle behind the design and effective working of the cache memory. When a program shows temporal locality, the cache keeps the frequently used data ready for quick access, and when a program shows spatial locality, the cache loads not just one memory location but nearby ones too, by expecting them to be used soon. This helps to reduce the cache misses and speeds up data retrieval by making program execution faster and more efficient. Thus, the cache memory relies on locality of reference to predict and pre-load useful data, and improve CPU performance.

Example:

void calculate() {
    // code block
}

int main() {
    for (int i = 0; i < 100; i++) {
        calculate();
    }
}

Explanation:

• In this example, the calculate() function is called repeatedly inside a loop. The instructions inside calculate() are stored in memory at specific addresses.
• Since the same function is used multiple times in a short period of time, the CPU recognizes this and keeps the function’s instructions in cache memory.
• As a result, the function can be executed faster in each iteration because the instructions are already in the cache memory, which reduces the need to fetch them again from the slower main memory.

Get Certified in Software Engineering and Boost Your Career!

Boost Your Skills - Enroll Now!

Explore Program

Relationship of Locality of Reference with Hit Ratio

Let’s first know what the hit ratio is for a better understanding of the effect of locality of reference on the hit ratio.

Hit Ratio: Hit ratio is the percentage of memory accesses where the required data is found in the cache memory. In simple terms, it is a key measure of cache performance. It indicates how effectively the cache is serving the CPU’s data requests. A higher hit ratio means most data is available in the cache, which leads to faster program execution.

Now, let’s discuss the relationship between the locality of reference with hit ratio.

Locality of reference plays an important role in determining the hit ratio of cache memory. Whether it is temporal or spatial, it directly affects the cache hit ratio. The temporal locality increases the hit ratio by reusing the same data or instructions frequently, and the spatial locality increases the hit ratio by accessing the memory locations near recently used data. When locality of reference is strong, the cache holds more useful data, which leads to more cache hits. Poor locality of reference results in more cache misses and thus decreases the hit ratio and slows down the overall system performance. That’s why cache systems are designed to take advantage of locality to maximize or increase the hit ratio and efficiency.

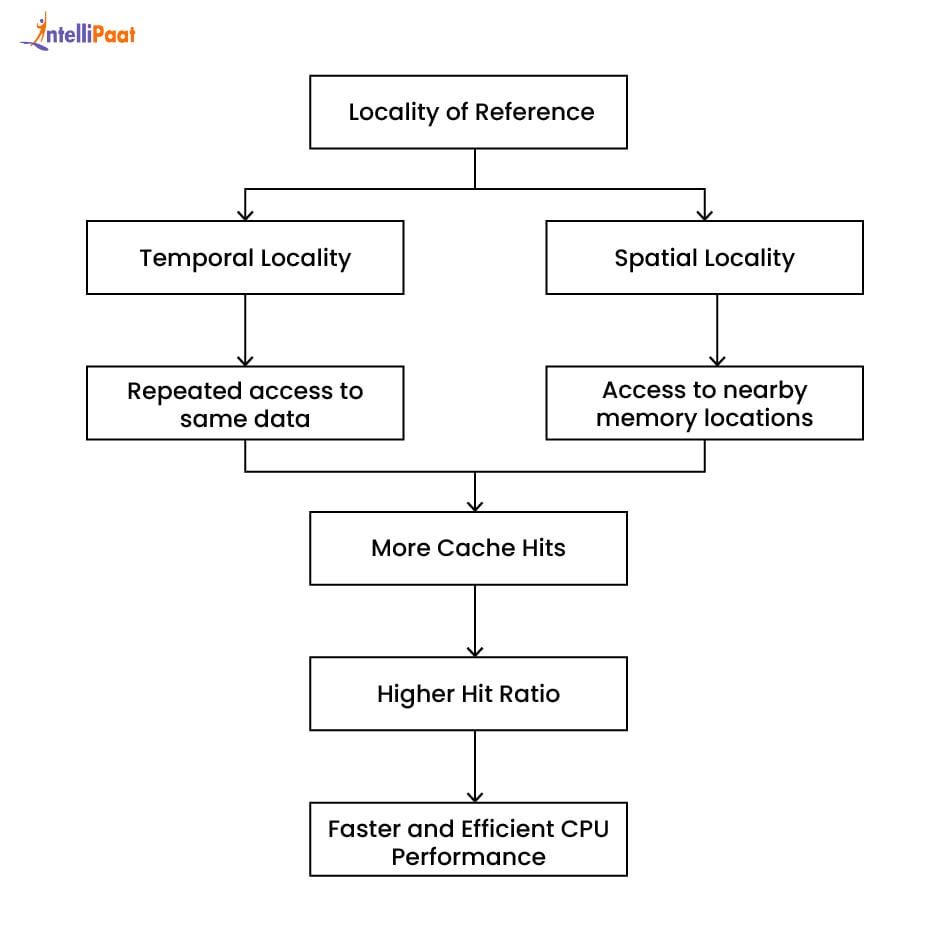

The above diagram shows how temporal and spatial locality contribute to more cache hits, which in turn lead to a higher hit ratio and better CPU performance.

Conclusion

Locality of reference is a fundamental concept in computer architecture that significantly impacts the performance of memory systems. It basically helps us to understand how programs often access the same or nearby memory locations repeatedly within short time intervals. This behavior allows cache memory to predict and store useful data, which improves system performance and access speed. Both spatial and temporal locality affect the cache hit ratio and program execution; thus, understanding and optimizing for locality is important in designing high-performance applications, compilers, and other systems.
