Modem vs Router : Key Differences

A modem brings the internet into your home, whereas a router brings the internet to your devices inside the home. In previous times, these were separate devices, but technological advancements have led to integrated solutions as well. In this article, we will discuss the fundamental roles of modems and routers, and learn the difference between modem and router.

Table of Contents:

• What is a Modem?
• What is a Router?
• Modem vs Router: A Detailed Comparison
  • Core Purpose
  • Connectivity
  • Network Scope
  • Signal Translation
  • Traffic Management
  • Built-in Protection
  • OSI Model Layer
  • IP Address Assignment
  • Necessity
• Modem vs Router: Comparison at-a-Glance
• Advantages and Disadvantages of Modems and Routers
• Do You Need Both a Modem and a Router?
• Conclusion

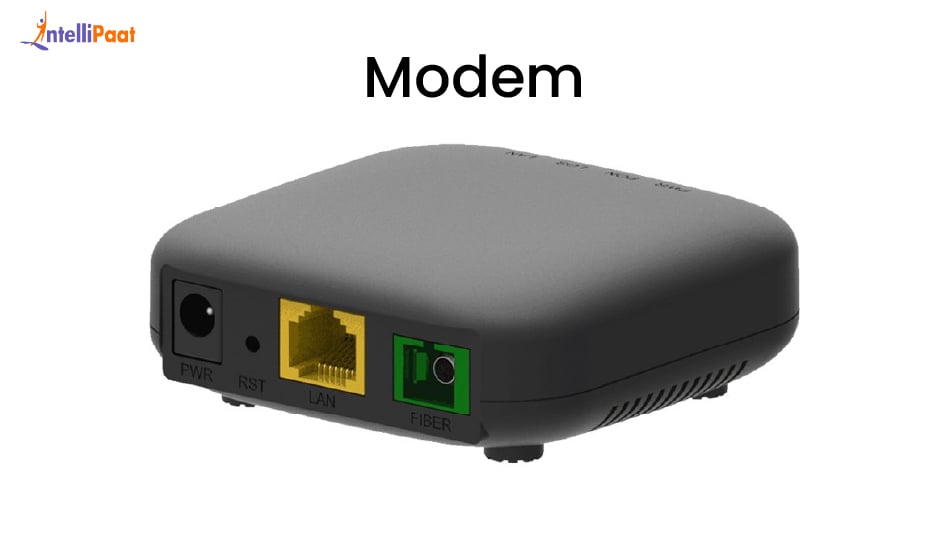

What is a Modem?

A modem stands for Modulator/Demodulator, which connects devices, such as computers, switches, and routers, to the internet. The primary function of a modem is to convert analog signals into digital signals for the computer. It changes the data from your device into signals that can move through traditional lines like phone or cable wires. A modem can be considered the access card to the Internet.

Fast-Track Your Software Engineering Career with IIT Guwahati!

Apply Now – IIT Guwahati Certified for job-ready training and mentorship!

Explore Program

Key Features of a Modem

• A modem is a device used in computer networks that converts analog signals to digital signals as well as digital to analog.
• It is responsible for assigning a public IP address to the connected device so that the device can connect to the internet.
• A modem has very few ports because on one side it is connected to the ISP and on the other side to a router. It is rarely connected to a local device, and even if it connects, only one or two local devices can be connected.

Different Types of Modems

There are quite a few types of modems that have been used in the past and are still used today. These are:

1. Dial-up: Dial-up was a very slow modem that used the telephone lines to connect to the ISP, Internet Service Provider. In this connection, you dial the ISP and request internet, and they send the transmission for a fixed duration. They charge you based on the number of requests and the duration of requests.
2. Cable: Cable modems use the cable TV line to connect to the Internet. This is the most common type of modem connection used.
3. DSL: Digital Subscriber Line (DSL) works on the telephone line, too, but it operates on a different frequency band. It is faster than a dial-up modem.

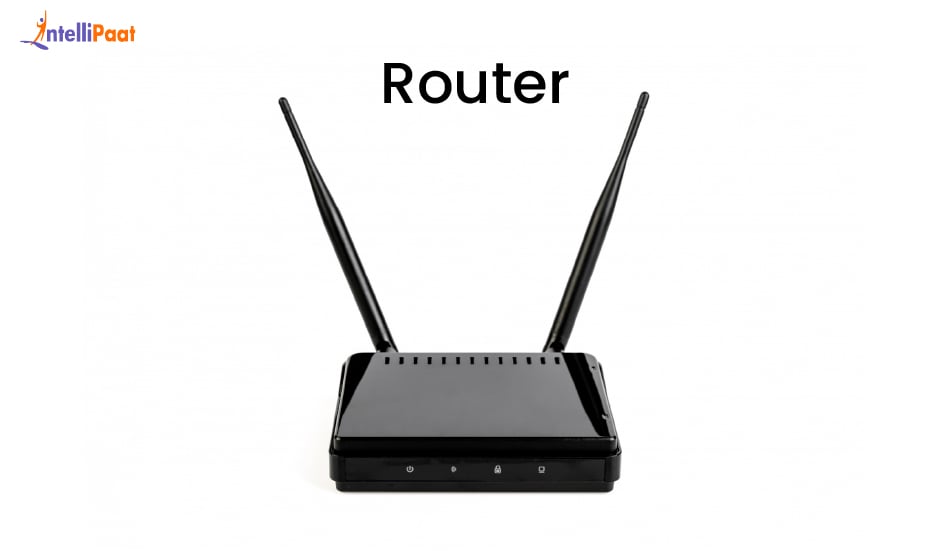

What is a Router?

A router directs the internet to the devices connected to it. It receives the data packets from the Internet and then routes them to the device that requested them. It can be thought of as a traffic management device that creates a LAN (Local Area Network), which is a type of computer network. Think of the router as a traffic controller that directs information between the various devices in your home. It lets all your gadgets, like phones, laptops, and smart TVs, communicate and share information over the same network.

Key Features of Routers

• Routers work in a Local Area Network (LAN) as a traffic manager and direct the incoming or outgoing data packets in the correct direction.
• It assigns private IP addresses to each device, which helps in establishing a system for internal communication in a network.
• Routers have multiple Ethernet ports because all the local devices in a network connect to the router to access the internet. It has more ports than a modem

Different Types of Routers

Routers are usually built into the modem, but when they are stand-alone, there are two major types of routers.

• Wired Router: In a wired router, all the devices are connected to the router through Ethernet cables. It takes the transmitted data from the modem and distributes it to a further network.
• Wireless Router: It uses radio frequencies to connect to devices. Devices access the network through a designated ID and a password. They establish a wireless local area network (WLAN).

Modem vs Router: A Detailed Comparison

Now, let us comprehensively look at the difference between routers and modems based on various aspects.

1. Core Purpose

• Modem: A modem establishes and maintains the connection between your home network and your Internet Service Provider (ISP). It acts as a translator. It changes the computer’s data into a format that can be sent through the internet cables used by your ISP. This process is called modulation; the reverse process is called demodulation.
• Router: A router creates a local area network (LAN) and links all your devices together, and provides access to the internet and each other. It acts as a traffic director.

2. Connectivity

• Modem: A modem is connected directly to an ISP line through a wired connection. For example, coaxial cable for cable internet, a telephone line for DSL, or fiber optic cable for fiber internet. It generally has one port for the ISP connection and one Ethernet port for connecting to a single computer or a router.
• Router: A router connects to the modem on one side and then to multiple devices on the other side, like computers, smartphones, tablets, and smart TVs. The devices can be connected wirelessly or through Ethernet cables.

3. Network Scope

• Modem: A modem connects a Local Area Network (LAN) to the Internet, which is a Wide Area Network (WAN).
• Router: It primarily operates inside a Local Area Network (LAN) and manages traffic between devices on your network and between your network and the modem.

4. Signal Translation

• Modem: It performs signal modulation and demodulation, which allows data to travel over different physical media like cable, DSL, and fiber cable.
• Router: It does not perform any conversion and works with digital data packets.

5. Traffic Management

• Modem: A modem transmits a raw signal and is not concerned with inspecting or routing individual data packets to their destination within a network.
• Router: A router, on the other hand, dispatches data packets, reads their destination IP addresses, and determines the best path to forward them to the correct device on the local network or out to the internet.

6. Built-in Protection

• Modem: A modem generally has no built-in security features, as it is a bridge to the internet.
• Router: A router has security features like a firewall, Wi-Fi encryption, and sometimes parental controls or VPN client capabilities. Since a router works within a network and is responsible for the transmission of data to its correct destination, security is important.

7. OSI Model Layer

• Modem: A modem primarily operates at the physical layer of the OSI model, from the ISP side, and the data link layer of the OSI model, on the LAN side.
• Router: In contrast, a router operates at the network layer of the OSI model, as its main function is routing data packets between different networks. Note that while it performs functions that touch Layers 1 and 2 to transmit the data, its core function acts at Layer 3.

8. IP Address Assignment

• Modem: It has a single IP address assigned by the ISP, which is visible on the internet. It is not responsible for assigning IP addresses to individual devices connected to a local network.
• Router: It uses DHCP (Dynamic Host Configuration Protocol) to assign unique private IP addresses to each device connected to your local network. It lets many devices go online through just one IP address that the modem receives from your internet provider.

9. Necessity

• Modem: A modem is required to get an internet signal from your ISP into your home or your LAN.
• Router: A router is required to connect multiple devices to the internet simultaneously. It creates a Wi-Fi network or sets up a local network for device communication.

Modem vs Router: Key Differences

We have consolidated the difference between a modem and a router and presented it in the table below for a glance.

Advantages and Disadvantages of Modems and Routers

Let us now discuss the advantages and disadvantages of Modems and Routers.

1. Modem

Advantages

• A modem provides an easy way for a local area network to connect to the Internet.
• The speed of your modem or internet depends on the plan you take. The more you pay, the better speed you get.

Disadvantages

• It does not provide any measure to manage the traffic.
• It lacks security measures, and since it is the only interface between the LAN and the internet, this is a significant disadvantage.

2. Router

Advantages

• There are wireless routers available that decrease the clutter of wires to access the internet.
• They provide a security layer with password protection and authentication.
• It also reduces direct traffic from the Internet to the LAN.

Disadvantages

• If the number of devices that are connected increases, the internet becomes slow for this particular LAN.
• Routers are generally more expensive than basic networking devices.

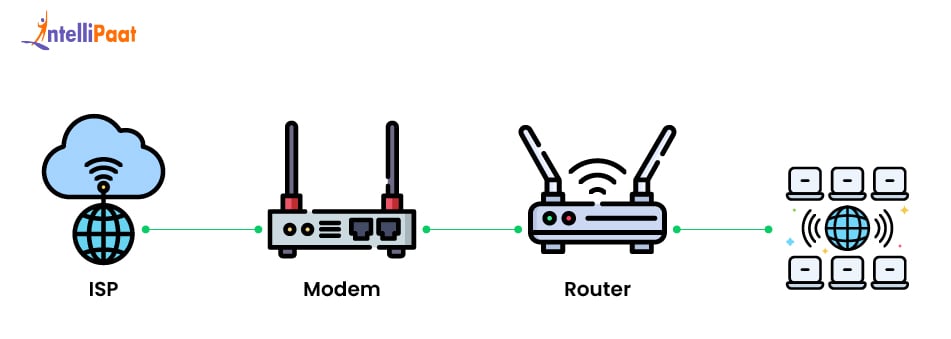

Do You Need Both a Modem and a Router?

If a modem were never installed in the network, the router would be unable to access the internet. On the other hand, if a router were removed, all the devices would need their own IP addresses to communicate with the internet, which would be impossible with the limited number of IP addresses. This means that only one device could access the internet directly, and the rest of the devices would need to be connected via Ethernet, which would lead to too many wires and hinder the evolution of technology to wireless smart homes. Therefore, yes, you will need both a modem and a router to access the internet. A modem communicates the signal between the ISP and you, while a router takes this data and routes packets to your device. If you are working remotely or have a home office, then both are a necessity for you.

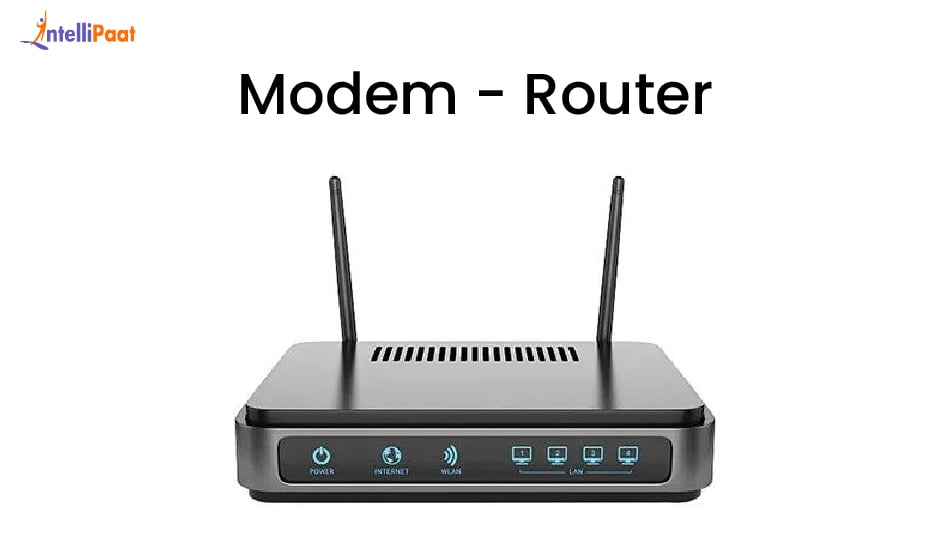

Traditionally, there were separate devices for a modem as well as a router. But with the advancement in technology, both modems and routers are now available in a single device. This integrated unit is commonly known as a gateway or modem-router combo. It offers convenience and reduces cable clutter, but it can sometimes limit flexibility in network configuration or upgrading individual components. However, this device is perfect for most home users as it is a straightforward and effective solution for internet connectivity.

Become a Certified Ethical Hacker – Get CEH v13 Certified!

Enroll Now and enhance your cybersecurity credentials!

Explore Program

Conclusion

To conclude, learning about the functionalities of a modem and router is an important step to understand how your home network connects with the internet. A modem acts like a translator, translating the signal sent by your ISP into a signal that is understood by your local network. On the other hand, a router manages the traffic and shares the internet, allowing the devices to communicate with each other. Modems and routers have become vital components in how we access the internet and interface our home networks.

To learn more about computer networks and advance your career, check out our comprehensive software engineering course. You’ll also find valuable resources for computer network interview questions to help you prepare.

Modem vs Router: Key Differences – FAQs
