Operating System Structure

The operating system structure explains how different parts of the system are arranged and how they interact. This structure helps the system manage key resources like memory, the CPU, and input/output devices in an organized manner. A clear operating system structure improves performance, stability, scalability, and maintainability. In this blog post, you will explore different types of operating system structures, along with their advantages, disadvantages, and real-world examples.

What is System Structure in an Operating System?

A system structure in an operating system shows how its different parts are designed, organized, and connected. It determines how the operating system uses its resources, such as memory, CPU, files, and devices. A good structure should make the operating system faster and more reliable, easier to upgrade, and more secure. Each system will use a particular structure based on its operating model, size, and intended use.

Become a Job-Ready Software Engineer

Master coding, system design, and real-world projects with expert mentors. Get certified and land your dream tech job

Explore Program

Types of Operating System Structures

The article covers eight commonly discussed approaches to organizing or virtualizing operating systems.

1. Simple Structure in Operating System

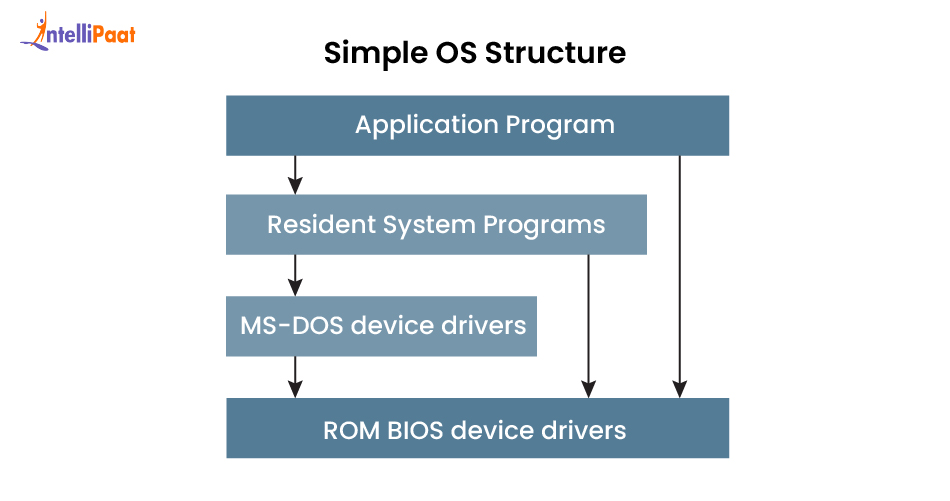

A simple structure is a basic design with little separation between operating system components. Functions such as process control and file management are closely connected. There is minimal or no separation between components or services.

Advantages of a Simple Structure in an Operating System:

1. Easy to Build and Learn: Easy for small systems and beginners.
2. Fast Execution: Small systems respond quickly since they have fewer layers to process each task.
3. Quick Development: It does not take long to develop a system.
4. Low Resource Demands: It will work even with limited hardware resources.
5. Good for Learning: Testing and experimenting with this system is simple.

Disadvantages of a Simple Structure in an Operating System:

1. Difficult to Upgrade: Changing one part means changing the entire system.
2. Poor Separation: All services are mixed.
3. Difficult to Test: Understanding bugs is difficult when everything is related.
4. Not Scalable: Simple structures may not be suitable for modern or complex systems.
5. Less Secure: A fault in privileged or core system code can affect or crash the entire operating system because components are only loosely isolated.

Example: MS-DOS is a commonly cited simple operating system structure in which components are only loosely separated.

2. Monolithic Structure in Operating System

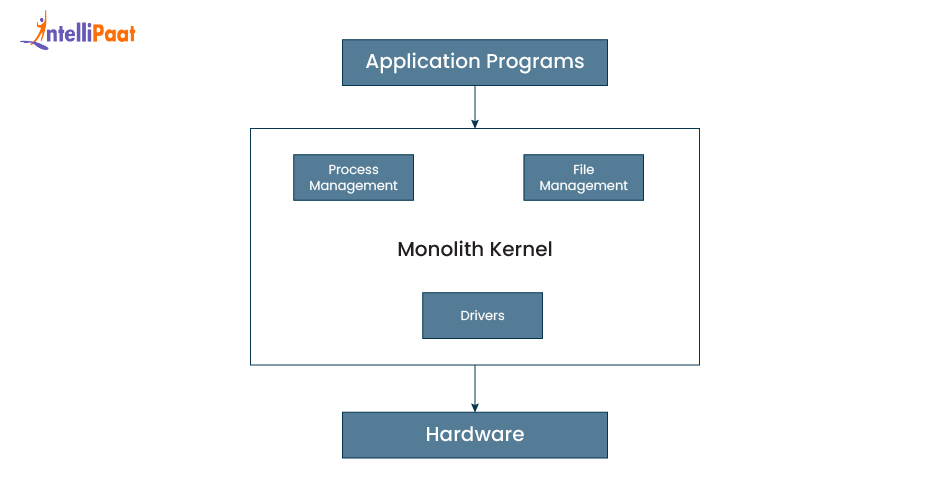

In monolithic architecture, the OS is a single large body of code. For example, all services (memory, file systems, device drivers) run together in kernel mode.

Advantages of a Monolithic Structure in an Operating System:

1. High Performance: Services can communicate directly, resulting in low communication overhead
2. Simple to Construct: The system can easily be built at the beginning of development.
3. Fast System Calls: Minimal overhead when invoking system functions.
4. Tightly Coupled: Components form a close working relationship for efficiency.
5. Useful: Good for executing most tasks.

Disadvantages of a Monolithic Structure in an Operating System:

1. One Crash Affects All: A bug in one area can bring everything to a halt.
2. Difficult to Manage: The code can become very large and overly complex.
3. Limited Modularity: Not all services can be independently separated or updated.
4. Difficult to Extend: Adding a new feature may break existing functionality.
5. Debugging Complexity: It can take a lot of time to find errors.

Example: Traditional UNIX and Linux use a monolithic kernel structure in which core operating system services run in kernel space.

3. Microkernel Structure in Operating System

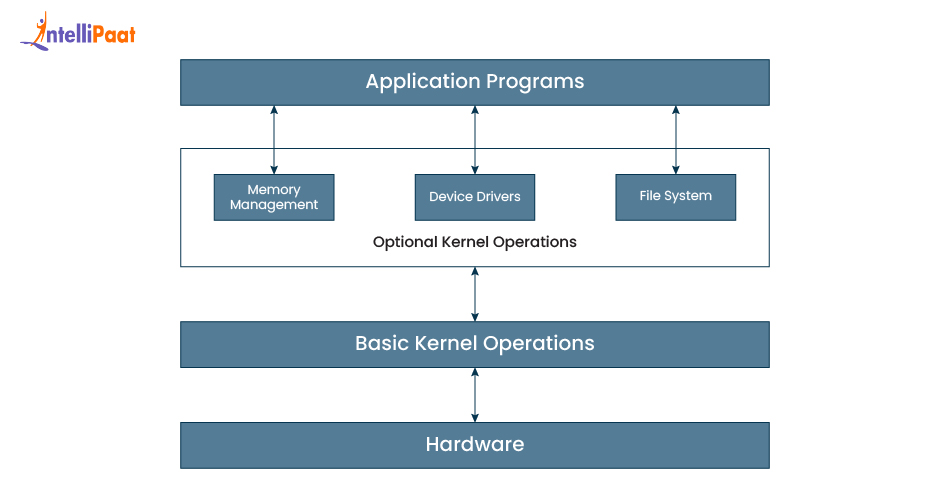

A microkernel has only the most basic features in its kernel, such as memory and communication.  All other services, such as drivers and the file system, run outside the kernel in user mode.

Advantages of Microkernel in Operating System:

1. More Stable: Problems in the services do not crash the OS.
2. Easier to Modify: Services can often be modified independently without changing the core microkernel.
3. Better Security: Only the core runs in kernel mode.
4. Modular: Individual user-space services can be modified or replaced independently.
5. Better for Testing: Bugs can be easier to follow.

Disadvantages of Microkernel in Operating System:

1. Slower Performance: Services communicate via messages.
2. More Overhead: Uses resources for message-based communication.
3. Hard to Design: Needs to be thought out ahead of time.
4. Can be Complex: More parts to track and maintain.
5. IPC Overhead: Message-based communication can introduce additional overhead in certain implementations, potentially affecting performance.

Example: QNX and Minix use microkernel-based designs, with core functions kept in the kernel and many other services running in user space.

4. Hybrid Kernel Structure in Operating System

A hybrid kernel contains elements of both a monolithic kernel and a microkernel. The kernel contains some services that run in kernel mode, and others that run in user mode.

Advantages of Hybrid Kernel Structure in Operating System:

1. Balance of Design: Speed and safety are balanced.
2. Flexible: You determine what runs in kernel mode and what runs in user mode.
3. Better Hardware Support: A hybrid kernel can be beneficial in modern systems.
4. Easier Maintenance: Modular components can simplify maintenance and updates, depending on the implementation.
5. Good Multitasking Support: Can support multitasking efficiently, depending on the implementation and workload.

Disadvantages of Hybrid Kernel Structure in Operating System:

1. Complex Code: Hybrid kernels are more complex than both monolithic and microkernel designs due to their combined characteristics.
2. Greater Architectural Complexity: Combining monolithic and microkernel concepts can make the design harder to understand and maintain.
3. More Difficult to Debug: Because many things are interconnected, problems can be harder to follow.
4.  Possible Kernel Crashes: Kernel-mode services getting corrupted could crash the entire system.
5. May Require More System Resources: As hybrid kernels integrate more features, the system load may increase.

Example: Windows NT-family systems and macOS/XNU are commonly described as hybrid designs. Linux uses a monolithic kernel with loadable modules.

5. Exokernel Structure in Operating System

An exokernel is a thin operating system architecture that securely exposes low-level hardware resources to applications or library operating systems while retaining protection and resource-allocation controls.

Advantages of Exokernel Structure in Operating System:

1. Very Fast: Applications can utilize the system resources immediately.
2. Highly Flexible: Developers can define their own resource-management policies.
3. Smaller Trusted Kernel: A smaller trusted kernel reduces the amount of privileged code that must be maintained and verified.
4. More Efficient: It gets out of the way and avoids implementing unnecessary high-level services in the kernel.
5. Excellent for Research Purposes: It is useful in academic research and experimental systems.

Disadvantages of Exokernel Structure in Operating System:

1. Hard to Program: Developers have to manage more things.
2. Limited General-Purpose Adoption: Not feasible for casual users.
3. Greater Application Complexity: More resource management responsibilities are handled by applications or by library operating systems.
4. Limited Commercial Adoption: Exokernel designs are rarely used in mainstream commercial operating systems.
5. Less Community Support: Very few tools and resources.

Example: MIT’s Aegis/Xok and ExOS are well-known examples of exokernel research.

6. Layered Structure in Operating System

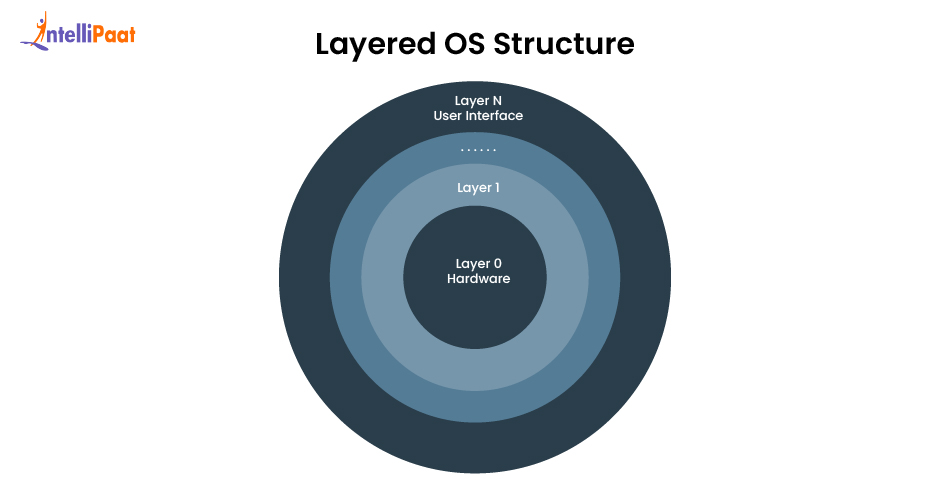

A layered structure organizes an operating system as a series of layers. Each layer performs specific tasks, uses services provided by lower layers, and provides services to higher layers. The lowest layer, typically Layer 0, interfaces with the hardware, while the highest layer is closest to users and applications.

The layered structure protects the model’s integrity and makes it easier to control.

Advantages of Layered Structure in an Operating System:

1. Easy to Manage: Each layer is focused on a specific purpose, which makes things much more manageable.
2. Easier to Debug: Problems can often be isolated and traced layer by layer.
3. Better Security: The layers above the bottom layer usually do not have direct access to the hardware.
4. Improved Development: Development teams can work on different layers independently, provided the layer interfaces remain consistent.
5. More Control: Only the necessary parts of the whole system will need to be updated or replaced.

Disadvantages of Layered Structure in Operating Systems:

1. Slower Performance: Requests must pass through multiple layers to reach the desired endpoint.
2. Hard to Design: Requires careful planning and structure.
3. Less Flexible: Layers must follow a defined hierarchy, which can make some changes more difficult.
4. Tight Coupling: A few small changes may require changes at multiple levels.
5. Not Ideal for Real-Time Systems: Delays may make the system unsuitable for real-time operations.

Example: The operating system developed at the Technische Universiteit Eindhoven is a classic layered operating system.

7. Modular Structure in Operating System

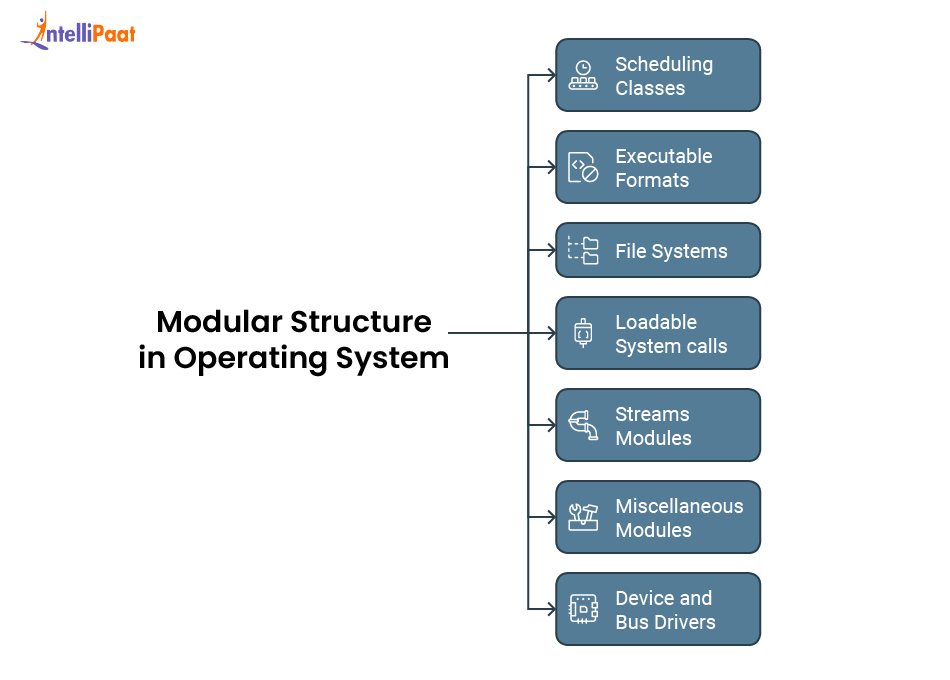

A modular architecture separates the operating system into small modules. This separation can be beneficial because each part is assigned a specific duty, and modules can be added or removed without requiring changes to the entire system. This will provide better flexibility and make updates and maintenance simpler.

Advantages of Modular Structure in Operating System:

1. Flexible: Add and remove modules as needed.
2. Low Impact Updates: Simply correct or upgrade only one part, not the entire system.
3. Better for Testing: Each module can be tested independently.
4. Better Security: A faulty module can be removed or updated without changing the entire system.
5. Customizability: Enables building systems tailored to individual or organizational needs

Disadvantages of Modular Structure in Operating System:

1. More Complicated Code Structure: Adding modules results in more parts to manage
2. Greater Overhead: Some cooperation is required to tie all the modules together.
3. Less Compatibility: All the modules must work well together.
4. Dependency Management: Module dependencies and interactions can increase maintenance and troubleshooting complexity.
5. Debugging Challenges: A problem may exist across several modules, which may be difficult to debug

Example: Modern operating systems such as Linux and Windows support modular components, including loadable kernel modules, which allow certain functionality to be added or removed without rebuilding the entire kernel

8. Virtual Machines in Operating System

A virtual machine (VM) is software that simulates the behavior of a real computer. This virtual machine enables you to run an operating system in an isolated virtual environment. Each virtual machine is assigned a virtual CPU, memory, storage, and other resources managed by the hypervisor.  The hypervisor allocates and schedules host hardware resources among virtual machines. Virtual machines help multiple operating systems share hardware resources efficiently. They are commonly used in testing, cloud computing, and for running different operating systems on the same machine.

Advantages of Virtual Machines in Operating Systems:

1. Run Multiple OS: It can run Windows and Linux OS versions on one machine.
2. Better Resource Efficiency: It is capable of sharing hardware efficiently among many systems.
3. Safe Testing: You can use a piece of software without affecting the real system.
4. Backup and Restore: Virtual machines are easy to save and restore.
5. Isolated Environment: If one virtual machine crashes, it should not affect the other virtual machines loaded on the hardware system.

Disadvantages of Virtual Machines in Operating System:

1. Less Performance: While some virtual machines will be acceptably fast, overall, the virtual machine may have some overhead compared with equivalent bare-metal execution.
2. Higher CPU and Memory Requirements: Multiple operating systems require more resources.
3. Complex Virtual Machine Setup: Virtualization tools require sufficient knowledge to get started.
4. Hypervisor Overhead: Each virtual machine runs through the hardware using the hypervisor, which is an extra layer between the hardware and the operating system.
5. May Not Support All Features: Some useful functionality of some hardware will not work inside a virtual machine.

Example: Virtual machines are used in platforms like VMware, VirtualBox, and Microsoft Hyper-V, where multiple operating systems run on the same hardware through a hypervisor.

Practical Use Cases of Operating System Structures

1. Simple Structure: MS-DOS for early personal computers and learning OS basics.
2. Monolithic Structure: UNIX and Linux are used in server and desktop environments.
3. Microkernel Structure: QNX is used in medical and industrial devices.
4. Hybrid Kernel: Windows and macOS are used for everyday personal and office use.
5. Exokernel: Research labs and high-performance testing environments.
6. Layered Structure: Educational OS and security-focused designs.
7. Modular Structure: Linux with dynamic drivers and cloud servers.
8. Virtual Machines: Cloud computing, app testing, and server backups.

Conclusion

Understanding system structures in operating systems helps in choosing the right design for performance, security, and flexibility. Each structure offers unique advantages based on the goals of the system and requirements. With rapid growth in technology, selecting the right structure becomes even more critical. A well-chosen structure improves resource management, user experience, and system reliability. Proper planning helps build operating systems that perform well and are ready for future use.
