If you are someone who wants to know about how the databases work, then it is important for you to learn about the structure of the Database Management System. You should know about its internal design; otherwise, you will find it hard to figure out how your data is stored, processed, and managed. A Database Management System helps you to simplify the complexity of data by processing it and by providing tools that organize data, ensure its integrity, and prevent unauthorized access to data.
In this blog, we will talk about the database system structure, its major components, and how they work together. Everything in this blog is explained in a simple way, so you can understand as a beginner. So let’s get started!
Table of Contents:
What is a Database Management System?
A Database Management System (DBMS) is basically a software that helps you to store, manage, and retrieve data in an efficient way with the help of a structured approach. It works like an interface between the users and the database, which allows multiple users to access and manipulate data while maintaining its security, consistency, and integrity. DBMS uses a very refined database system structure that consists of components like hardware, software, data, users, and procedures, along with a layered architecture which helps to organize the way how data is viewed and stored. DBMS plays a very important role in modern applications across multiple industries by simplifying tasks like data handling, along with supporting tasks like backup, access control, management of transactions, etc.
Unlock Advanced SQL Skills Today!
Enroll now and transform your future!
Structure of a Database Management System
A Database Management System (DBMS) is a mix of two things: the database and all the tools or features that are required to organize and manage data properly. It is basically a software system that allows you to interact with your data in a smooth and efficient way.
Since a DBMS is made up of different parts that work together, it is important for you to understand its components clearly. This helps you to manage and use the database without any issues. People think that the structure of a database is the same as the tier architecture of a DBMS. But actually, the database system structure refers to how the entire system is organized, like its hardware, software, data layers, and user roles, which is different from the multi-tier architecture used in some of the systems. Hence, by understanding these differences, it will be much easier for you to learn how a database works.
Difference between DBMS Structure and DBMS Architecture
The structure of DBMS refers to the way the components are organized and the programs that help to manage data. On the other hand, the architecture of DBMS is used to describe the overall design and how users interact with the system. In simple words, you can say that the database system structure shows how it works from inside, and the architecture of the database shows how everything is connected to each other and how they communicate.
The difference between DBMS Structure and DBMS Architecture is given below in Tabular Format:
| Aspect |
DBMS Structure |
DBMS Architecture |
| Meaning |
Shows how all parts and programs inside the DBMS are organized |
Explains how the entire system is designed and how users connect with the database |
| Focus |
Focuses on the internal working modules and components |
Focuses on the overall design and interaction flow |
| Includes |
It consists of programs, components, and data handling modules |
It consists of users, application layers, and database connection methods |
| Viewpoint |
Used to look at what’s inside the system |
Used to look at how the system connects everything together |
| Use Case |
Helps understand how DBMS functions internally |
Helps design how data flows between the user and the database |
Get 100% Hike!
Master Most in Demand Skills Now!
Components of a Database Management System

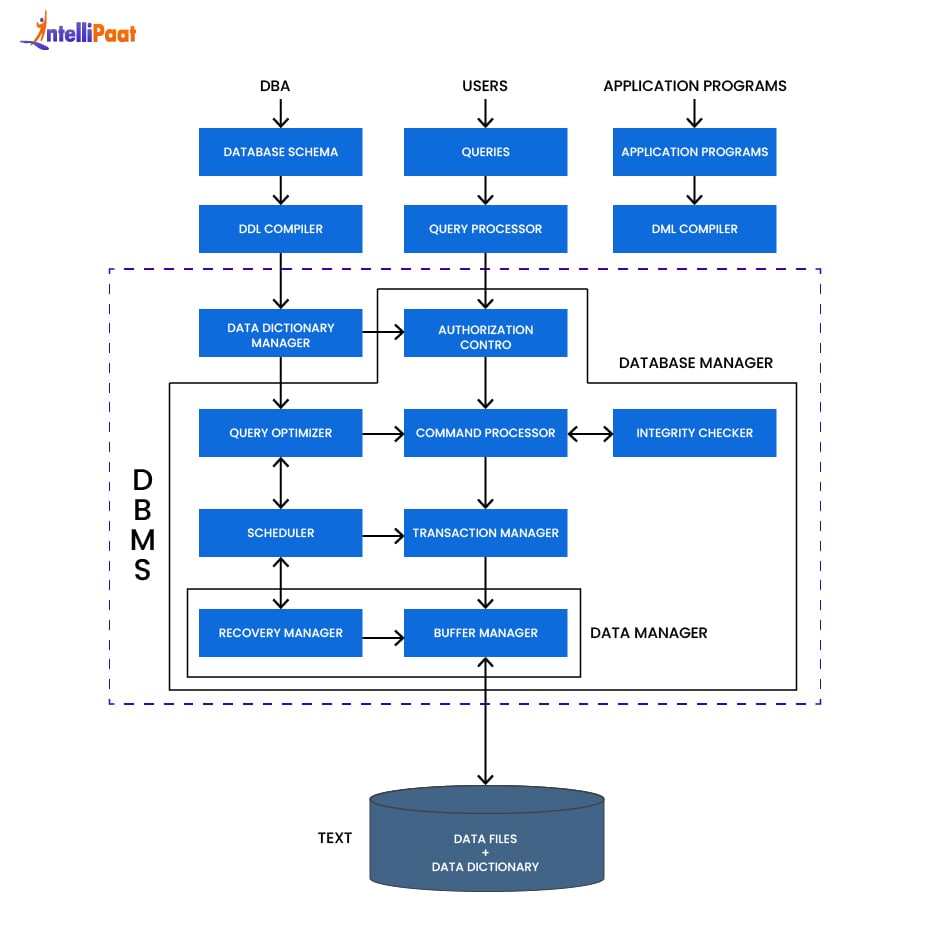

The database system consists of the following components: Query Processor, Storage Manager, and Disk Storage. All three components are explained below in detail:
1. Query Processor
The Query Processor works like the brain of the database system. It takes the requests from the users through an application and then turns them into instructions that can be easily understood by the database. It also runs the requests that are sent by the DML compiler (responsible for handling commands like SELECT, INSERT, etc.). The Query Processor consists of several parts that work together to make things work. They are as follows:
- DML Compiler: It receives the DML commands (e.g., SELECT or INSERT) and then converts them to simple and easy-to-understand instructions that can be easily understood by the computer.
- DDL Interpreter: The DDL Interpreter reads all the DDL commands (like CREATE TABLE) and then converts them into special tables that store metadata, which means information about the structure of your data, like table names, column types, and relationships.
- Embedded DML Pre-Compiler: It accepts the DML commands (like SELECT or UPDATE) that are written inside an application program and then converts those commands into step-by-step instructions that are followed and executed by the database.
- Query Optimizer: The Query Optimizer helps the database to perform your queries in the best way possible. After the basic instructions are created by the DML compiler, the optimizer looks at various ways to run the query and picks the best way.
2. Storage Manager
The storage manager is basically the interface between the stored data in the database and the queries that are sent by you to access that data. It is also called a Database Control System. The main job of a storage manager is to make sure that the data stays accurate and follows all the rules (constraints). It is also responsible for handling security commands and is also responsible for storing, updating, deleting, and fetching data from the database. The Storage Manager consists of several parts that work together. They are as follows:
- Authorization Manager: The Authorization Manager helps to make sure that only the right people can perform some actions in the database. It checks if the user has the permission or a position to access or execute a certain task he/she is attempting, like viewing, adding, or deleting data.
- Integrity Manager: The Integrity Manager helps to make sure that the data stays correct and follows the rules whenever you make any changes in the database, like adding or updating records.
- Transaction Manager: The Transaction Manager helps you to handle multiple users who have access to the database at the same time. It helps to organize the tasks in a proper order so that everything runs smoothly. Therefore, it makes sure that the database is always correct and consistent before and after the transaction is completed.
- File Manager: The File Manager is responsible for taking care of the space on the disk where you have stored the data. It also helps to manage the way data is arranged in files so that you can easily find, save, and organize the information.
- Buffer Manager: The Buffer Manager is the one that manages the temporary memory (cache) and movement of data between the main memory (RAM) and the hard drive. It also makes sure that the data that is most used is kept ready in memory so that the system works faster.
3. Disk Storage
Disk Storage is the place where all the data present in the database is saved permanently, even if your system is turned off. It consists of some important parts that help you to store data properly. They are as follows:
- Data Files: These are the files that are responsible for holding the real information that is saved in the database, like names, numbers, records, and other content.
- Data Dictionary: It works like a guidebook for the database. It helps to store details about how the database is set up, like the names of tables, the rules, and how the different parts of data are connected to each other. In simple words, it helps to keep track of the important information about your data, which is known as metadata.
- Indices: It helps the database to find all the information faster, just like the index page in a book. They help you speed up operations so that your queries can run more quickly and efficiently.
Levels of DBMS Architecture
A Database Management System (DBMS) usually has three parts, namely the Internal Level, the Conceptual Level, and the External Level. Each layer consists of its own job and helps you to manage how data is stored, organized, and displayed to others. Each of these layers is explained below:
1. Internal Level
The Internal Level is the deepest layer of the database system structure. It handles the way data is stored on your device, like a hard drive or SSD. It takes care of the tasks that are happening in the background, like saving data, finding the data quickly using indexes, compressing the data to save space, and deciding where the data should be saved on the disk.
2. Conceptual Level
The Conceptual Level is used to display how the data is organized in the database without bothering about how it is stored on the disk. It gives you a clear view of the tables, their columns, and how they are related to each other. This level defines the overall structure (schema) and stays the same without bothering about the database or software that is used.
3. External Level
The External Level helps the user to see and interact with the data. It helps you to view and work with the data in an easy way, without needing to know how the data is organized in the background. This level provides you with customized views of the database, so that the different users or groups can only look at the information they need.
Role of a Database Administrator
Apart from the three levels, a Database Management System (DBMS) also consists of an important role called the Database Administrator (DBA). The DBA is responsible for managing and taking care of the entire database system structure. Some of the important tasks that are handled by the Database Administrator are as follows:
1. Database Administrators are responsible for designing and implementing the model of the database.
2. It is also their responsibility to secure the security by creating user roles, permissions, data encryption, and the type of logins, such as multi-factor authentication (MFA).
3. They should also establish regular backups and a recovery plan if the data is lost or corrupted.
4. They are also responsible for improving the performance of by fine-tuning the system, optimizing queries, managing indexes, and making sure that all the resources are used efficiently.
SQL Simplified: Learn for Free, Grow for Life
Master the language of data and start your journey toward a data-centric career!
Conclusion
The Database System Structure is built in such a way that it makes things easier for the users by hiding the complex technical details. It separates how data is stored physically, how it is organized logically, and how it is viewed by the users. This setup helps to manage large and complex data in a more effective way while also making sure that everything remains secure, accurate, and fast. Due to this structure, you can focus on how your data is organized without bothering about where and how it is stored in the system. To learn more about databases, explore our blog and enroll in the SQL Certification Course.
Structure of Database Management System – FAQs
Q1. Can I use a DBMS without knowing its structure?
Yes, you can, but you should know the structure to organize and optimize data.
Q2. Is the structure of a DBMS the same for all types of databases?
The basic structure is similar, but some parts may vary depending on the DBMS type.
Q3. Does the structure of DBMS affect the performance?
Of course, an efficient structure of DBMS can significantly enhance speed and performance.
Q4. Can the DBMS structure be changed after setup?
Some parts of the DBMS can be modified, but big changes may need careful planning and backups.
Q5. Who is responsible for maintaining the structure of the DBMS?
The Database Administrator (DBA) usually manages and maintains the DBMS structure.
