Swapping in an Operating System (OS)


Memory management is a key function of an operating system because it directly affects system performance. Swapping is a common technique used when memory is limited. Swapping allows the operating system to move inactive programs or data from RAM (Random Access Memory) to a designated area on the hard disk called swap space. This frees up RAM for active programs, while the inactive ones remain in the swap space until they are needed again. In this blog, you will explore swapping in the operating system, its importance, and how it works in detail.

Table of Contents:

What is Swapping in an Operating System?

Swapping in an operating system is a method of managing memory more efficiently. Swapping occurs when the system does not have enough space in the main memory or the RAM, and it needs to temporarily move the data or program that is not currently being utilized to a designated place on the hard disk called swap space. The process of interchanging data back between the RAM and swap space is called swapping, and it allows a user to run multiple programs at once, even if they do not have enough RAM. This ensures that active programs have enough memory to operate effectively.

What is Swapping in Operating System.
Become a Job-Ready Software Engineer
Master coding, system design, and real-world projects with expert mentors.
quiz-icon

Importance of Swapping in an Operating System

Swapping plays an important role in managing the memory of the computer system. It helps the operating system run the programs efficiently.

1. Efficient Memory Use:  Swapping ensures that the memory is used efficiently by moving the program that is unused to the hard disk.

2. Smooth Multitasking:  It allows the user to run many programs at the same time without affecting the performance of the system.

3. System Stability: Swapping helps in preventing the system from crashing when the memory is full. It keeps the system stable by moving the unused data out of the RAM during heavy usage.

4. Support of Large applications: Programs requiring more memory than is physically available in RAM can still execute effectively because there is additional space that is generated through the swapping process, moving the unused information.

5. Improved User Experience: Swapping enhances system responsiveness by minimizing delays during multitasking.

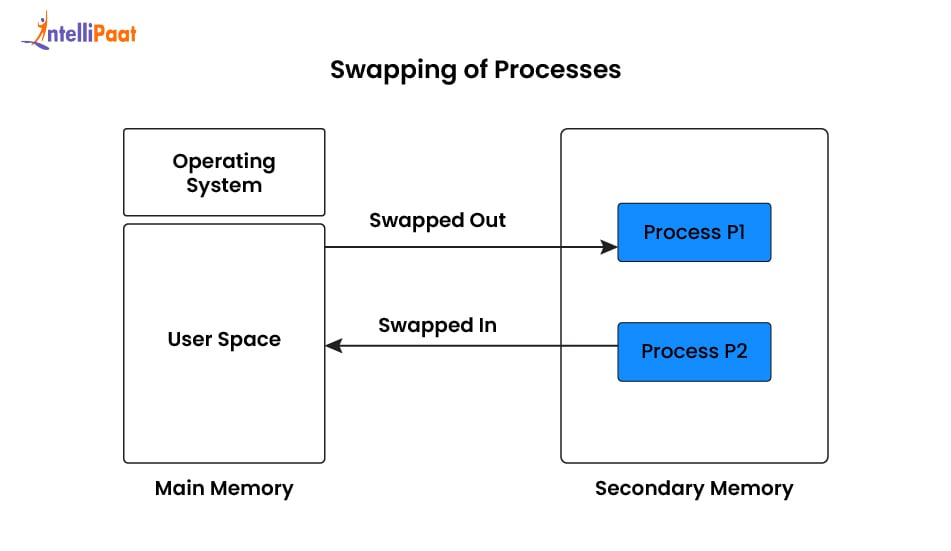

Phases of Swapping in an Operating System

Swapping in an operating system occurs in two phases. These phases are responsible for moving data between main memory and the swap space that is located on the hard disk. The two phases of swapping work together so that the system can handle more programs to execute than the amount of space that is available in the RAM.

1. Swap In Phase in Operating System

The Swap In phase is the process of moving a program or data back into main memory from the swap space. This takes place when a program that was moved out is needed again. The operating system checks if there is space available for the program in the RAM. When the available space is found, the data is loaded back into main memory so that it can be used again by the processor. This phase is very important because it allows the user to continue working on a program without noticing any delay. In a case where the RAM was full, the system may first remove other data that was not recently used, to make enough available space to load the program that needs to be swapped in.

2. Swap Out Phase in Operating System

The Swap Out phase is the process of moving data or a program from the main memory to swap space on the hard disk. This would usually occur when the system has run out of memory and has to swap out a program to free up memory for a priority program to be executed. The operating system will look for a program that is not being used at this moment and swap the program to the swap area. This helps the program that is more important to use the memory of the RAM. This phase is very useful to better management of the memory since only the most programs then are more essential programs are stored in the RAM.

Working of Swapping in an Operating System

Let’s explore the working of swapping in an operating system:

Step 1: Process Selection for Swapping

The operating system monitors all active processes and identifies those that are idle or not frequently used. These selected processes are removed from the main memory to make space for other important or high-priority programs. This helps ensure that memory is allocated efficiently and that essential tasks continue to run without interruption.

Step 2: Data Swapping to Swap Space

Once a process is selected, the operating system transfers its data from RAM to a designated area on the hard disk known as swap space. This process frees up memory so that other programs currently in use can function smoothly. The data is safely stored in the swap space and remains accessible when the process needs to run again.

Step 3: Process Suspension

After the data has been moved to the swap space, the process is marked as suspended and enters a waiting state. While in this state, the process does not receive any CPU time or system resources. The operating system keeps track of the process’s location and status so that it can be easily restored when needed.

Step 4: Reloading the Process

When the user or the system requests the suspended process again, the operating system first checks if there is enough free memory available in RAM. If the memory is still full, the system may repeat the swapping process by moving another inactive process to swap space. The suspended process is then reloaded into memory only after the operating system confirms that enough space has been made available.

Step 5: Process Resumption

Once the process has been successfully loaded back into memory, it resumes its execution from the exact point where it was paused. The CPU continues processing the task without any data loss or reset. To the user, the process appears to run continuously, maintaining the smooth and efficient operation of the system.

Get 100% Hike!

Master Most in Demand Skills Now!

Swapping vs Paging vs Segmentation in an Operating System

Feature Swapping Paging Segmentation
Definition Swapping moves entire processes between main memory and disk to manage space. Paging splits memory and processes into equal-sized blocks for efficient allocation. Segmentation breaks memory into variable-sized logical sections like code and data.
Memory Division No internal structure within the process Uses equal-size pages and frames Uses code, data, stack as separate segments
Address Translation Simple relocation of the full process Logical address is split into page number and offset Logical address has segment number and offset
Memory Use Can cause external fragmentation Can cause internal fragmentation No internal fragmentation, may cause external
Performance Slower due to full process moves Faster and more efficient memory use Efficient for logical grouping but harder to manage
Usage Used in older or simpler systems Common in modern operating systems Used when logical separation is needed

Common Mistakes While Swapping in an Operating System

Let’s explore the common mistakes while using swapping:

1. Swapping Too Frequently: Constant swapping reduces the speed of the system and can lead to thrashing, as most of the time is spent moving the data instead of running the program.

2. Poor Process Selection: Moving out important or active processes causes delays as they need to be loaded again quickly.

3. Not Checking Memory Space: Loading the program when there is not enough space without checking it properly causes errors or unnecessary additional swaps.

4. Ignoring Disk Speed Limits: Swapping usually uses hard disks, which are slower compared to RAM. If the hard disk is slow, swapping takes more time and may affect the performance of the entire system.

5. Not Setting Swap Space Correctly: Too little swap space causes problems in the memory when many programs run. Too much swap space wastes disk space and affects performance.

Best Practices to Minimize Swapping in an Operating System

1. Use Sufficient RAM: Make sure that your system has enough physical memory to support the programs you use regularly. The more RAM you have, the less swapping is used.

2. Keep Unused Programs Closed: Leave only the programs you need open. The other programs you’re not going to use can be closed, which will free up memory and lessen swapping.

3. Check the Running Processes: Check the programs you have open and processes that use the most memory, and see if you need to close or limit any programs that you are not using.

4. Manage the Swap Space Properly: Allocate swap space size according to your system. Do not make the swap too small or too big.

5. Use Faster Storage Devices: If possible, try to use SSDs instead of HDDs for a swap device. SSDs offer much greater speeds, which can mean much greater speed for swapping.

Conclusion

Swapping plays a crucial role in memory management by ensuring efficient allocation of limited resources among multiple tasks. Understanding its working, benefits, and challenges helps improve overall system performance and stability for both users and developers. It also prevents system crashes by prioritizing active processes. With proper configuration, swapping can significantly enhance multitasking and resource handling in modern operating systems.

Take your skills to the next level by enrolling in the Software Engineering Course today and gaining hands-on experience. Also, prepare for job interviews with Software Engineering Interview Questions prepared by industry experts.

Swapping in an Operating System (OS) – FAQs

Q1. What is swapping in operating system?

Swapping is the process of moving processes between RAM and disk to manage memory efficiently.

Q2. How does swapping help in memory management?

It frees up RAM by temporarily shifting procceses that are inactive to the hard disk.

Q3. What happens when a process is swapped out?

The process is saved to disk and paused until it’s brought back into RAM for execution.

Q4. Is swapping the same as paging?

No, swapping moves entire processes, while paging moves fixed-size memory blocks.

Q5. When does an OS perform swapping?

Swapping occurs when the system is low on RAM or handling multiple active processes.
