Bytecode in Java

In Java, the source code you write is not directly understood by the computer. Instead, it is first converted into bytecode, an intermediate form that can run on any system with a Java Virtual Machine (JVM). This bytecode makes the Java platform independent, secure, and highly portable. In this guide, we will understand bytecode in Java with its examples, advantages, and disadvantages.

What is Bytecode in Java?

Bytecode is the compiled version of your Java source code. When you compile your .java file using the Java compiler (javac), it converts your code into a .class file that contains bytecode. This bytecode can run on any computer or operating system that has a Java Virtual Machine (JVM).

Below are some characteristics of bytecode in Java:

• Platform Independent: Bytecode allows the Java program to run anywhere, i.e., Windows, macOS, Linux, etc.
• Secure and Portable: The same .class file can run on any device that has a JVM.
• Optimized Execution: JVM uses the technique like Just-In-Time (JIT) compilation to convert the bytecode into native machine code for faster execution.

How is Bytecode in Java generated?

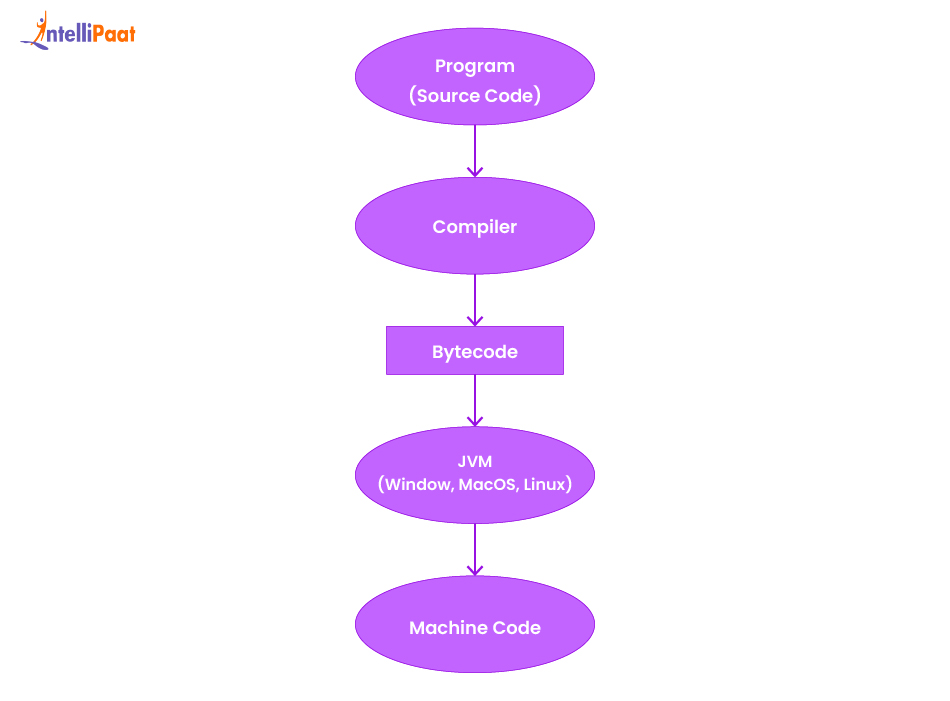

Java source code is compiled by the Java compiler into platform-independent bytecode, which is then loaded and executed by the JVM. Now, let us discuss it in detail with the help of a flowchart.

1. Program (Source Code)
This is the place where you write your Java program. It is written in a form that developers can easily understand and modify as per the requirement.

2. Compiler
The job of the compiler is to translate your source code into a special form called bytecode. This step mainly checks your program for errors and then converts it into instructions that the Java system can understand.

3. Bytecode
Bytecode is an intermediate language between the code and the hardware of a computer. It is not specific to any operating system, i.e., it can run on any device that has a Java Virtual Machine (JVM).

4. JVM (Java Virtual Machine)
The JVM reads and executes the bytecode and acts like a bridge between the program and the operating system. Every platform has its own JVM, which makes Java programs portable.

5. Machine Code
Finally, the JVM converts the bytecode into machine code. These are the actual instructions that the processor of a computer can execute. This is how a Java program runs and gives the output.

Bytecode in Java with Example

Now, let us discuss how bytecode is generated by following the steps with the help of an example.

Step 1: Write the Java program

Code:

Step 2: Compile the Code

javac one.java

Step 3: View Bytecode

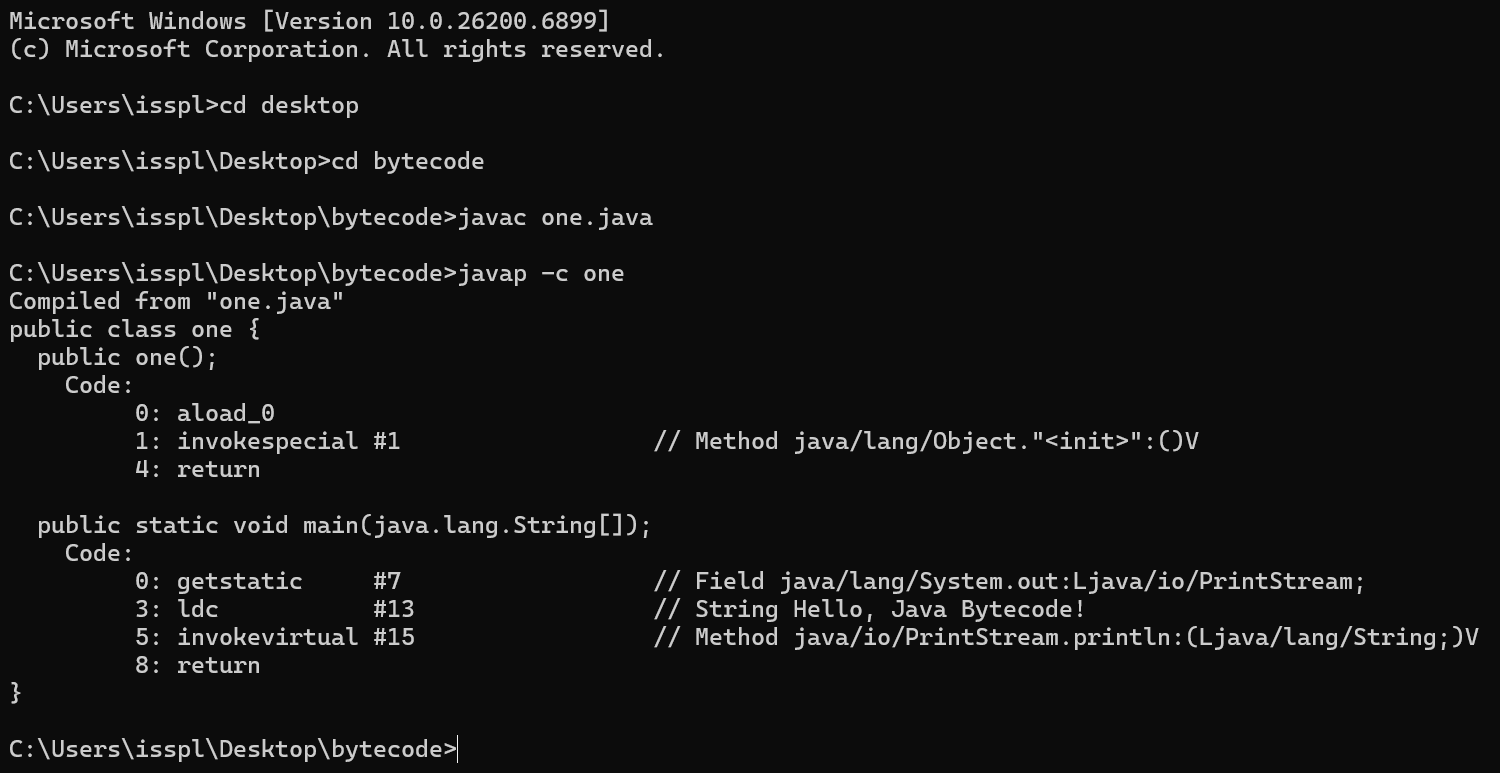

You can view the bytecode using the javap tool:

javap -c one

Output:

In the above output, the bytecode for one.java shows two parts: the constructor and the main method. The constructor starts the object by calling the constructor of the Object. The main method loads the System.out, and then pushes the string “Hello, Java Bytecode!”.After that, it calls println to print it, and at last exits. The JVM is responsible for executing these instructions step by step by using a stack, which produces the output on the console.

Bytecode Structure

When you compile a Java program, the compiler creates a .class file, which contains bytecode. The .class file has a structure that mainly the JVM understands. Let us understand it in detail.

.class File
│
├─ Magic Number (0xCAFEBABE)
├─ Version Info (minor, major)
├─ Constant Pool (strings, class/method references)
├─ Access Flags (public, final, etc.)
├─ This Class & Super Class
├─ Interfaces (implemented by class)
├─ Fields (variables with type & access info)
├─ Methods (name, descriptor, bytecode)
└─ Attributes (Code, LineNumberTable, SourceFile, Exceptions)

1. Magic Number

The first 4 bytes of every .class file are a magic number:

0xCAFEBABE

The JVM uses this to identify the file as a valid Java class file. And, if the magic number is missing or wrong, the JVM will throw an error.

2. Version Information

After the magic number, the next 4 bytes are used to store the version of the class file:

• Minor version (2 bytes): It stores small updates, rarely used.
• Major version (2 bytes): It stores the Java version used to compile the file.

For example:

JVM uses this to check if the class file is compatible with the JVM version.

3. Constant Pool

This contains all the constants that the class uses. It includes:

• Strings (e.g., “Hello, Bytecode!”)
• Class names
• Method names and descriptors
• Field names

Bytecode instructions refer to these constants by index.

For example,

System.out.println("Hello!");

In the above example,

• “Hello!” is stored in the constant pool.
• ldc #13 loads a constant at index 13 from the pool.

4. Access Flags

The access flags are used to describe the properties of the class.

For example:

• public: accessible by all classes
• final: cannot be subclassed
• abstract: cannot be instantiated
• interface: indicates it’s an interface

JVM uses these flags to control class behavior.

5. This Class and Super Class

• This Class refers to the name of the current class (e.g., Hello).
• Super Class refers to the name of the parent class

JVM uses this to implement the inheritance relationships.

6. Interfaces

If the class implements any interfaces, they are listed here and each interface is stored as an index in the constant pool.

For example:

class MyClass implements Runnable

Runnable is listed here.

7. Fields

This section contains all the variables that are declared in the class (also called fields). For each field, the JVM stores:

• Name
• Type (e.g., int, String)
• Access flags (private, static, etc.)

For example:

private int age;
public String name;

JVM uses this information to allocate the memory for the fields of the object.

8. Methods

It contains all methods in the class, including constructors (<init>). For each method, the JVM stores:

• Method name (from constant pool)
• Descriptor (parameter and return types)
• Access flags (public, static, etc.)
• Code attribute → the actual bytecode instructions

For example, the main(String[] args) method contains bytecode to print messages.

9 Attributes

These are the additional metadata about the class, methods, or fields. Some of the common attributes include:

• Code contains the bytecode instructions
• LineNumberTable maps bytecode to source code lines (helps debugging)
• SourceFile name of the .java file
• Exceptions list of exceptions a method can throw

It provides extra information to help JVM and debugging tools.

Tools and Libraries for Bytecode Manipulation

Some of the tools and libraries for bytecode manipulation are as follows:

1. ASM

ASM is a low-level Java library that lets you to read, write, and modify the class files directly at the bytecode level. It gives you full control over the instructions, method bodies, and class structure. It is fast and efficient, and developers use it to create the Java agents, monitoring tools, or frameworks that need to instrument code at runtime.

2. Byte Buddy

Byte Buddy is a high-level library that is built on top of the ASM. It allows you to create and modify Java classes by using a simple Java API without writing bytecode. Byte Buddy is very user-friendly and is widely used for aspect-oriented programming and to create mocking frameworks.

3. Javassist

Javassist is another popular library that makes bytecode manipulation simpler. It offers a source-level API, i.e., you can easily add or modify the methods by writing Java code as strings. It also has a bytecode-level API for more advanced manipulations.

4. Apache BCEL

Apache BCEL (Byte Code Engineering Library) is an older library that is used for analyzing, creating, and modifying Java class files. It provides a clear and detailed model of the class file structure, which makes it useful for learning how the Java bytecode works. It is still used for educational purposes, and some tools use it to generate class files.

5. Soot

Soot is a more advanced framework that is used to design and transform Java programs. Instead of working with bytecode, it first converts the classes into intermediate representations like Jimple, which are easier to analyze and modify.

Real-World Relevance of Bytecode

1. Platform Independence

One of the most important uses of bytecode is its platform independence. Java source code is compiled into bytecode, which runs on the Java Virtual Machine (JVM) rather than directly on the hardware.

2. Performance Optimization

Although Java bytecode is not native machine code, the JVM is used to optimize it at runtime. Modern JVMs use Just-In-Time (JIT) compilers that convert the bytecode into optimized machine code while the application is running.

3. Runtime Instrumentation and Monitoring

Multiple tools like profiling agents, APM (Application Performance Management) tools, and frameworks mainly modify the bytecode at runtime to insert monitoring logic. This is how tools can track method execution times, memory usage, or database queries without changing the original source code.

4. Security and Obfuscation

Bytecode renames the classes, methods, and variables to make it hard for the attackers to understand the program logic. This helps the companies to protect their property and sensitive algorithms.

5. Frameworks and Libraries

Many popular frameworks and libraries depend on bytecode manipulation. For example:

• Spring uses proxies and runtime instrumentation to provide features like dependency injection and AOP.
• Hibernate can generate runtime bytecode for entity classes to optimize database interactions.
• Mockito uses bytecode manipulation to create dynamic mocks in unit testing.

Advantages of Bytecode in Java

Below are the advantages of Bytecode in Java.

• Platform Independence: Bytecode allows Java programs to run on any system with a Java Virtual Machine (JVM).
• Security: Running Java bytecode in the JVM provides an extra safety layer, as no unauthorized access is given to system resources.
• Optimization of Performance: The Just-In-Time (JIT) compiler of the JVM translates the byte-code to fast machine code just in time, and therefore Java remains fast and cross-platform at the same time.
• Runtime Flexibility: Bytecode has runtime features such as dynamic class loading, reflection, and instrumentation. This allows frameworks and libraries (like Spring, Hibernate, and Mockito) to modify the behavior, which makes Java highly flexible for modern applications.
• Supports Advanced Tools: Bytecode forms the basis for tools like profilers, debuggers, static analyzers, and code coverage tools.

Disadvantages of Bytecode in Java

Below are the disadvantages of Bytecode in Java.

• Not Fully Native: Since bytecode runs on the JVM and not directly on hardware, it can be slightly slower than programs compiled to native machine code, especially for computation-intensive tasks.
• Needs JVM: A JVM is required on whatever machine you are running it on. Such an additional step is annoying, particularly when you are in an environment that does not enjoy installing Java or is simply unable to.
• Reverse-Engineered: Bytecode is platform-independent, yet it is less difficult to reverse-engineer than native code. Without obfuscation, others can decompose your.class files and have a look at your source code.
• Difficulty in Low-Level Optimization: Optimizing at the level of the bytecode implies that you want to know every one of the JVM instructions and the format of the class file.
• Extra Layer of Abstraction: You have an extra layer between your code and the hardware. That provides flexibility and portability, but comes at the cost of developers having a reduced level of control on precise execution, memory allocation, and performance relative to native code.

Conclusion

From the above article, we learned that bytecode in Java is a compiled version of the source code of Java. It is generated by the Java compiler and later executed by the JVM, which translates it into machine code. Its structure has many categories, like magic number, version information, and many. Further, there are many other tools and libraries that are used for bytecode manipulation, like Javassist, Soot, etc.
