Indexing in DBMS: Primary, Secondary & Clustered Index

Database Management Systems (DBMS) handle large volumes of data that need to be accessed quickly and efficiently. Indexing is a technique used in DBMS to speed up the search for specific records within the database. It plays a crucial role in enhancing query performance and alleviating system load. By utilizing indexing, database-driven applications can operate more efficiently and quickly. In this blog, you will learn about the concept of indexing in DBMS, its different types, importance, and practical uses.

Table of Contents:

• What is Indexing in DBMS?
• Features of Indexing in DBMS
• Attributes of Indexing in DBMS
• Types of Indexing in DBMS
• File Organization Techniques in Indexing
• Basic Terminology for Indexing in DBMS
• Real-World Application of Indexing in DBMS
• Conclusion

What is Indexing in DBMS?

Indexing in a Database Management System (DBMS) is a data structure technique used to quickly locate and access the data in a database table. An index is created on one or more columns of a table to help find data faster and reduce the work the system has to do. Indexes use different structures like binary trees, hash tables, or bitmaps, depending on how they will be used and what type they are.

Although indexes improve read operations, they can slightly slow down write operations, such as INSERT, UPDATE, and DELETE, because the index structure must be updated.

SQL Syntax for Indexing in DBMS

Here are some common SQL commands for creating indexes:

1. Basic Index:

CREATE INDEX index_name ON table_name(column_name);

2. Unique Index:

CREATE UNIQUE INDEX index_name ON table_name(column_name);

3. Composite Index (multiple columns):

CREATE INDEX index_name ON table_name(column1, column2);

4. Filtered Index (specific condition):

CREATE INDEX index_name ON table_name(column_name) WHERE condition;

5. Expression Index (computed values): (PostgreSQL example)

CREATE INDEX index_name ON table_name(LOWER(column_name));

Level Up Your Tech Skills – Take Our SQL Pro Course Now

Learn from basics to advanced queries with hands-on lessons, live Q&A, and earn a recognized certificate.

Explore Program

Features of Indexing in DBMS

Indexing provides essential features that enhance the performance and efficiency of database systems. These include:

1. Faster Data Retrieval: Indexing speeds up the process of retrieving rows from a table by avoiding the need to scan the entire dataset.

2. Improved Query Performance: Proper indexing enhances the execution of queries involving conditions like WHERE, JOIN, ORDER BY, and GROUP BY.

3. Support for Uniqueness: Indexes help enforce uniqueness constraints on columns, such as those defined by primary keys.

4. Reduced I/O Operations: Indexes decrease the number of disk accesses required to locate information, improving overall system efficiency.

5. Efficient Sorting: By keeping data in a sorted format, indexes improve the performance of sorting operations.

Attributes of Indexing in DBMS

Indexing comes with certain attributes that define how it works:

• Access Methods: Describes how data is retrieved, such as searching for specific values or scanning a range of records.
• Lookup Time: The duration required to locate a particular record or a set of records in the database.
• Insert Time: The time needed to identify the correct position and add new data into the structure.
• Delete Time: The time it takes to remove a record and update the associated index accordingly.
• Storage Overhead: The extra memory or disk space consumed by maintaining the index structure.

Advantages and Disadvantages of Indexing in DBMS

Indexing in DBMS offers faster data access and improved query performance, but it comes with storage and maintenance overhead.

Advantages of Indexing in DBMS

1. Faster Data Retrieval: Indexes allow quick access to records without scanning the entire table.
2. Improved Query Performance: Enhances the efficiency of SELECT queries, JOINs, ORDER BY, and GROUP BY operations.
3. Support for Uniqueness: Enforces unique constraints on columns like primary keys to maintain data integrity.
4. Reduced I/O Operations: Minimizes disk access by providing direct pointers to data locations.
5. Efficient Sorting: Maintains data in sorted order, speeding up ORDER BY and range queries.

Disadvantages of Indexing in DBMS

1. Slower Write Operations: INSERT, UPDATE, and DELETE become slightly slower because indexes must be updated.
2. Additional Storage Required: Indexes consume extra disk space depending on their type and size.
3. Maintenance Overhead: Indexes need periodic updates, which adds management complexity.
4. Over-Indexing Risk: Too many indexes can degrade performance instead of improving it.
5. Not Always Suitable: For small tables or rarely queried columns, indexes may offer minimal benefit.

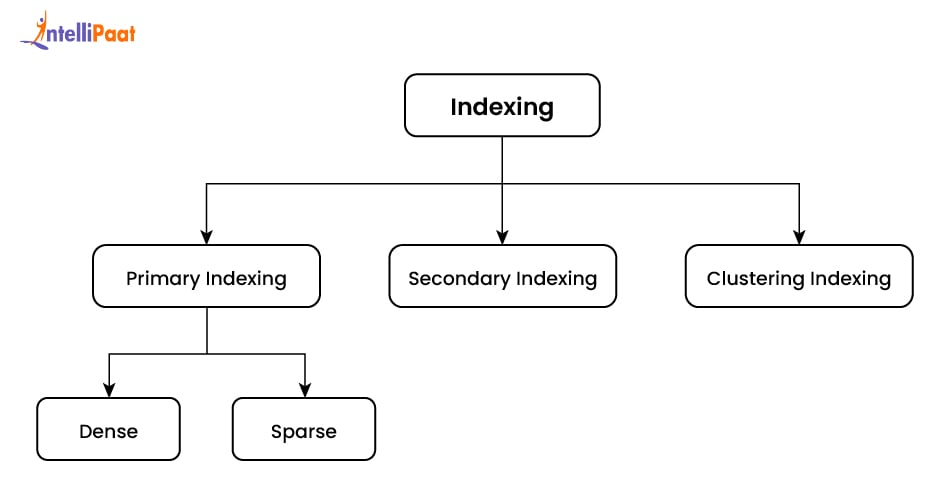

Types of Indexing in DBMS

Indexing in DBMS is classified based on data storage, access and maintenance of the data. It is very useful in the fast retrieval of data and in enhancing the performance of queries. The more common types of indexing used on databases are illustrated below.

1. Primary Index in DBMS

A primary index is created on a column that has unique values, usually the main key of the table. It keeps entries sorted and points to blocks of data, which helps the system find records faster. Instead of having an entry for every single record, it usually has one entry per data block, saving space while still enabling quick searches. This kind of index is very useful when you want to find something by its unique ID quickly.

2. Clustered Index in DBMS

A clustered index sorts the whole table based on the column you choose. So the data is stored physically in that order, which makes searching for ranges or sorted data very fast. You can only have one clustered index per table because the rows cannot be sorted in more than one way at the same time. Clustered indexes are especially effective when queries frequently search for a range of values or require sorted data.

3. Non-Clustered (Secondary) Index in DBMS

Non-clustered indexes are separate from the table data and do not change how data is stored. They keep pointers to where the data lives. You can have many of these on different columns, which helps speed up many different searches. Because they point to data elsewhere, sometimes finding the actual row takes a bit longer compared to clustered indexes.

4. Dense and Sparse Indexing in DBMS

A dense index contains an entry for every record, which enables rapid data retrieval but requires greater storage space. A sparse index stores entries for only some records, typically one per data block. This approach saves storage space but can be slower since it may require extra steps to locate the exact record. It represents a balance between speed and storage efficiency.

5. Single-Level Indexing in DBMS

Single-level indexing is the simplest form, consisting of a single list of key-pointer pairs. It performs well with small datasets, allowing quick lookups. However, as the data size increases, this simple index becomes less efficient because it must scan through more entries sequentially.

6. Multi-Level Indexing in DBMS

Multi-level indexing resolves this challenge by arranging indexes in a hierarchical structure. Each level directs to the next, allowing the system to narrow down searches step by step instead of scanning a large list at once. This approach is highly effective for large datasets, as it minimizes disk access and greatly improves lookup speed.

7. Ordered Indexing in DBMS

Ordered indexing maintains all index entries sorted according to their key values. This organization facilitates efficient searching, insertion, deletion, and range queries. Data structures such as B-trees and B+ trees are commonly used to ensure balanced and fast operations. This type of indexing is commonly used because it delivers consistent and fast performance across a wide range of database queries.

File Organization Techniques in Indexing

File organization techniques determine how data is stored and accessed in a database system. These techniques play a crucial role in the efficiency of indexing and overall database performance.

1. Heap File Organization

In heap file organization, records are stored in no particular order. New records are simply inserted at the end of the file. This method is simple to implement but inefficient for searching, as it requires scanning the entire file to find specific records.

2. Sequential File Organization

Records are stored in a specific sequence based on one or more key fields. This organization allows for efficient retrieval of records in sequence and supports binary search for faster access. However, inserting new records can be time-consuming as it may require reorganizing the entire file.

3. Hashed File Organization

This technique uses a hash function to determine the physical location of records. The hash function converts the key value into an address where the record is stored. Hashed organization provides very fast access for exact match queries but performs poorly for range queries.

4. Indexed Sequential Access Method (ISAM)

ISAM combines sequential and indexed organization. Records are stored sequentially, and multiple levels of indexes are maintained to provide quick access to any record. This method supports both sequential processing and direct access efficiently.

5. B-tree File Organization

B-tree organization maintains a balanced tree structure where each node can have multiple children. This method ensures that all leaf nodes are at the same level, providing consistent performance for insertions, deletions, and searches. B-trees are widely used in modern database systems.

6. Clustered File Organization

In a clustered organization, records from one or more relations are stored together based on common attributes. This reduces I/O operations when accessing related records and improves join performance between tables.

Each file organization technique has its advantages and trade-offs in terms of storage efficiency, access speed, and maintenance overhead. The choice of organization depends on the specific requirements of the application and the types of queries that will be most frequently executed.

Basic Terminology for Indexing in DBMS

It is important to understand the key terms related to indexing.

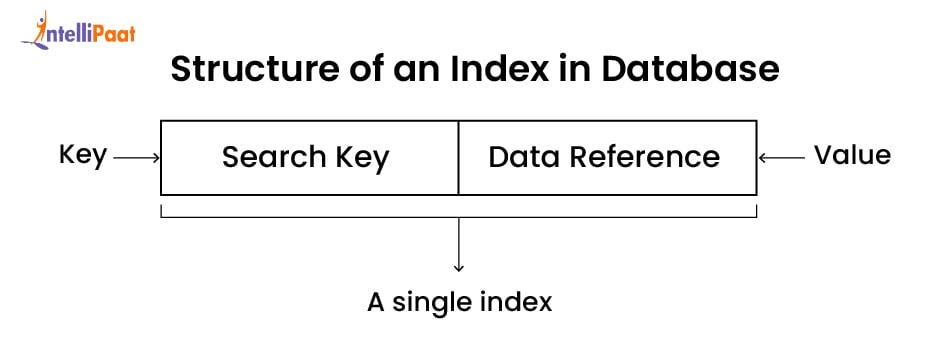

1. Index: An index is a way of organizing data that stores the values of one or more columns along with links to the rows in the table. It helps the database find information quickly without checking every record.

2. Search Key: A search key is the column or set of columns used to build an index. It is the part of the data that the index looks through and helps shape the index’s structure.

3. Indexed Column: An indexed column is an actual column in a table used to create an index. Indexes can be made on one or more columns, and searches using these columns become faster.

4. Pointer: A pointer is a reference in the index that shows where the real data is stored in memory or on disk. It connects each index entry to the correct row in the table.

Real-World Application of Indexing in DBMS

1. E-commerce Websites: Indexing helps users quickly find and filter products by name, price, category, and ratings, making shopping faster and easier.

2. Banking Systems: Indexes allow banks to quickly access customer details, transaction history, and account information, so queries run faster.

3. Healthcare Systems: Hospitals use indexing to quickly find patient records, appointment details, medical history, and test results, helping doctors work faster.

4. Library Management Systems: Indexing helps organize books by title, author, or category, so it’s easier for people to find what they need.

5. Telecommunications: Indexing makes it faster to access call records, customer information, and billing data, helping companies manage their services smoothly.

Master the Basics of SQL – Without Spending a Dime!

Dive into structured lessons, practice queries, and foundational concepts for completely free.

Explore Program

Conclusion

Indexing plays a crucial role in modern database management systems. It helps improve query performance by reducing the time needed to find data, allowing faster and more efficient data retrieval. Indexing also ensures better use of system resources. For example, it makes product searches faster on e-commerce sites and helps healthcare systems quickly access patient information. Being able to find data quickly allows developers and database administrators to create efficient systems that provide fast and reliable access to information.

Take your skills to the next level by enrolling in the SQL Course today and gain hands-on experience. Also, prepare for job interviews with SQL Interview Questions prepared by industry experts.

Indexing in DBMS – FAQs
