IoT Architecture: Key Layers, Components, and Use Cases

IoT architecture is a structured framework that facilitates organized communication for smart devices. Due to this, the Internet of Things (IoT) is not only emerging recently, but it is also adapting rapidly in today’s digital world as we are interacting with the help of technology by connecting devices to collect, share, and process information. Smart devices can automate and connect devices with each other. It is essential to know IoT architecture, which allows not only the development of smart systems but also makes IoT systems scalable and efficient.

In this article, we will discuss what IoT is, what IoT architecture is, the layers of IoT, the stages of IoT architecture, the benefits and challenges of IoT, and modern applications of IoT architecture.

Table of Contents:

• What is the Internet of Things (IoT)?
• What is IoT Architecture?
• Layers of IoT Architecture
  • Sensing Layer
  • Network Layer
  • Processing Layer
  • Application Layer
• Stages of IoT Solutions Architecture
• Considerations When Choosing an IoT Solution
• Benefits of IoT Architecture
• Drawbacks of IoT Architecture
• Modern Applications of IoT
• Conclusion

What is the Internet of Things (IoT)?

The Internet of Things (IoT) is a network of smart devices or things that are embedded with sensors, software, and other technologies, which are used to collect, exchange, and process data over the internet. These “things” or smart devices can be anything from household devices such as smart thermostats and wearables, to industrial machines and connected vehicles. The main idea behind IoT is to extend internet connectivity to everyday devices.

IoT examples may include a fitness band that tracks your heart rate and then connects with your smartphone, smart home lights that turn on when you arrive home, industrial sensors that can detect equipment failures, or smart cities that optimize traffic, waste, and energy.

What is IoT Architecture?

The Internet of Things (IoT) architecture is the organized framework for developing IoT systems. It helps to understand how the various components communicate and how data is transmitted from connected devices to applications and users. The IoT architecture organizes the entire IoT ecosystem into layers (stages) with specific roles. These layers work together to ensure that data from connected devices is transmitted and processed securely to create smarter, automated, and connected devices or solutions.

There are 4 main layers of IoT architecture:

1. Sensing Layer
2. Network Layer
3. Data processing Layer
4. Application Layer

Layers of IoT Architecture

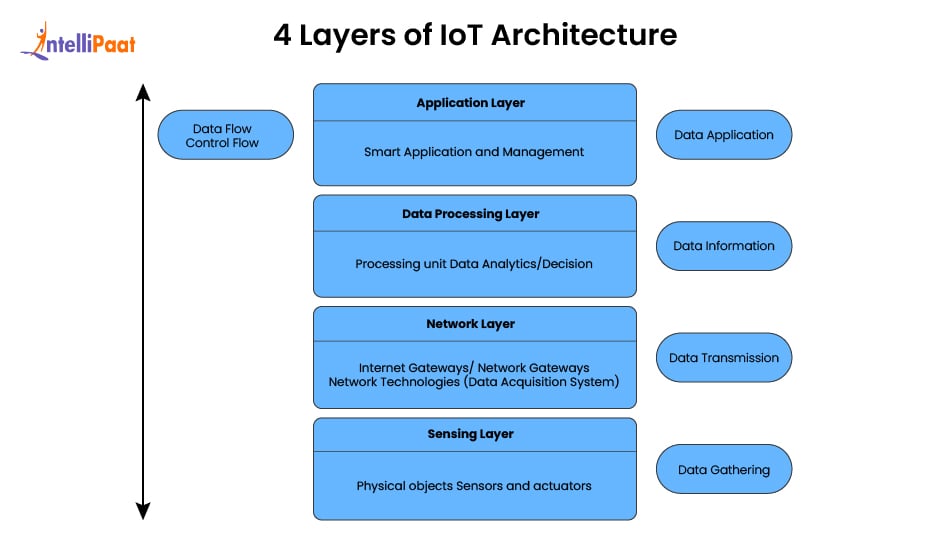

Here is the IoT architecture diagram with four main layers discussed briefly:

1. Sensing Layer

The sensing layer is the first layer of the IoT architecture, and it lies at the lowest level. This layer performs the task of data collection and also acts as the intermediary between the real world and the digital world.

The main objectives of the sensing layer are to:

• Detect and measure physical measurements such as temperature, humidity, pressure, etc.
• Convert physical signals to digital signals suitable for processing.
• Send control signals to the actuators.

The main components of the sensing layer are:

• Sensor: This is the device that collects the data. Examples of sensors include temperature sensors, proximity sensors, cameras, and GPS modules.
• Actuator: The actual device that works on the results of the data or the commands, e.g., motors, relays, servos, etc.
• RFID Tag and Reader: Used for object identification or tracking.
• Embedded System: The microcontroller or microprocessor, which is most often directly connected to the sensors, makes it possible to process and communicate data, operations, etc., in the most efficient manner possible.

Learn to Build and Deploy Cutting-Edge IoT Devices. Get Certified Today!

Join the Course Today to Master IoT Technology!

Explore Program

2. Network Layer

The network layer is the secondary layer in the IoT architecture, which is responsible for the transmission of data collected from the sensing layer to the processing systems. The network layer provides the communication framework for the IoT ecosystem, facilitating reliable connectivity and secure data flow between devices, gateways, and servers.

The key functions of the network layer are:

• Providing connectivity and routing for transmitting data across interconnected networks.
• Ensuring secure and efficient connectivity through the proper implementation of networking protocols.
• Providing a scalable connectivity solution to accommodate a large number of connected devices.

The main components of the network layer are:

• Network Interface Modules: The physical hardware of IoT devices that is responsible for communication (e.g., Wi-Fi module, cellular module, etc.).
• Gateways and Routers: They are the devices that connect sensor networks to processing systems, so that they can aggregate data and perform filtering of data.
• Communication Protocols: The technologies that enable data transfer, including Wi-Fi, Bluetooth, Zigbee, LoRa, 4G/5G, and Ethernet.

3. Processing Layer

The processing layer, also referred to as the middleware or data processing layer, is the third layer in the IoT architecture. It is used to store, manage, and analyze data obtained from the first two layers of the IoT architecture. The processing layer generates useful information from raw sensor data through various data manipulations (aggregation, filtering, and analysis).

The processing layer functions include:

• Data storage and management.
• Data analysis (real-time or batch).
• Data processing and machine learning to support a number of decisions.

The main components of the processing layer are:

• Data Storage Systems: Databases, data lakes, or cloud storage platforms to store sensor data.
• Analytics Engines: Tools that process data, such as cloud-based analytics on the response model, AI/ML models (predictive responses), and Edge processing units
• Middleware Platforms: Software systems providing APIs for integrating and unifying different IoT devices, and managing the flow of data.

4. Application Layer

The application layer is the top layer of the IoT architecture and is responsible for providing end-users with services and applications based on the processed data. In this layer, processed data is transformed into actionable data that can take the form of visualizations and automated responses to many specific use cases, relevant to specific industries.

The key functions of the application layer are:

• Providing end-user interfaces and applications that allow for monitoring, control, and management of IoT devices.
• Translating insights into actions (or notifications).
• Supporting varied IoT applications, including smart homes, health care, industry automation, and smart cities.

The main components of the application layer are:

• End-user Applications: Software interfaces such as mobile apps, web dashboards, or control panels.
• Visualization Tools: Graphs, charts, and dashboards that present data in a clear and concise way.
• Industry-specific applications: Tailored applications for workplaces such as smart agriculture platforms, connected healthcare, or logistics management software.

Stages of IoT Solutions Architecture

The IoT solutions architecture is built with a multi-layered architecture. Each level or layer of the architecture plays specific functions that result in a complete, working, secure, and scalable IoT solution.

1. Device Layer

• The device layer contains the sensors, devices, and actuators that take in information from the physical world.
• IoT devices can be simple sensors (temperature, humidity) or complex edge devices (cameras, industrial controllers).
• Additionally, there are both wired (Ethernet) and wireless devices (Wi-Fi, Bluetooth, Zigbee, LoRa, and cellular).

2. Connectivity Layer

• As defined in the general definition of connectivity, connectivity is the passing of all or relevant data between devices from the device layer and back-end systems.
• The connections are efficient and logically ordered to allow accurate and timely transfer for throughput processes.
• The connection protocols, for example, MQTT, CoAP, HTTP, and AMQP, are listed to communicate efficiently with the layer below.
• The connectivity layer can consist of gateways having functionalities, for example, protocol translation (to/from MQTT over TLS), local processing, pre-filtering/preprocessing, and secure tunneling.

3. Edge Processing Layer

• Real-time processing is typically at, or near the data source (edge devices, gateways), which optimizes bandwidth, reduces latency, and results in a more immediate response time of IoT solutions.
• A subset of processing options can include: filtering, aggregation, anomaly detection, and preliminary analytics.

4. Data Storage Layer

• This layer handles scalable storage of collected and processed data.
• Can involve on-premises databases, cloud storage, or time-series databases for efficient data retrieval.
• This layer is concerned about durability, redundancy, and compliance in data retention policies.

5. Analytics and Insights Layer

• Applies analytical techniques (descriptive, predictive, prescriptive) to extract meaningful insights.
• Machine learning and statistical models can detect patterns, forecast trends, or identify anomalies.
• Dashboards and visualization tools present insights to stakeholders.

6. Application and Integration Layer

• Connects IoT data with business applications, external services, and enterprise systems via APIs or middleware.
• Enables automation, workflow integration, and supports domain-specific use cases such as predictive maintenance, supply chain optimization, or remote monitoring.

7. Security and Privacy Layer

• Ensures data confidentiality, integrity, and availability through encryption, secure device authentication, and access controls.
• Addresses privacy requirements by managing user consent management, data anonymization policies, and compliance with regulations (e.g., GDPR, HIPAA).

8. Management and Monitoring Layer

• Provides centralized tools for device provisioning, configuration, firmware updates, diagnostics, and performance monitoring.
• Supports scalability by allowing efficient management of large fleets of devices.

9. Business Logic Layer

• Implements domain-specific applications and workflows aligned with organizational objectives.
• Examples include asset tracking, smart home automation, industrial process optimization, and healthcare monitoring.

Considerations When Choosing an IoT Solution

Here are a few considerations that you must consider when choosing an IoT solution for your problem:

1. You should clearly define what you want to accomplish with the IoT and the data you will need.
2. Make sure you can scale the system as you provide more devices or data to the system.
3. You should ensure that any solutions you select or use work with your current systems to ensure that they are interoperable.
4. Select the most suitable connectivity option for your coverage area.
5. Be sure that the system remains reliable with any network or power outages.
6. You should have adequate security and protection of personal data to maintain privacy.
7. Always check that the system can adequately store, process, and analyze the data.
8. You should look for ease of setup, management, and upgrading the system.
9. You should consider your overall costs, including set-up, maintenance, and upgrade costs.
10. Always select vendors with accessible support and a strong partner network or ecosystem.

Benefits of IoT Architecture

1. IoT architecture provides efficient automation, which helps devices to do tasks automatically with minimal human interaction, thus reducing manual effort.
2. It improves efficiency by optimizing resource use and reducing waste.
3. Supports better decision-making through real-time data collection and analysis.
4. It enhances safety and security with continuous monitoring and smart alerts.
5. IoT architecture allows remote monitoring and control of devices from anywhere.
6. It increases scalability by making it easy to add new devices and services.
7. Boosts customer experience with personalized and more responsive services.

Drawbacks of IoT Architecture

1. Security risks exist because connected devices can be purposely hacked and the data compromised.
2. There are privacy issues since IoT devices collect personal and sensitive information, which may not be appropriately handled.
3. IoT creates complexity for designers and management in the relatively large numbers of devices that make up any larger system.
4. High start-up costs occur from expensive devices, networks, and software systems to be installed and in use.
5. Contingent upon connectivity means IoT devices may fall out of use if the internet fails.
6. Data overload occurs because IoT generates unprecedented amounts of data, that are difficult to manage.
7. Interoperability issues stem from devices formed by different manufacturers not working together smoothly.

Modern Applications of IoT

1. Smart Homes: Smart devices for lighting, HVAC, security, and voice-enabled assistants are making homes more comfortable, energy-efficient, and secure.
2. Wearable Devices: Smartwatches and fitness trackers can measure vital health metrics such as heart rate, steps, calories burned, and even sleep tracking in real-time.
3. Smart Cities: Due to IoT technology, cities have built smart streetlights, monitoring traffic congestion, tracking waste, and sensing air pollution to reduce pollution and greenhouse gases.
4. Industrial IoT (IIoT): Factories are utilizing the IoT capabilities by using sensors on connected machines to enable predictive maintenance and real-time monitoring of machines.
5. Connected Vehicles: Vehicles that are provided with IoT technology can take over features like GPS tracking, remote diagnostics, autonomous driving capabilities, and vehicle-to-vehicle communication.
6. Healthcare and Remote Monitoring: Connected medical devices enable remote tracking of patient health while notifying the patient when there is a medical emergency, as well as enabling physicians to monitor a patient for chronic conditions.
7. Smart Agriculture: Farmers use smart sensors to monitor moisture levels in soil, environmental factors for weather, and animal health status, resulting in better yields and reduced resource usage.
8. Retail & Supply Chain: IoT tags and sensors to track inventory and manage stock in real-time, as well as improve the supply chain by reducing lead time for better logistics.
9. Energy Management: Connected smart meters, grids, and devices are capable of monitoring and optimizing energy usage, targeting energy waste, and maximizing renewable energy connection and consumption.

Start Learning Cloud Computing for Free.

Get Started with Free Cloud Training - Enroll Today!

Explore Program

Conclusion

IoT architecture is a framework for designing, building, and operating systems of smart devices. The layers of an IoT architecture share different attributes that provide several features to collect, transmit, and process information in the most efficient and effective manner. The modern Internet of Things has various applications revolutionizing industries, cities, and society for efficiency, safety, and innovation. If you understand IoT architecture and its key layers, advantages, disadvantages, and applications, then you can also know how IoT is rapidly changing our lives.

Internet of Things (IoT) Architecture – FAQs
