Ctypes Module in Python

Python is an easy-to-read and easy-to-use programming language, but you may sometimes need more performance and control, like what is possible with a lower-level language such as C. This is where the Python Ctypes library module came into existence. The Ctypes module provides C-compatible data types and allows calling functions in DLLs or shared libraries. In this article, we will discuss how the Python Ctypes library works, what a shared or DLL library is, why we use Ctypes, and how we can implement them in our Python programming through the Python Ctypes library.

Table of Contents:

• What are Ctypes in Python Programming?
• What is a Shared Library in Ctypes?
• How do you implement the Ctypes module in Python?
• Function Signatures and Data Type Mapping in Python
• Datatype comparison in C, Ctypes, and Python
• Advanced Memory Management in Ctypes
• Ctypes with Multi-threading in Python
• Optimizing Performance with Ctypes in Python
• Common Mistakes When Using Ctypes in Python
• Debugging Techniques for Ctypes in Python
• Why use the Ctypes module in Python?
• Best Practices for Using the Ctype Module in Python
• Practical Examples
• Conclusion

What are Ctypes in Python Programming?

Python Ctypes library is a powerful standard for calling functions in shared C libraries. It’s especially useful when performance efficiency is critical or when you want to reuse existing C code without rewriting it in Python. This phenomenon is called interfacing. Interfacing is when two different technologies communicate with each other based on some rules or conditions. For example, here, the Ctypes module allows the user to call a C function in Python code and use the results to perform some necessary operations without throwing an error.

By using Ctypes, Python developers can:

• Load shared libraries dynamically
• Define and call C functions within Python Programming.

Before moving further, let us first understand what a shared library

What is a Shared Library in Ctypes?

A Shared library is a file that contains precompiled C functions in binary form, which can be utilized by multiple programming languages in programs. It makes it possible for Python to use low-level system C libraries or high-performance C functions to retain efficiency. A low-level system C library is one of those libraries that carry out activities like file handling, network communication, or hardware interaction. Instead of rewriting these functionalities in Python, which is time-consuming, we can utilize Ctypes to invoke C functions from shared libraries and access the corresponding system features.

Similarly, in the case of high-performance computation, say image processing, scientific computing, or data analysis, C functions run much faster than Python code that is interpreted rather than compiled. Python can then delegate these computationally expensive tasks to C through a shared library while still retaining the rest of the program in Python and enjoying the speed boost.

Master Python and Elevate Your Tech Skills Now!!!

Expert-led. Project-based. Certificate included.

Explore Program

How do you implement the Ctypes module in Python?

This step-by-step guide will help you seamlessly integrate C code into Python using Python Ctypes for efficient Python-C integration.

Step 1: Importing the module

Like any other Python module, the first step to use it is to import it into your main.py file.

Code:

Step 2: Writing the C function code file

Implement all the functions you want to import in your Python code in one C file. Make sure the function names are simple and non-overlapping with any other function defined in the Python script. For example, let us create a simple C file containing the add function.

Code:

Save this file as clibrary.c.

Step 3: Compiling C code into a Shared Library

This is the most important step. Without the shared library, importing C functions from the Ctypes module won’t work.

1. Compiling on Windows

Shared libraries have a .dll extension on Windows. The ‘.dll’ extension stands for dynamic link library. To compile a shared library, ensure that MinGW-w64 or another GCC-based compiler is installed. Open the Command Prompt and run:

gcc -shared -o clibrary.dll clibrary.c

2. Compiling on Linux/macOS

On Linux and macOS, shared libraries use the .so extension. The ‘.so’ stands for shared object. Ensure gcc is installed. You can do this by using the gcc –version command (two dashes). Then, compile your shared library with the following command.

gcc -shared -fPIC -o clibrary.so clibrary.c

Key Points:

• The -shared flag instructs GCC to create a shared library.
• Remember, the first file name is the name of the shared library, and the second file is the C file you want to convert into a shared library.

Step 4: Loading the Shared Library in Python

There is a CDLL function in the Ctypes module that is used to load these shared files. Once the shared file is loaded, you can access all the C functions that are in the shared library file.

Python ctypes Example:

C File – clibrary.c and compile into clibrary.dll

This will contain all the C functions that the

Compiling the Shared File

gcc -shared -o clibrary.dll clibrary.c
// Use .so for macOS/Linux

Python File

Output:

Explanation: Here, the function add_numbers() was called from the shared library clibrary.dll and used in the Python file.

Function Signatures and Data Type Mapping in Python

When you are using the Ctypes module to call functions from a C shared library, it’s crucial to mention the function signatures and how data types are mapped between Python and C. This ensures your function calls behave as expected and avoids exceptions and errors.

What is a function signature?

A function signature defines the inputs, the outputs, and the behavioral characteristics of a function or a method. A function signature must have the following features:

• The number of arguments it takes
• The data types of each argument
• And, the return type

Simply put, a function signature is nothing but a function declaration.

int multiply(int a, int b);

Why is it Important?

If you do not specify the function signature properly in the compiled shared library file:

• The data may not be passed to the C function correctly.
• Python may misinterpret the return value.
• It can cause crashes or memory corruption.
• In the best case, your function simply won’t return the correct result.

By declaring the correct data types, you’re instructing Python precisely how to translate its data types into a C-compatible form before calling the function.

Handling signed and unsigned data types

C distinguishes between signed and unsigned integers, but Python integers are always signed. Therefore, when defining the argument data types and return value datatype, pay attention and make sure to mention the correct data type equivalent in Ctypes. Refer to the data type comparisons table in the next section. If you use a signed data type by accident when a C function requires an unsigned data type(or vice versa), it can lead to some unpredictable outputs. Therefore, it is important to pay special attention to the data types you mention. Here is an example to demonstrate the same.

Python ctypes Example:

Datatype comparison in C, Ctypes, and Python

Understanding how C data types map to the Python data types and which data type in Ctypes is equivalent to that mapping is the key to mastering the correct usage of the Ctypes module. Since C is statically typed and Python is dynamically typed, the Ctypes module bridges this difference by offering C-compatible data types that Python can utilize to interact with shared libraries.

The following table compares common data types of C and their equivalent Ctypes and Python data types. Use this as a reference when you’re specifying argument and return types for C functions in Python with Ctypes.

Advanced Memory Management in Ctypes

When working with Ctypes to interface C libraries, it is crucial to know how memory management works, particularly with mutable data, pointers, and dynamic memory allocation in C. This section discusses important concepts and techniques for managing memory safely and effectively when using Ctypes.

Mutable vs. Immutable Memory Handling

Mutable memory refers to the data that can be changed by C functions (like arrays or pointers), while immutable memory, like Python integers and strings, cannot be directly modified. When passing immutable types to C functions that are expecting mutable memory, you must use ctypes functions like byref() or POINTER() to allocate mutable memory in Python. This allows C functions to modify the data and return results via memory references.

Example:

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: Here, because ctypes.c_int creates a mutable memory block, the C function can modify its value from 10 to 99.

Passing and Returning Pointers from C Functions

Python does not have built-in pointer data types. But most of the functions that are complex and have heavy computation use pointers to directly access memory for faster execution. To deal with this issue of Python not being able to give pointer arguments to the C function, Ctypes allows you to pass and receive pointers using the POINTER type in Python.

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: Here, Python receives a pointer from the C function and accesses the memory using array-style indexing even though Python doesn’t have a pointer data type.

Using Ctypes.POINTER() and Ctypes.byref()

When working with C functions using Ctypes, you sometimes need to deal with pointers. In C, pointers are used to reference memory locations directly, which allows functions to modify variables passed to them or return arrays or structs. Python does not support pointers, but Ctypes offers two methods to mimic this data type:

• Ctypes.POINTER(): It is used to specify a C-type pointer to a Ctypes type.
• Ctypes.byref(): It uses a reference, also known as the memory address, of a variable in a function without directly creating a pointer.

Example:

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: Here, Ctypes.POINTER() is used to create a pointer type for function arguments, whereas Ctypes.byref() passes a reference to a variable without initializing a pointer object.

Freeing Dynamically Allocated Memory

We use the malloc() function in C to dynamically allocate memory, like in the case of pointers. When using the malloc() function, it becomes the responsibility of the developer to release the memory after the function is executed using the free() function. Failing to do so can lead to memory leaks. Memory leak is the gradual loss of memory that the program can use, hindering the smooth execution of the program.

Example:

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: Here, the C function dynamically allocates an array, fills it with values from 0 to 3, and returns it to Python. Python gets the pointer, prints out every element, and releases the memory using the respective ‘free_array’ function.

Ctypes with Multi-threading in Python

While working on ctypes with multithreading in Python, you must take care of the multithreading and ctypes concepts in Python. We know that C functions can run in parallel with Python programs because Python releases the GIL (Global Interpreter Lock), but the C Code itself must be thread-safe. Sharing of ctypes objects or C memory between the threads can lead to data corruption or crashes, so you must avoid that. If sharing is required, you must use proper locking (such as mutexes) or follow a safer approach by keeping C functions stateless, or you can even give each thread its own data in your C program.

Why Use Ctypes with Threads?

1. Bypasses the GIL – C functions run in parallel, unlike Python bytecode.
2. Faster Execution – C outperforms Python for CPU-heavy tasks.
3. Reuse C Libraries – Directly call optimized C code (e.g., NumPy, OpenCV).
4. Shared Memory Efficiency – Threads safely access C-managed data.
5. Lighter than Multiprocessing – Avoids IPC overhead while maintaining parallelism.

Example: Parallel Number Crunching

Let’s create a simple C function that performs a calculation and call it from multiple Python threads.
Write the C Code math_operations.c

Now, let’s compile this into a shared library:

gcc -shared -o math_ops.so -fPIC math_operations.c

Python Threading with C types

Output:

Explanation: This code demonstrates parallel execution of C math functions through Python threads using ctypes, showing concurrent calculations of squares plus 10 for numbers 1-5 with potentially unordered but correct output.

Optimizing Performance with Ctypes in Python

1. Precise Type Specification
   Always explicitly define argtypes and restype for C functions to eliminate implicit type conversion overhead and ensure proper data marshaling between Python and C.
2. Efficient Memory Management
   Utilize ctypes.create_string_buffer() or pre-allocated arrays for mutable data transfers, avoiding costly repeated memory allocations during Python-C interactions.
3. Batch Processing Strategy
   Structure your code to process data in bulk through single C function calls rather than making numerous small calls, minimizing Python-C boundary crossings.
4. Computational Offloading
   Implement performance-critical loops and algorithms in C rather than Python, leveraging C’s native execution speed for computationally intensive operations.
5. Resource Cleanup Discipline
   Establish rigorous memory management practices, including proper freeing of C-allocated memory through dedicated cleanup functions to prevent memory leaks that degrade performance.

Common Mistakes When Using Ctypes in Python

A code can give you compilation errors, like wrong syntax or logical errors, such as incorrect values. We have compiled some common errors and provided solutions on how to debug and troubleshoot them.

WinError 193

WinError 193 shows up when the architecture of the Python application and the C application mismatch. The architecture of any application, program, or system refers to its bit-width. Bit-width in architecture refers to the number of bits a computer processor can handle or process at one time. An Architecture is typically 32-bit or 64-bit, which determines how much memory can be addressed and how data is processed.

When using Ctypes modules, the architecture of the Python interpreter and the C-compiled shared library should match, or else it will throw a WinError 193, as shown below.

Fix: You can check the version of your gcc using the command 193 “gcc –version.” Make sure the versions you are using are compatible with each other. This will fix the bit-width problem automatically and is the easiest fix.

Misspelled Syntax or Functions

If the function name in Python does not match the one in the shared library, Ctypes will fail to locate it and throw an error.

Example of Misspelling:

C File – clibrary.c and compile into clibrary.dll

Python File

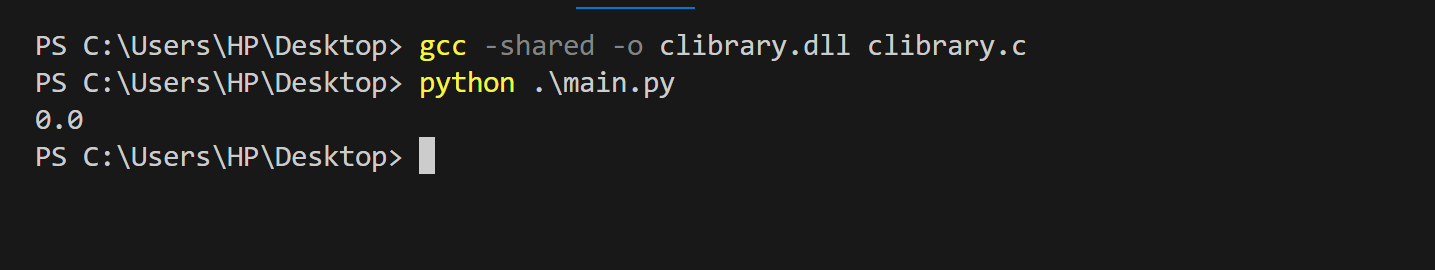

Output:

Explanation: Here, according to the function, the output should have been 125.0, but we are given an incorrect value.

Fix:

Ensure the function name and syntax match exactly.

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: The correct attribute name is argtypes, not argtype. Using the wrong attribute name results in the function not being properly registered.

Incorrect Function Signature in Ctypes

By default, Ctypes assumes that a function returns an integer. If the function signature does not correctly and clearly mention the requirements of the C function, it may result in incorrect return values or compilation errors. Therefore, it is important to explicitly mention the argtypes (argument type) and restype (return type). These definitions tell Python how to convert Python types into C types before calling the function, and how to interpret the return value correctly

Example of Wrong Function Signature:

Output:

Explanation: Here, the function is taking integers, but passing doubles results in a type mismatch, resulting in incorrect or unexpected output.

Fix:

Explicitly define the function signature using argtypes.

Output:

Explanation: Here, the code works fine since we have given the correct data type for the argument.

Memory Management Issues in Ctypes in Python

If the C function returns a pointer, Python might not deallocate its memory properly, and this could lead to undefined behavior. There are two common and major memory management issues that you might face:

• When you use local variables, which are static memory data types, as return values. When the function is successfully executed, the memory is released automatically. So later, when Python tries to access that memory, it is invalid, i.e., it is nowhere to be found. The solution to this is to use dynamic memory data types.
• When you dynamically assign memory with the help of malloc() in C, as you do in the case of pointers, the system provides memory for your program at execution time. However, just before the successful execution of the function, you have to explicitly deallocate memory with the function free() so that it gets unallocated. If you do not release memory properly, you’re left with a memory leak. It is a situation where the system’s memory slowly gets consumed without freeing the memory, resulting in no memory left for the program can use. Thus, it is necessary to free the memory at the correct time while using the types module too. Here is an example to show that.

Example Issue:

C File – string_alloc

Python File

Output:

Explanation: Here, str[] is a local variable and is automatically released after successful execution. When Python tries to access the same memory, which is invalid since the memory was freed causes undefined behavior.

Fix:

When using malloc in C to dynamically allocate memory, remember to free the memory that was allocated in both Python and C code files exactly where it needs to be freed to avoid any memory leak.

C File – clibrary.c and compile into clibrary.dll

Python File

Output:

Explanation: Here, we dynamically allocated the memory through malloc(). This guarantees that once the function returns, the variable str is not destroyed and can be used safely. We must also make sure to free the memory just before the function gets executed completely in Python to avoid a memory leak.

Data Type Mismatches & Incorrect Return Type Handling

Python could misinterpret the value if the return type in Ctypes is not the same as the function return type in C.

Example of Incorrect Return Type:

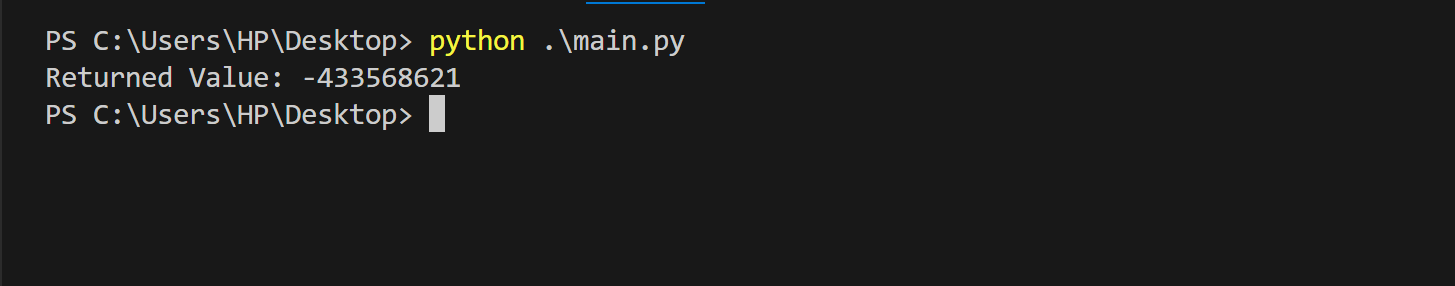

Output:

Explanation: Here, the function returns a double, but it is expecting an int. Because of this, it returns an integer value.

Fix:

Ensure the correct restype is set.

Output:

Explanation: Here, the program now executes normally since we have specified the proper data type of the return type.

Debugging Techniques for Ctypes in Python

Here are some additional tips that you can apply when debugging your Ctypes module code.

• Use Ctypes.util.find_library() to locate shared libraries dynamically.
• Print dir(lib) to check if the function is properly loaded.
• Run the C function separately before using Ctypes to verify it is compiling correctly.

Why use the Ctypes module in Python?

The Ctypes module is an invaluable tool within Python that lets you interface with C libraries. These are some of the benefits you derive from the use of the Ctypes module:

• The program becomes more efficient by utilizing the Ctypes module since functions in C run quicker than Python functions. A majority of Machine Learning libraries in Python employ this. They compile the functions within the Python Ctypes library and then call them within Python.
• Instead of reimplementing an entire C program in Python, you can utilize the existing C libraries, which will save you time and effort.
• The Ctypes module is memory-conservative. While Python takes care of the memory, certain applications require direct access to memory, which is managed by the Ctypes module using pointers and structures.
• If you’re dealing with hardware parts or embedded programs, Ctypes Python programming is great for managing low-level API and driver conversations. With Ctypes, your Internet-of-things projects will be better.

Best Practices for Using the Ctype Module in Python

1. Isolate and Test C Interactions: Keep ctypes calls in separate modules or Python wrappers, and test thoroughly to prevent bugs from affecting the rest of your Python code.
2. Understand the Ctypes Library Interface: Always study the C function signatures, data types, and calling conventions before using them with ctypes.
3. Use Proper Data Types: Match Python ctypes types exactly with the corresponding C types to avoid memory issues or crashes.
4. Handle Pointers and Memory Carefully: Allocate and free memory correctly, especially when dealing with pointers, buffers, or structs.
5. Check for Errors and Return Values: Always validate function return values and handle errors gracefully, as many C libraries signal problems this way.

Practical Examples

Let us look at a Python ctypes example using the C library, string data type, which is available in Python but not in C. In C, we will use char *p to implement a string.

C File – clibrary.c and compile it to clibrary.dll

Python File

Output:

Explanation: Here, we pass in the string data type in the Python script, but the C function from C library requires a char array. We have mentioned the data types using the argtypes function to avoid throwing an error.

Master Python and Elevate Your Tech Skills

Perfect for beginners looking to code with confidence.

Explore Program

Conclusion

The Ctypes module in Python is a powerful tool for integrating C functions into Python code, enabling developers to tap into the speed and efficiency of C while retaining the simplicity and ease of use of Python. Whether working with pre-existing shared libraries or building high-performance modules, Ctypes gives you the flexibility to call C functions, manage pointers, and manipulate memory directly. Through careful handling and proper grasp of both the C library and Python memory models, Ctypes makes developing strong and fast hybrid applications a possibility. By understanding the Ctypes module, you are allowing maximum advantages in harnessing the power of both Python and C.

To take your skills to the next level, check out this Python training course and gain hands-on experience. Also, prepare for job interviews with Python interview questions prepared by industry experts.
