Difference Between LAN, MAN, and WAN

In today’s world, learning the difference between LAN, MAN, and WAN is necessary for anyone who wants to work with computer networks. Some are built for speed and simplicity, others are for power. The LAN, MAN, and WAN will vary when it comes to their size, range, and functions. They are the technologies that form the foundation of data transfer, business operations, and communication between two parties. In this blog, you will learn what is LAN, MAN, and WAN along with the differences between them in detail.

Table of Contents:

• What is LAN?
• What is MAN?
• What is WAN?
• Differences Between LAN, MAN, and WAN
• Key Features of LAN, MAN, and WAN
  • LAN (Local Area Network)
  • MAN (Metropolitan Area Network)
  • WAN (Wide Area Network)
• Which Technologies Are Used in LAN, MAN, and WAN?
• Real-World Applications & Case Studies of LAN, MAN, and WAN
• Conclusion

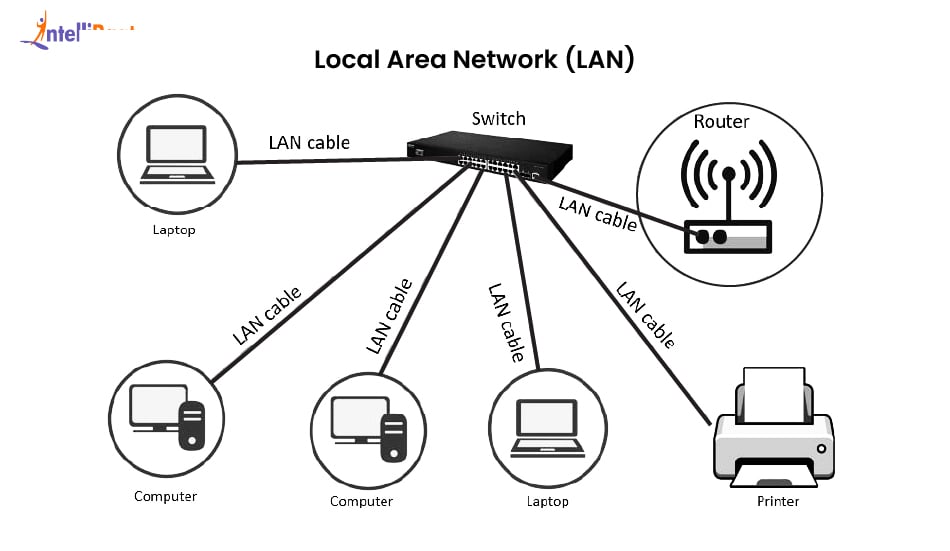

What is LAN?

A Local Area Network (LAN) is a computer network that connects devices within a limited area, for example, a home, school, or corporate office building. The LAN will always be managed and owned by the management of a single organisation. It will transfer the data at high speed and low latency. This can be very useful when you want to share files, printers, and internet access within a small organisation of users.

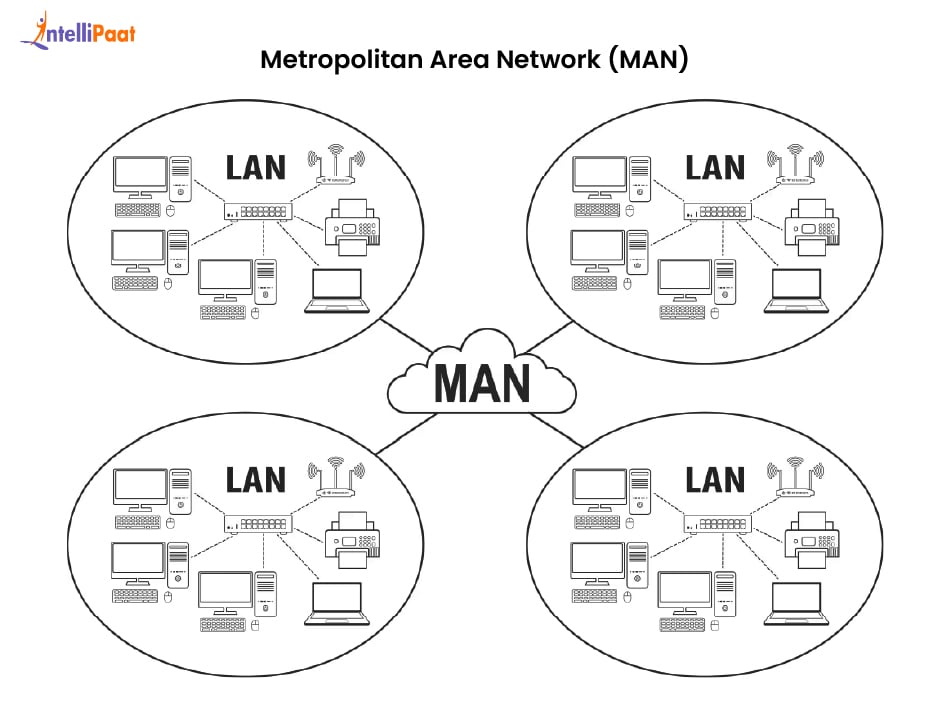

What is MAN?

A Metropolitan Area Network (MAN) is used to cover a larger area than a LAN but a smaller area than a WAN. It connects multiple LANs across a city, a large organisation, or a university campus. Large corporations, universities, and government offices often use MANs to link different departments or branches for easier communication. MANs commonly use fibre optic cables to provide high-speed connections.

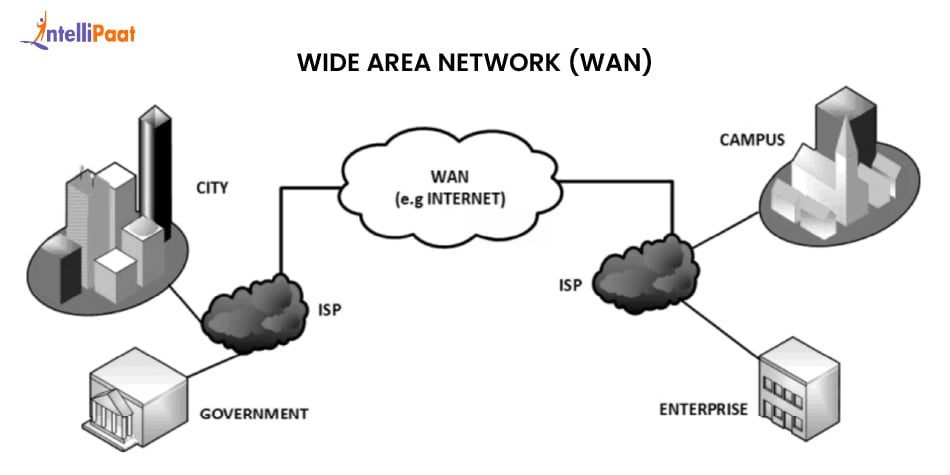

What is WAN?

A Wide Area Network (WAN) will cover a large geographic area, like many countries or continents together. The Internet is an example of a WAN. WANs will connect multiple LANs and MANs through public networks, lines, or satellite links. The WAN is essential for global communication and large-scale business operations. Because of the lower data transfer speed, the WANs usually have high latency compared to LANs and MANs. It requires advanced security connections and robust hardware that always collaborate with internet service providers.

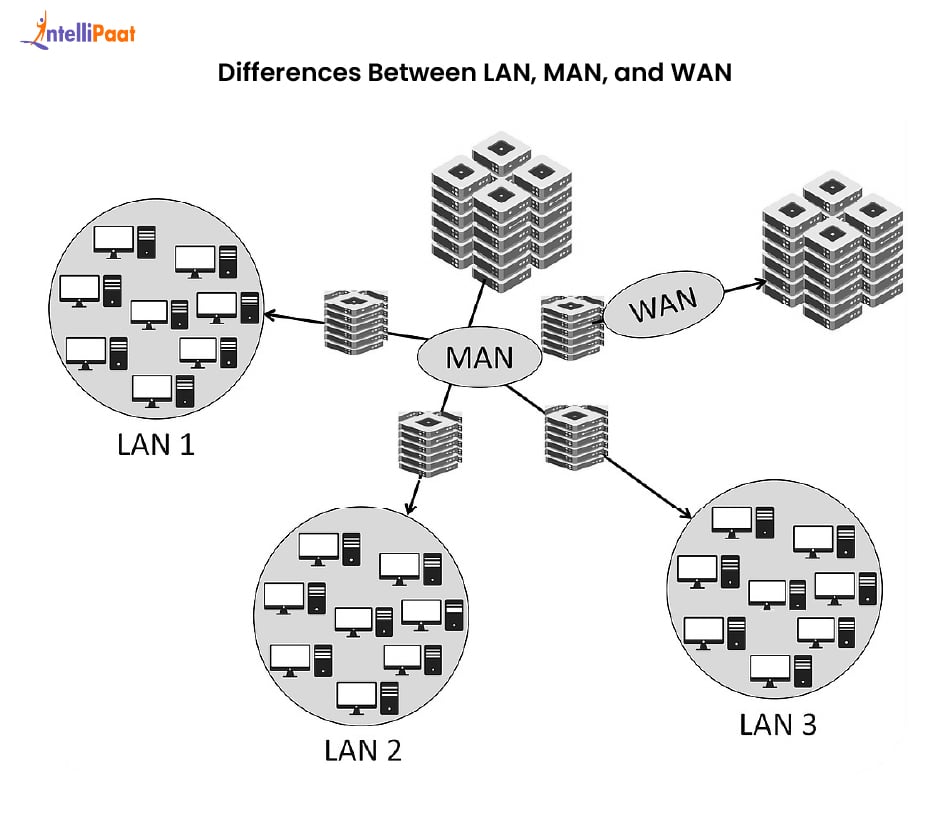

Differences Between LAN, MAN, and WAN

Key Features of LAN, MAN, and WAN

Understanding the difference between LAN, MAN, and WAN becomes easier when you know their key features.

LAN (Local Area Network)

1. High Speed: High-speed connection means fast data transfers, usually faster than 1 Gbps.
2. Low Cost: Relatively cheap to install, with lower maintenance costs, making it especially useful in small environments.
3. Easy Setup: Quick and simple to configure, with minimal infrastructure to manage.
4. Limited Range: Covers only a small area, such as a home, school, or office.

MAN (Metropolitan Area Network)

1. City-Wide Coverage: Generally connects a number of local area networks across a city or large campus, but still on a single administrative domain.
2. Higher Capacity: Creates a network that supports more users and/or more data traffic than a local area network.
3. Moderate Speed: Faster than a Wide Area Network, but usually slower than a local area network.
4. Shared Control: Sometimes a local area network is managed by one organisation, but other times, a network of this type is jointly managed by a number of organisations.

WAN (Wide Area Network)

1. Global Reach: Similar to metropolitan area networks but capable of connecting locations much farther apart, spanning regions, countries, or even continents.
2. Complex Infrastructure: Relies on public networks such as the Internet, leased lines, or satellites, since the networks are often not owned or directly managed by the organisations involved.
3. Scalable: Can expand geographically as the organisation grows, from just a few sites to thousands across the globe.
4. Slower Speeds: Typically experiences higher latency and slower speeds compared to local or metropolitan area networks due to the vast distances covered.

Which Technologies Are Used in LAN, MAN, and WAN?

Each of these types of data networking technology plays a crucial role in how data is transmitted, managed, and secured, from a local area network to networks spanning a city, state, region, country, or even a continent.

The decision of which networking technology to implement for your organization will depend on geographic, cost, speed, and reliability issues, and other factors.

Real-World Applications & Case Studies of LAN, MAN, and WAN

Below are the real-world applications of LAN, MAN, and WAN.

Real-World Application for LAN

Office IT network: A small company with 20 employees uses a LAN to connect computers, printers, and servers within the same office building. This setup allows employees to share files, send print jobs, and access the internet simultaneously with minimal delay. Managed internally, the network offers high speed and strong security without relying on external infrastructure or security agencies, and avoids the drawbacks of multiple external connections that could reduce performance.

Real-World Application for MAN

University campus network: A large university uses a MAN to connect buildings such as departments, libraries, and administrative offices spread across the city. This setup ensures full access to central databases, student records, and communication systems in all locations, allowing students and faculty to stay connected and work seamlessly across the entire campus.

Real-World Application for WAN

Global tech company – A worldwide technology company uses a WAN to connect its offices in New York, London, Tokyo, and Sydney. This network enables employees to collaborate through video conferencing, cloud platforms, and shared development environments. It also ensures secure, consistent communication across all locations, while maintaining reliable connectivity despite the vast distances between sites.

Conclusion

Understanding the differences between LAN, MAN, and WAN is essential for anyone working with networks. Each has a specific purpose. A LAN provides high speed and simplicity within a small area, a MAN extends connectivity across a city or municipality, and a WAN enables communication on a global scale. Choosing the right network is not only a technical matter but also a strategic business decision shaped by performance, security, and future growth. From a single office to a multinational enterprise, the right infrastructure ensures reliable communication and supports organisational success.
