What is Fuzzy Logic in AI?

Have you ever asked a computer, “Is it hot outside?” With conventional logic, the options are either yes or no; there are no grey areas. But in reality, humans routinely engage in maybes like: “It is kind of hot” or “somewhat chilly”.

That’s what people mean when they talk about fuzzy logic: the ability for AI to think in shades of grey, instead of just black and white. Fuzzy logic operates on degrees of truth, or allowing something to be partly true and partly false at the same time.

Fuzzy logic enables applications ranging from smart thermostats and self-driving cars to AI systems that make decisions with flexibility, context awareness, and human-like common sense. This article will discuss the building principles of fuzzy logic and its foundational concepts, architecture, and common applications of AI in the following order:

Table of Contents:

• What is Fuzzy Logic
• Crisp Logic vs Fuzzy Logic
• Key Concepts in Fuzzy Logic
• Architecture of a Fuzzy Logic System
• Implementing Fuzzy Logic in Artificial Intelligence Systems: A Step-by-Step Guide
• Fuzzy Logic Python Example
• Applications of Fuzzy Logic
• Advantages of Fuzzy Logic
• Limitations of Fuzzy Logic

What is Fuzzy Logic

“Fuzzy logic in AI is a reasoning method that handles uncertainty by working with degrees of truth instead of binary true or false values.”

Fuzzy logic was developed to overcome the limitations of crisp logic, which opens the way for computers to think in terms that aren’t just yes or no. It was introduced in the 1960s by Lotfi Zadeh as a way to deal with situations where information is uncertain, vague, or somewhere in between clear answers. To understand Fuzzy logic better, let’s first understand crisp logic with the help of an example.

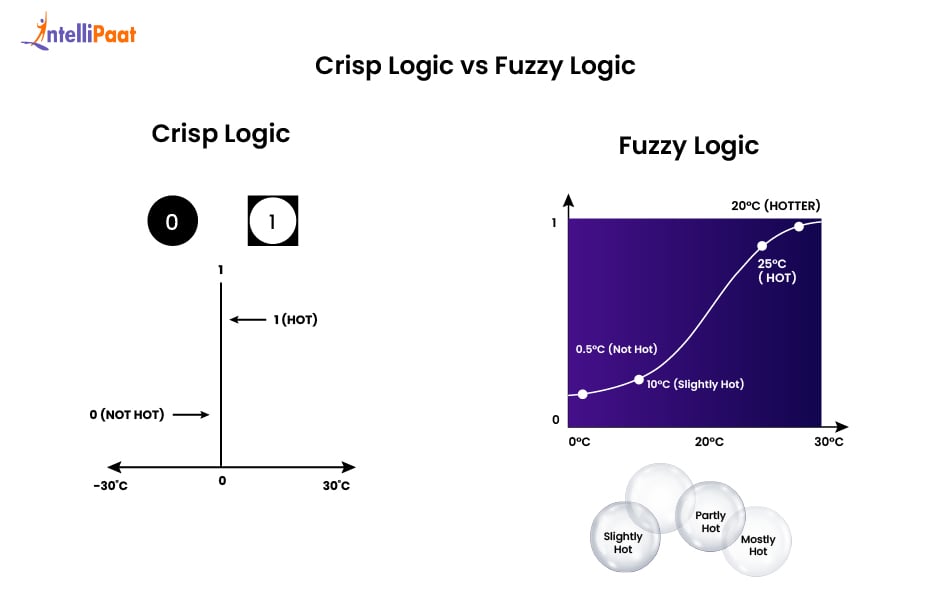

Crisp Logic vs Fuzzy Logic

In standard (crisp) logic, something is either 1 (true) or 0 (false). For example, if “hot” means 30°C or higher:

• 31°C → true (hot)
• 29°C → false (not hot)

That works for simple cases, but reality is rarely that clean.

However, Fuzzy logic allows values anywhere between 0 and 1. So, 29°C could be 0.7 hot and 0.3 not hot. This allows systems to work with “partly true” information, more closely aligning with how humans think.

In AI, fuzzy logic is used in:

• Decision-making where inputs are unclear, like “slightly risky” or “fairly busy.”
• Control systems that need gradual adjustments — thermostats, washing machines, braking systems.
• Complex AI models that deal with overlapping categories.

Key Concepts in Fuzzy Logic

1. Fuzzy Sets: A fuzzy set is a set that does not have a sharp boundary. They do not have a crisp membership. Membership of elements in a fuzzy set is governed by a membership function that assigns a degree of membership to each element, ranging between 0 (membership does not occur) and 1 (Max membership occurs).
2. Membership Functions: The membership function is how each point in the input space is converted to a membership value (degree of membership) ranging from 0 to 1. There are common membership functions, including but not limited to triangular, trapezoidal, and Gaussian membership functions.
3. Linguistic Variables: These are variables that are represented by words or sentences from natural language instead of numerical values. For example, temperature’s linguistic variables are “hot”, “warm”, and “cold”.
4. Fuzzy Rules: Fuzzy rules are if-then statements that govern the basic decision-making of fuzzy systems. For example, “If the temperature is high, then the fan speed becomes high”.
5. Fuzzy Inference System (FIS): A fuzzy inference system (FIS) maps inputs to outputs using the theory of fuzzy set theory. It consists of fuzzification, rule evaluation, and defuzzification.

Unlock Your Career in AI & ML with Intellipaat's Industry-Leading Courses

Master Core AI & ML Skills through Hands-On Projects, Live Sessions, and Certification from Top Institutions

Explore Program

Architecture of a Fuzzy Logic System

A Fuzzy Logic system consists of four key components that work together to process data that is imprecise or uncertain:

First, there is a fuzzification module, which takes exact inputs and translates them to fuzzy terms. For example, instead of “the temperature is 30°C,” it could say “the temperature is partly warm and partly hot.”

Next, this information is placed in the knowledge base. The knowledge base holds all the rules and membership functions. The rules are expressed as simple IF-THEN statements, for example, “IF temperature is hot, THEN increase fan speed.”

Third, there is the inference engine; this is the “decision-making” portion of the system. It checks to see which of the rules apply to the fuzzified inputs and how strongly they may be considered.

Finally, the fuzzy results are taken by the defuzzification module, which translates the fuzzy outputs back to a precise, real-world action; for example, instead of saying “high fan speed,” it will output that the fan speed is “set to 73%,” etc.

Thus, the flow is exact input → fuzzification → apply rules and reasoning → fuzzy output → defuzzification → exact output.

Implementing Fuzzy Logic in Artificial Intelligence Systems: A Step-by-Step Guide

1) Frame the problem (inputs → output)

• State your goal in plain language.
• Pick some crisp inputs and only one crisp output.
• Example: “Set fan speed based on temperature and humidity.”
• Inputs: temperature (°C), humidity (%)
• Output: fan speed (%)

2) Define linguistic variables & ranges

• Declare a universe of discourse (min/max) for each variable.
• Declare the human-friendly linguistic terms.
• Example:
• temperature: {cool, warm, hot} in [0, 50]°C
• humidity: {dry, normal, humid} in [0, 100]%
• fan speed: {low, medium, high} in [0, 100]%

3) Choose membership functions (MFs)

• Common shapes: triangular, trapezoidal, and Gaussian.
• Start simple (triangles/trapezoids) so you can tune the system easily.
• Allow enough overlap that the transitions are smooth.

4) Build the rule base (IF–THEN)

• Write compact, readable rules that reflect domain know-how.
• Example (Mamdani style):

IF temperature is hot OR humidity is humid THEN fan speed is high

IF temperature is warm AND humidity is normal THEN fan speed is medium

IF temperature is cool AND humidity is dry THEN fan speed is low

5) Pick an inference method

• Mamdani: intuitive, fuzzy output sets (great for control).
• Sugeno: crisp, weighted linear outputs (great for optimization/ANFIS).

6) Implement fuzzification → inference → aggregation → defuzzification

• Fuzzify crisp inputs with degrees (0–1).
• Evaluate rules (AND/OR. MIN/MAX or PRODUCT/SUM).
• Aggregate the rule outputs.
• Defuzzify to a single crisp action (e.g., centroid).

7) Tune

• Adjust MF shapes, ranges, and rule weights.
• Use actual data or expert feedback.
• Then, validate using held-out scenarios by measuring errors against a baseline.

8) Integrate with the AI system

• Wrap the fuzzy controller as a module/microservice.
• Add monitoring (e.g., input ranges, saturation rates, and output distributions).
• Version your rule base and MFs.

Fuzzy Logic Python Example

# -------------------------------
# Simple Fuzzy Logic System in Python
# Temperature (input) → Fan Speed (output)
# -------------------------------

# Triangular membership function
def triangular(x, a, b, c):
    """
    Triangular membership function.
    a = left point (0 membership)
    b = peak (1 membership)
    c = right point (0 membership)
    """
    if x = c:
        return 0.0
    elif a < x <= b:
        return (x - a) / (b - a)   # rising slope
    elif b < x < c:
        return (c - x) / (c - b)   # falling slope
    else:
        return 0.0

# -------------------------------
# 1. Define Input Membership Functions (Temperature)
# -------------------------------
def temp_cool(x): return triangular(x, 0, 15, 25)   # Cool range
def temp_warm(x): return triangular(x, 20, 25, 35) # Warm range
def temp_hot(x):  return triangular(x, 30, 40, 50) # Hot range


# -------------------------------
# 2. Define Output Membership Functions (Fan Speed)
# -------------------------------
# (Not used directly for fuzzification, but conceptually defined)
def fan_low(x):    return triangular(x, 0, 20, 40)
def fan_medium(x): return triangular(x, 30, 50, 70)
def fan_high(x):   return triangular(x, 60, 80, 100)


# -------------------------------
# 3. Fuzzy Inference System
# -------------------------------
def fuzzy_fan_speed(temp):
    """
    Given a crisp temperature value, compute a crisp fan speed using fuzzy rules.
    """

    # Step 1: Fuzzification (get membership degrees for input)
    cool = temp_cool(temp)   # degree of being "cool"
    warm = temp_warm(temp)   # degree of being "warm"
    hot  = temp_hot(temp)    # degree of being "hot"

    # Step 2: Apply Rules
    # Rule 1: IF temp is cool → fan is low
    # Rule 2: IF temp is warm → fan is medium
    # Rule 3: IF temp is hot  → fan is high
    low    = cool
    medium = warm
    high   = hot

    # Step 3: Defuzzification (Weighted Average method)
    # Representative crisp values: 20 (low), 50 (medium), 80 (high)
    numerator   = (low*20 + medium*50 + high*80)
    denominator = (low + medium + high)

    # Avoid division by zero
    return numerator / denominator if denominator != 0 else 0


# -------------------------------
# 4. Test the System
# -------------------------------
print("Fan speed at 20°C:", fuzzy_fan_speed(20))  # Expect closer to low
print("Fan speed at 30°C:", fuzzy_fan_speed(30))  # Expect closer to medium
print("Fan speed at 40°C:", fuzzy_fan_speed(40))  # Expect closer to high)

Output:
Fan speed at 20°C: 20.0
Fan speed at 30°C: 50.0
Fan speed at 40°C: 80.0

Applications of Fuzzy Logic

1. It is utilized in the aerospace industry for altitude control in spacecraft and satellites.
2. It has been used in the automotive industry for speed control and traffic control.
3. It is utilized for decision-support systems and personal evaluations in large corporations.
4. It is used for measuring thickness or pH control in the chemical industry. Additionally, it is used for drying and chemical distillation processes.
5. Fuzzy logic is utilized in Natural language processing and many applications of Artificial Intelligence.
6. Fuzzy Theory is used in modern control systems, such as expert systems.
7. Fuzzy Logic is combined with Neural Networks because it reflects the way a human would make decisions, only much quicker. It does it by aggregating data and converting it to more significant data through partial truths as Fuzzy sets.

Explore the key differences between Perplexity AI and ChatGPT to choose the right AI tool for your needs!

Advantages of Fuzzy Logic

1. Handles Uncertainty – It works well with vague, imprecise, or incomplete information.
2. Closer to Human Thinking – It allows the reasoning in terms of “slightly hot” or “very cold”, the way humans reason.
3. Flexibility – It can model complex systems where no exact mathematical equations exist.
4. Wide Applications – It is used in manufacturing as well as appliances (washing machines, ACs), in control systems, in decision-making, and in AI.
5. Simple to Understand – Its rule-based structure (IF–THEN) makes it intuitive.

Limitations of Fuzzy Logic

1. Rule Explosion – Complex systems may require too many rules, making them hard to manage.
2. Not Always Precise – The output of fuzzy is always approximate; therefore, it is not valuable in applications requiring exact precision.
3. Depends on Expert Knowledge –The information needed to define the membership functions and the rules is completely reliant upon knowledge by domain experts.
4. Performance Issues – For large-scale systems, fuzzy logic can become computationally expensive if evaluated on the basis of performance.
5. No Learning Ability – Fuzzy logic does not learn; it is only when fuzzy is generally integrated with AI/ML that fuzzy can perform adaptive learning.

Conclusion

Fuzzy logic is a very powerful and effective tool available to artificial intelligence (AI) to handle uncertainty, shape human reasoning, and make decisions in complex and dynamic environments. Fuzzy logic has multiple applications in AI because it can be applied in diverse areas such as control systems, expert systems, image processing, decision support systems, natural language processing, robotics, and several industrial automation operations and design areas. Allowing AI systems to be used more flexibly, robustly, and effectively to intervene in real-world problems.

AI will continue to advance, and the potential to mix fuzzy logic with other existing AI technologies, such as neural networks and genetic algorithms, will provide more robust and advanced adjustments to future intelligent systems and services, improving the overall quality of technology.
